LED Strip Light

10mm RGBW LED strip 4 in 1 DC12V 24V analog signal 5050 tape light

Model NO. L-S-RGBW

Part No.: L-S-RGBW-10060
PCB width (mm): 10mm
PCB color: black/white
IC chip: no IC, analog signal
Lighting Source: RGBW SMD5050 LED CHIP
Operate Voltage: DC12V/24V
Wattage: 19.2W/m
Beam Angel: 120 degree
Standard length: 5m
Waterproof Grade: IP30/IP65/IP67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃

Quantity

Product Description

1. DC12V/24V analog signal RGBW LED strip.

2. 60 LEDs/m, every 3 LEDs(DC12V)/6 LEDs(DC24V) can be cut.

3. Can be cut or joined at each copper tab.

4. 3M adhesive double side tape on the rear.

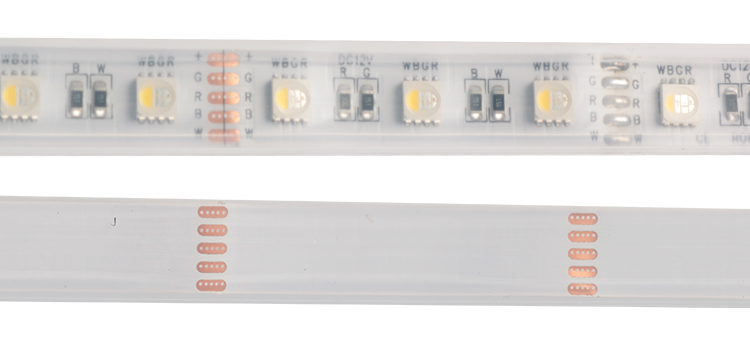

5. Non-waterproof, waterproof ip65 with silicone tube or silicone glues, waterproof ip67 with silicone tube and glues.

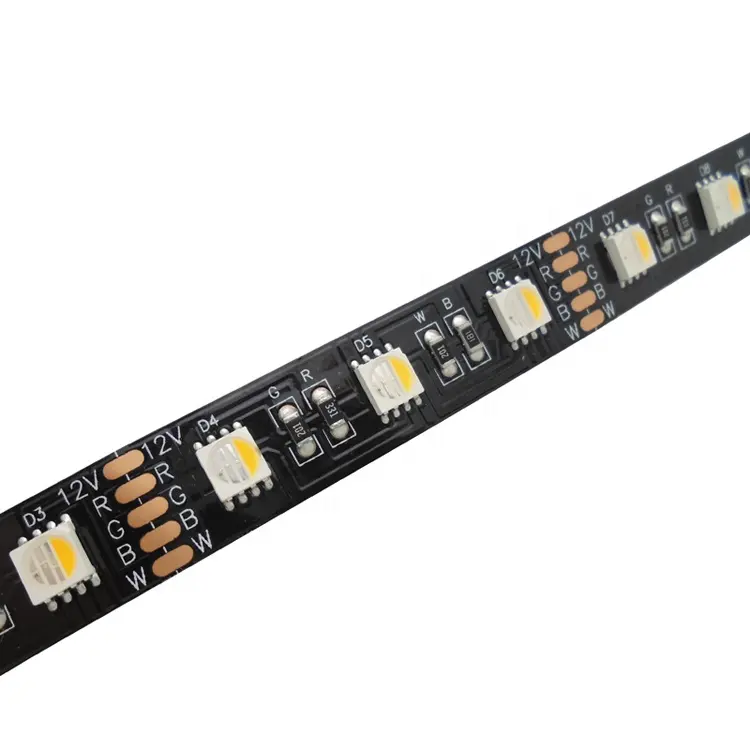

6. White PCB or black PCB, usually 2 Oz; can do 3 Oz, to offer more durability, better heat dissipation and reduced voltage drop.

7. RGB+W 4 in 1 LED strip, there is white chip in the LEDs, the white of RGBW can be warm white(2800-3200K), neutral white(4000-4500K) or cool white(6000-6500K).

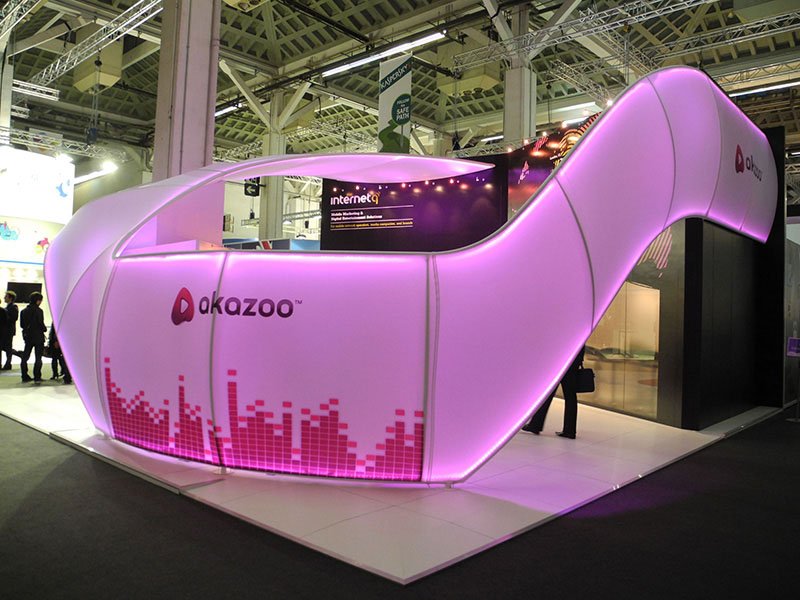

7. Suitable for Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display. etc.
