LED Strip Light

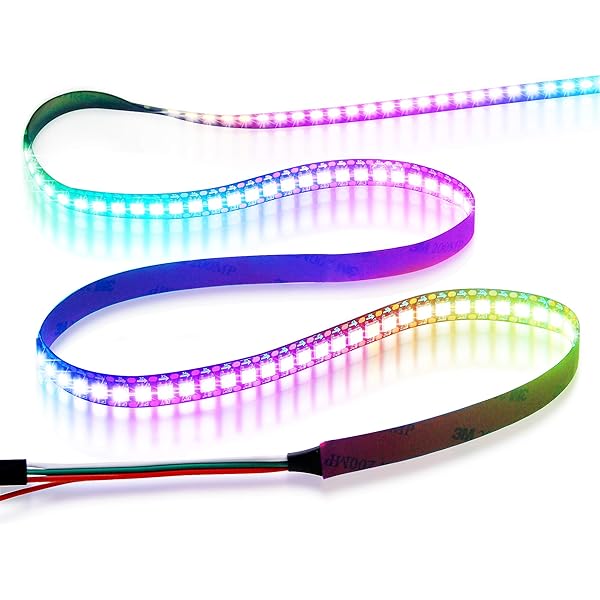

12mm SK6812 WS2812b programmable 144 LEDs 5V pixel LED strips
L-S-SK6812-RGB-100144
Part NO: L-S-SK6812-RGB-100144
PCB width (mm): 12mm
PCB color: black/white
IC chip: SK6812/WS2811
Lighting Source: RGB SMD 5050 LED CHIP
Operate Voltage: DC5V
Wattage: 43.2W
Beam Angel: 120 degree
Standard length: 1m

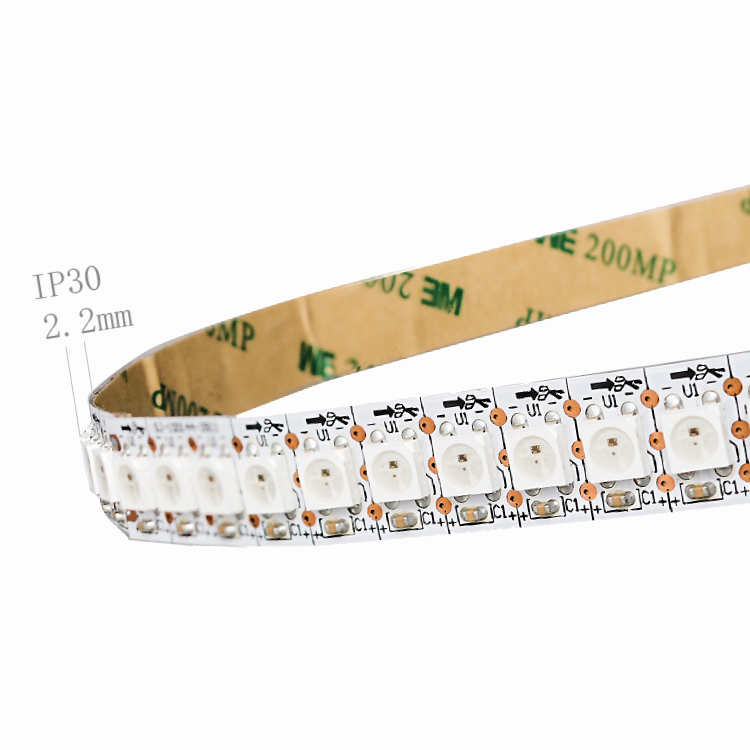

Waterproof Grade: IP30/65/67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
PCB width (mm): 12mm
PCB color: black/white
IC chip: SK6812/WS2811
Lighting Source: RGB SMD 5050 LED CHIP
Operate Voltage: DC5V
Wattage: 43.2W
Beam Angel: 120 degree
Standard length: 1m
Waterproof Grade: IP30/65/67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1. DC5V SK6812/WS2811 addressable RGB pixel strip.
2. 144 LEDs/m, 144 pixels/m, 1 LEDs control per section.
3. Can be cut or joined at each copper tab.
4. 3M adhesive double side tape on the rear.

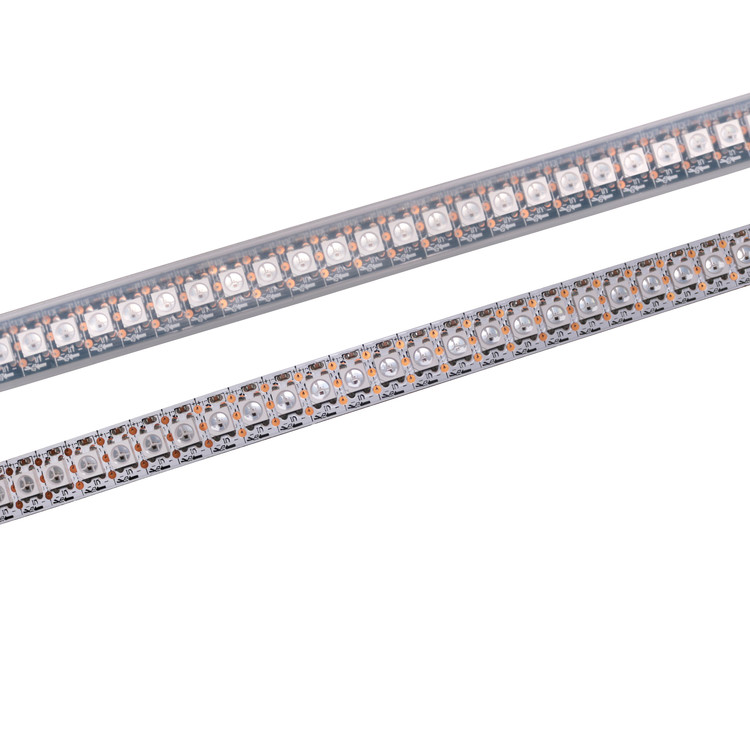

5. Non-waterproof, waterproof ip65 with silicone tube or silicone glues, waterproof ip67 with silicone tube and glues.
6. White PCB or black PCB, usually 2 Oz; can do 3 Oz, to offer more durability, better heat dissipation and reduced voltage drop.

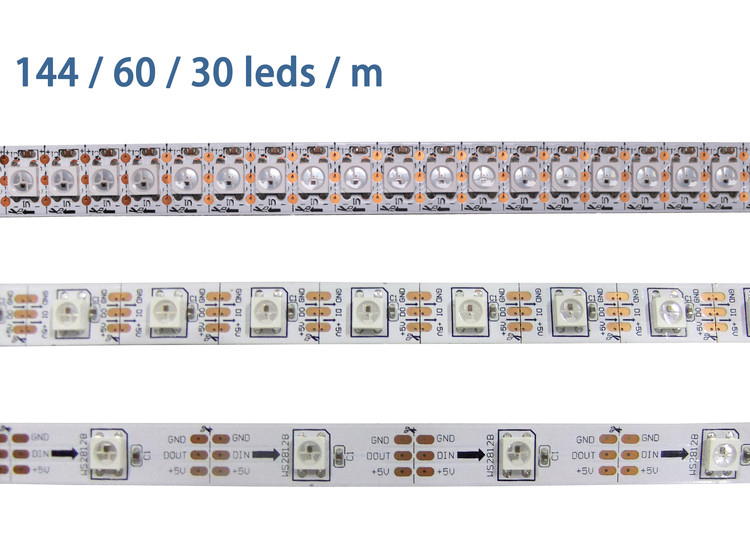

7. 30 LEDs/m, 60 LEDs/m and 144 LEDs/m for option.
8. Suitable for stage, entertainment and architectural applications.
Product details
Applications

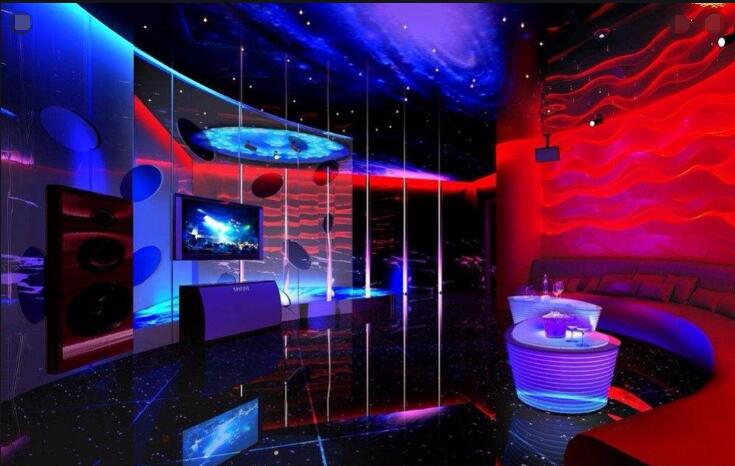

They are awesome for Studios, Leisure, Residential, Hospitality, Events & Exhibitions, Retail Display, etc.
