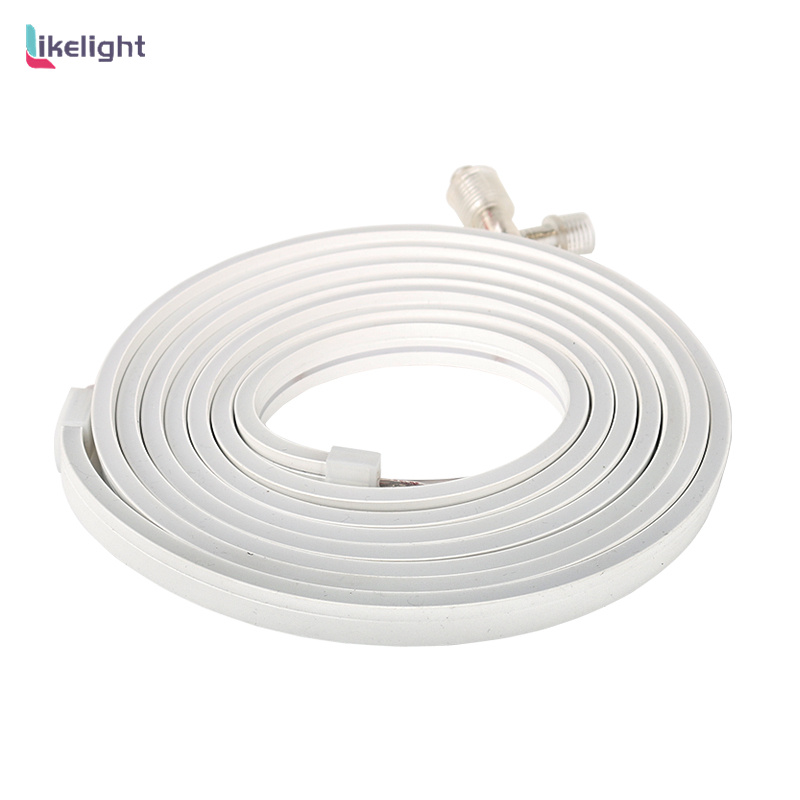

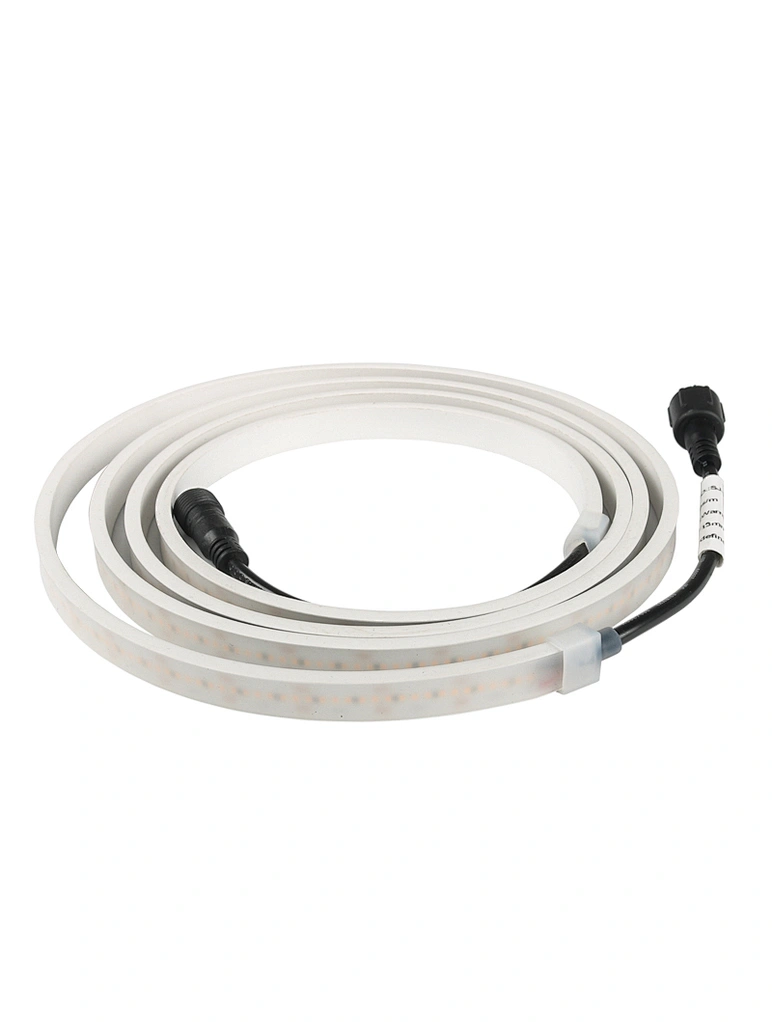

13x05mm Waterproof LED Neon Flex Tube – RGB / Single Color / Pixel Strip
Product Overview
The13.05 mm Waterproof LED Neon Flex Tube is a flexible, high-performance LED lighting
solution designed for both interior and exterior lighting applications. Featuring single color, RGB
and addressable pixel options, this neon flex tube delivers consistent, smooth illumination with
exceptional durability. Ideal for signage, architectural accents, commercial lighting and decorative
lighting, it outperforms traditional neon with improved energy efficiency and enhanced design flexibility.
Key Features
Durable Waterproof Design – Rated IP66 for outdoor and indoor use, resistant to rain, dust and harsh environments.
Multiple Light Modes – Available in single color,RGBandRGB pixel configurations with customizable pixel pitch.
Flexible & Customizable – Silicone-based neon flex can be bent, shaped and cut to fit bespoke lighting designs.
IC Control Options – Compatible with UCS2904, DMX512, UCS1903, WS2815, SK6812 and other control chips for advanced lighting effects.
Wide Voltage Support – Works with DC 5V / 12V / 24V depending on project requirements.
Long Lifespan & Reliability – High-quality LED chips with up to 50,000 hours operating life.

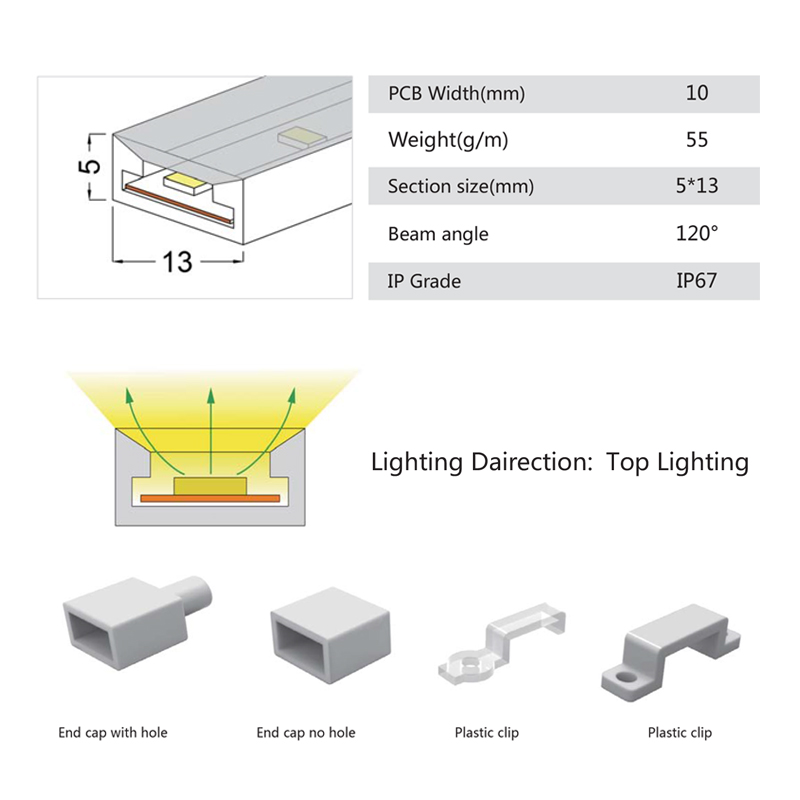

| Attribute | Details |
|---|---|
| Model | L-N1305 |
| Diameter | 13 mm × 5 mm |
| LED Chips | RGB/RGBW SMD 3535 or 5050 |
| Beam Angle | 120° |
| Control Chips | UCS2904 / DMX512 / UCS1903 / WS2815 / SK6812 |
| Voltage | DC 5V / 12V / 24V |
| Length | 0.5 M / 1 M / 1.5 M / 2 M / 3 M / 4 M (Custom) |
| Waterproof Rating | IP66 |
| Operating Temp | −20 °C to +60 °C |
| Storage Temp | −30 °C to +80 °C |
| Lifetime | Up to 50,000 Hours |
This LED neon flex tube is engineered for diverse lighting projects, including:
✔ Architectural outlines and facade lighting
✔ Commercial signs and channel letters
✔ Bars, clubs, hotels and entertainment venues
✔ Retail store displays & feature walls
✔ Event and exhibition lighting
✔ Decorative interior & exterior accents
Frequently Asked Questions (FAQ)
Q: What makes this neon flex tube waterproof?
A: The IP66 silicone housing and waterproof connectors ensure protection from water, dust and outdoor conditions.
Q: Can I use this for large outdoor signs?
A: Yes — with proper voltage selection (e.g., DC 12V or 24V) and mounting supports, it’s ideal for outdoor channel letters and signage.
Q: What control systems are supported?
A: This product supports common controllers like DMX512, UCS series, WS2815, and many RGB pixel controllers for dynamic effects.
Q: Is custom length available?
A: Yes — custom cut lengths and pixel pitch can be tailored to your project requirements.
