LED Neon Light

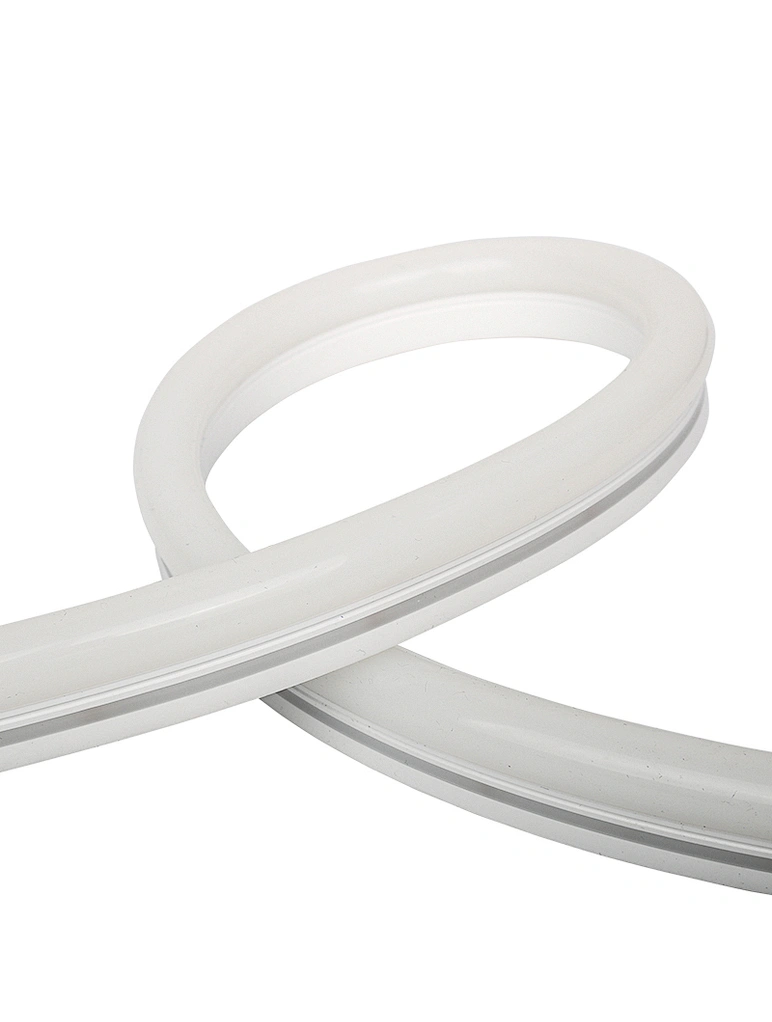

23*10mm 270degree lighting digital waterproof led neon flex tube light
L-N2310
Part NO： L-N2310
Lighting Source: RGB/ RGBW SMD 2835/ 3535/ 5050 LED CHIP
Beam Angel :270 degree
Operate Voltage : DC5V/ 12/ 24V optional
Diameter (mm) : 23mm*12mm
Pixel pitch : customizable
IC chip: UCS2904 / DMX512 / UCS1903 / WS2815 / SK6812
Color: single color, RGB, RGB pixel, RGBW pixel
Length: 0.5M, 1M, 1.5M, 2M, 3M, 4M customize available
Waterproof Grade: IP66
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Lighting Source: RGB/ RGBW SMD 2835/ 3535/ 5050 LED CHIP
Beam Angel :270 degree
Operate Voltage : DC5V/ 12/ 24V optional
Diameter (mm) : 23mm*12mm
Pixel pitch : customizable
IC chip: UCS2904 / DMX512 / UCS1903 / WS2815 / SK6812
Color: single color, RGB, RGB pixel, RGBW pixel
Length: 0.5M, 1M, 1.5M, 2M, 3M, 4M customize available
Waterproof Grade: IP66
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1. Size 23mm*10mm neon flex led, 270 degree lighting led Neon flex tube light for indoor outdoor lighting projects.
2. Flexible led strip inserted in neon flex tube, PCB width allow 10mm , length customize available.
3. Can be RGB, RGBW, or single color, with or without IC control, voltage : DC5V/ 12V/ 24V.
4. W can be customized: warm white 2700-3200K, neutral white 4000-4500K, cool white : 6000-6500K.
5. The connectors are waterproof, the Male with Pin is Input. Canbe PVC plugs or M12 metal plugs.
6. Controller System:SD controller , DMX controller , Artnet and so on.

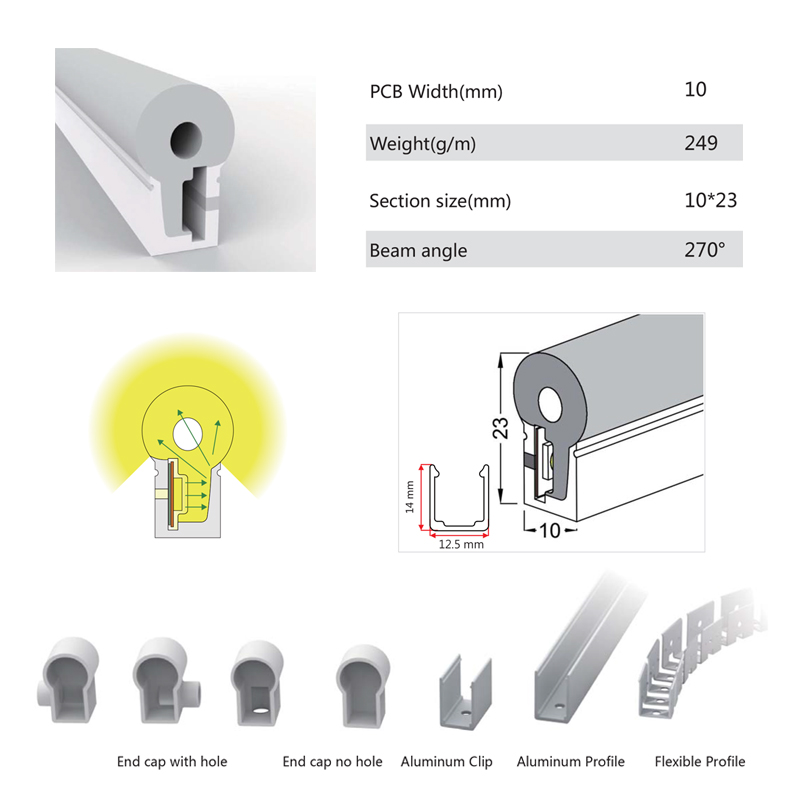

Dimensions

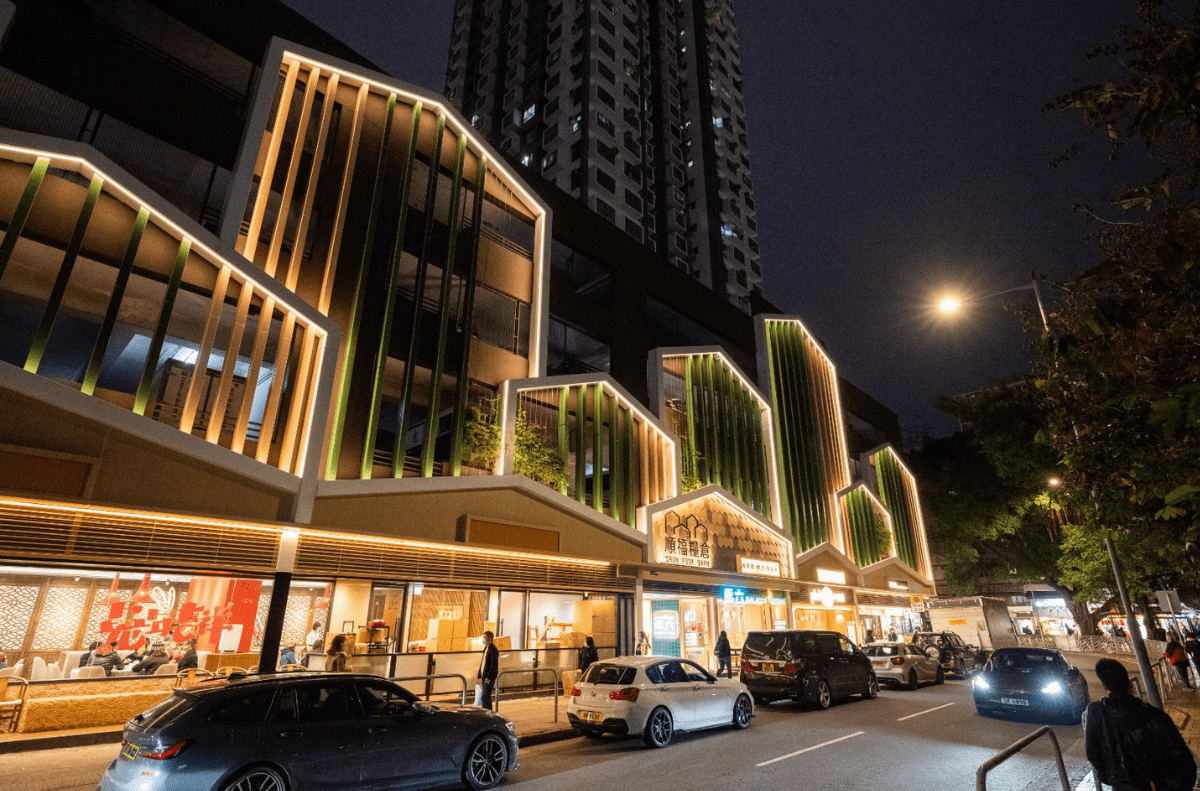

Applications
