350W Meanwell LRS 5V 12V 24V Switching Power Supply For Led Strip CCTV Camera

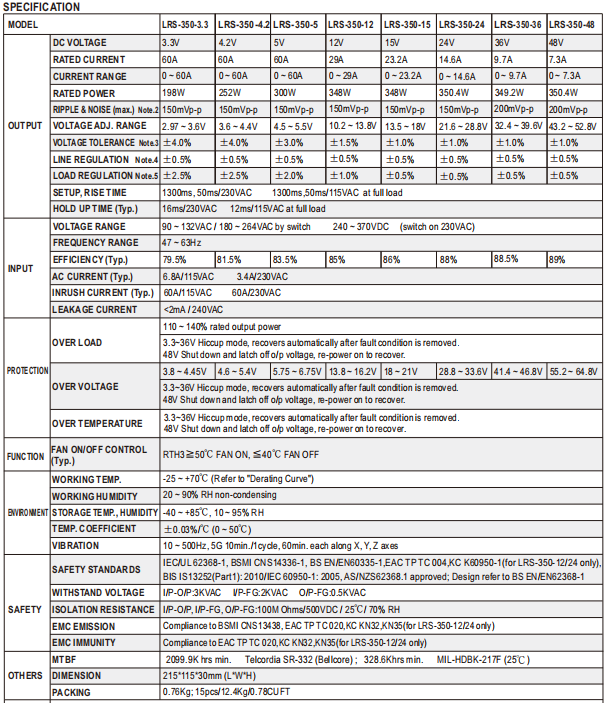

• 1. Unless otherwise specified, all specifications are measured at an input of 230VAC, rated load and ambient temperature of 25 ° C.

• 2. Ripple and noise measurement method: a 12"twisted pair wire is used, while the terminal is connected in parallel with 0.1uf and 47uf capacitors, and the measurement is performed at 20MHZ bandwidth.

• 3. Accuracy: including setting error, linear adjustment rate and load adjustment rate.

• 4. Linear adjustment rate measurement method: under rated load, from low voltage to high voltage test.

• 5. Load adjustment rate measurement method: from 0% to 100% rated load.

• 6. When starting, it is measured in the cold start state, and rapid and frequent switching may cause the same increase in starting.

• 7. For 12V-48V models, 150% of the peak load capacity is based on up to 1 second. If the peak load lasts for more than 1 second, the LRS.350 will enter burp mode. Mindfulness is restored once the rated current is restored.

• 8. When the operating altitude is higher than 2000 meters (6500 mail), the operating ring temperature is lowered by 5℃/1000 meters.

• 9. This power supply does not meet the harmonic current requirements specified in EN61000-3-2.

Do not use this power supply under the following conditions :a) The terminal device is connected to a common main power supply with a higher rated nominal voltage of 220vac, and b) the power supply is:. It is installed in the terminal equipment with an average continuous input power greater than 75WW and is part of the lighting system
Exceptions:
The power supply used in the following terminal equipment does not need to meet the requirements of EN61000-3-2 for specialized equipment with a total face constant input power greater than 1000N :b) symmetrical controlled heating elements with a face constant power less than or equal to 200N.
