LED Chain Light
35mm Crystal RGB Pixel Ball Flexible Soft LED 3D Point Light Source
L-C354-GS8206
Part NO： L-C354-GS8206
Diameter (mm) : 35 mm
IC chip: GS8206
Lighting Source: 4 RGB SMD 3535 LED CHIP
Operate Voltage : DC12 optional
Wattage : 1.44W/pc
Beam Angel :360 degree
Length: standard 20pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Diameter (mm) : 35 mm
IC chip: GS8206
Lighting Source: 4 RGB SMD 3535 LED CHIP
Operate Voltage : DC12 optional
Wattage : 1.44W/pc
Beam Angel :360 degree
Length: standard 20pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1.Control : Seperate control, 1 PCS LED pixel light and 1IC (GS8206)
2. Waterproof : IP68, with silicone waterproof protection.
3. Installation: Aluminum profil or screw , the best drill holes of profil about 30-31mm.
4. Power supply: 12v power must be used to power the pixel.
5. Connectors :4PIN PVC waterproof female/male connector, DAT A, DAT B, DC12V+, GND-, each led pixel is separate, you can easily connect them one by one through the male female connector.
6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful
7. SMD3535 rgb led pixel module can achieve full color water, chasing, scanning and other effects.
8. Suitable for 3D modeling lights, net red hall, KTV decoration, supermarket 3D screen, hotel decoration, APP dot matrix 3D interactive screen.

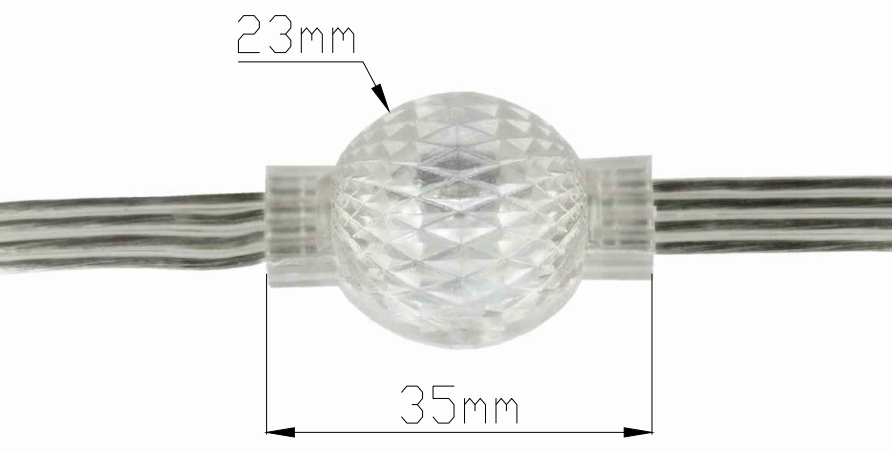

Dimensions

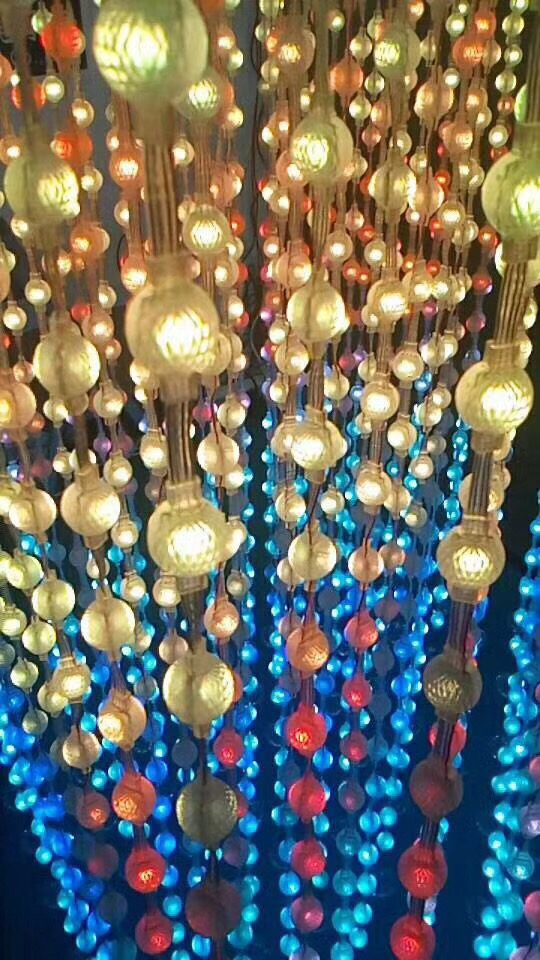

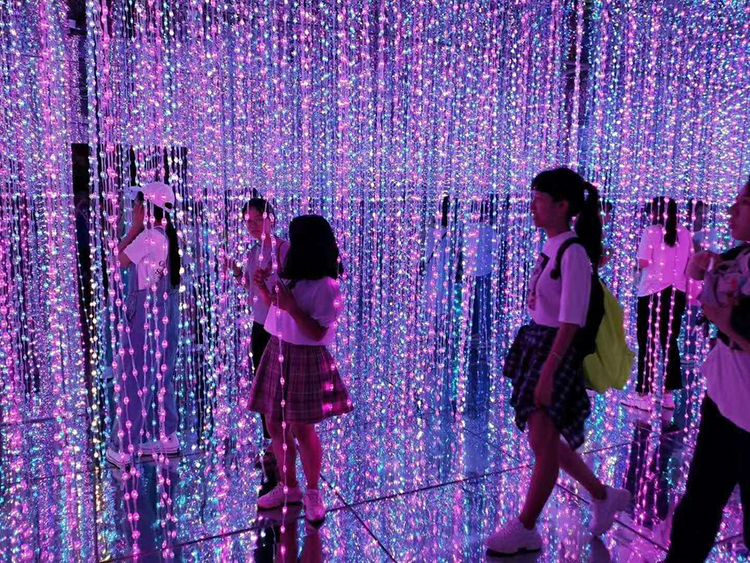

Applications
