40mm RGBW UCS2904 IP67 Waterproof Permanent Christmas Lights LED Pixel Light Aluminum Track
L-C-D406
Lighting Source:6pcs SMD5050 RGBW LED
Operate Voltage:DC24V
Consumption Watt/PCS:1.92W (max)
Cover Shape:Transparent cover
IC Chip:UCS2904
Size:40mm
Lifetime:≥50000H
Waterproof Grade:IP20/IP67
Working Temperature:-40°C - 80°C
Storage Temperature:-10°C - 50°C
Operate Voltage:DC24V
Consumption Watt/PCS:1.92W (max)
Cover Shape:Transparent cover
IC Chip:UCS2904
Size:40mm
Lifetime:≥50000H
Waterproof Grade:IP20/IP67
Working Temperature:-40°C - 80°C
Storage Temperature:-10°C - 50°C
Quantity
Product Feature
1. Separate control :6PCS LED pixel light and 1IC (UCS2904)
2. Waterproof : IP67 ,with silicone glue injection
3. Power supply: 24V DC power must be used to power the pixel.Do not use a power supply higher than 24V, otherwise the whole pixel will be damaged.
4. Cover : 30mm irregular transparent cover can be selected
5. Connectors : 4PIN PVC male and female waterproof connector, DAT, DC24V+, GND- 7.Standard length is 20 lights per chain with 12cm spacing , length customized is acceptable
6. It has the characteristics of high brightness, low power consumption, long life, low attenuation and rich color.
7. Different installation methods can constitute different dynamic effects of different color characteristics and designs..

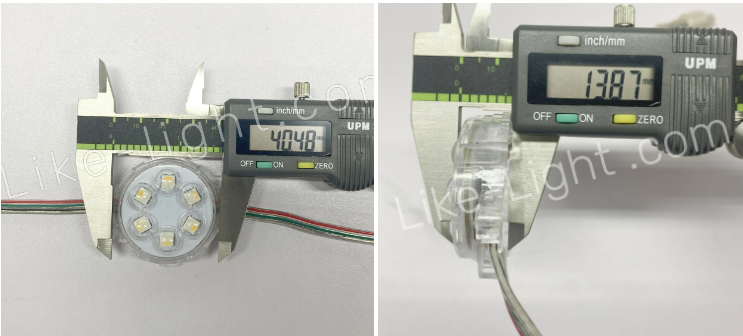

Dimension drawing

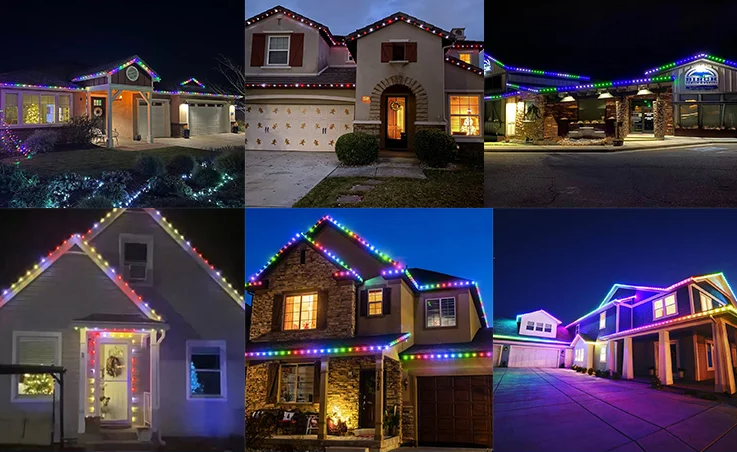

Scene application diagram
