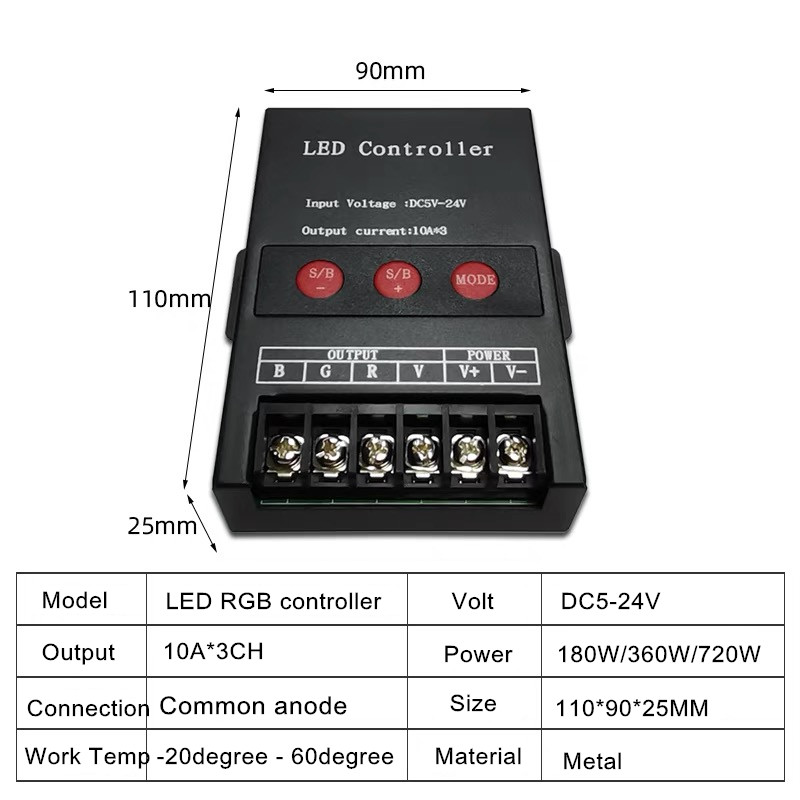

RGB controller with remote control 10A*3CH
Model: L-RGB-M
Working Voltage: DC5V-24V
Output: 10A × 3CH (RGB)
Control Type: RF Remote Control
Internal Protection: IP20
Working Temperature: -30°C ~ +80°C
Warranty: 2 Years
Compatible Lights: RGB LED strips, wall washers, pixel lights
Effects: Jump, Gradual, Strobe & more
OEM/ODM: Supported
control, designed for DC5V-24V LED lighting systems with 10A×3CH
output capacity.
- RF remote control for wireless operation
- Compatible with RGB LED strip lights, wall washers & pixel lights
- Multiple lighting effects: jump, gradual change & strobe
- Power-fail memory function
- Easy installation with simple wiring
Ideal for architectural lighting, signage, retail displays,
entertainment venues & residential decorative lighting.
pricing and bulk orders.
L-RGB-M adopts the advanced micro-control unit, it is used for controlling a variety of lamp whose source of light is LED.
For instance, point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on; It has power-fail memory, synchronized indicator light show and other functions.
At the same time, it has many advantages such as low price, easy to connect and simple to use.
According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Connect the load wire at first,then the power wire;Never connect two wires directly in case of short circuit.

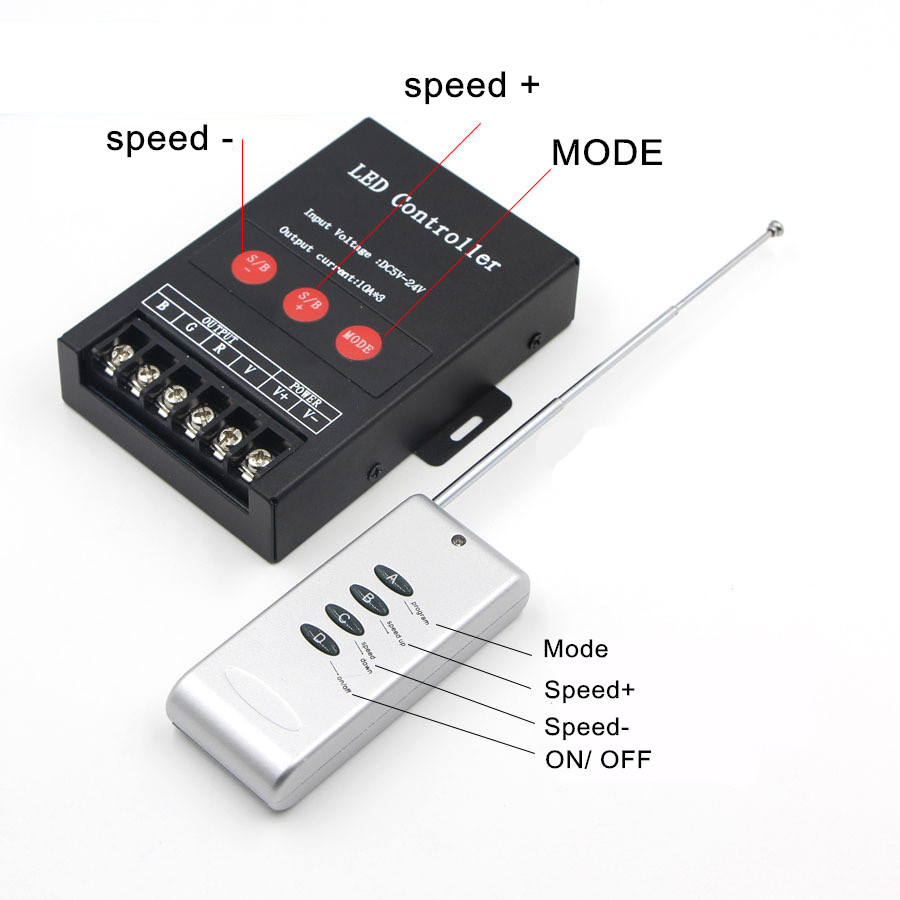

According to"mode"key to choose the different changing mode every time,when the key is pressed,the effect is changed,functional changes have been listed as follows.
Press"S/B"key can change every effect's speed or brightness,"S/B+"add one when you press the button every time,but"S/B-"will subtract one.
Control Effect:
