How to Plan Mini WS2811 Addressable RGB String Lights: Spacing, Voltage and Service Zones

A decorative ceiling, shop window or lightweight pixel feature can fail visually before it fails electrically. If the points are too far apart, curves and gradients break into isolated dots; if they are too close, pixel count, controller workload, wiring and replacement time rise without a visible benefit.

The LIKELIGHT page identifies model L-C-WS2811-MINII with one RGB LED per point, a 10 x 4.5mm body, WS2811/SK6812 versions, white or black wire, a 40-degree beam and IP20. The title says DC5V, while the parameter block also shows DC5/12V and a separate 12V entry. Voltage and IC must therefore be frozen as one approved production version rather than mixed across the article.

Published product facts

Convert viewing distance into a spacing test

The page publishes the 10 x 4.5mm point size but not the finished string spacing. Treat body size and centre spacing as separate decisions. At 20mm centres, one linear metre contains 50 points; 50mm gives 20 points; 100mm gives 10 points. These are design scenarios for a mock-up, not published factory spacing.

Use the closest normal viewing position to compare at least two pitches on the actual background. Close lettering, transparent showcases and small curves usually reveal gaps sooner than overhead garlands or distant decorative outlines. More points are justified only when the improvement remains visible from the project viewing path.

Freeze voltage and IC before specifying the controller

WS2811 and SK6812 are listed as product options, not simultaneous ICs in one string. Both belong to the cascade-pixel family, but controller compatibility, signal timing, color order and wiring must match the selected production version. Plan pixel count, data direction, port allocation and mapping rather than individual DMX addresses.

The page also contains mixed DC5V/DC12V wording. Do not infer that the same controller output, wire drop or point circuit applies to both. The sample label, pinout and order sheet should identify one voltage and one IC before power distribution or programming is released.

Use point count to divide power, data and maintenance zones

A 12m outline at 50mm pitch contains about 240 points; the same outline at 100mm contains about 120. This simple count changes controller pixels, mapping effort, connectors and replacement inventory before any electrical assumption is made.

The page embeds a 0.01W-per-point maximum label inside a combined voltage field, but the extractor cannot confirm it as a clean power specification. Use it only as a quotation question, not as a released load calculation. Final circuits require the approved voltage, measured full-effect current, cable arrangement and project margin.

Project selection table

IP20 changes where the string can be installed

IP20 is the published protection grade. That makes the current page configuration suitable for dry, protected decorative locations rather than exposed rain or wash-down areas. A product title containing the word waterproof does not override the IP20 value in the parameter table.

For showcases, indoor ceilings or protected props, keep drivers and connectors accessible and provide strain relief for fine wires. For damp or outdoor work, select a separately confirmed protected construction; do not assume that adding a sealed connector upgrades the whole string.

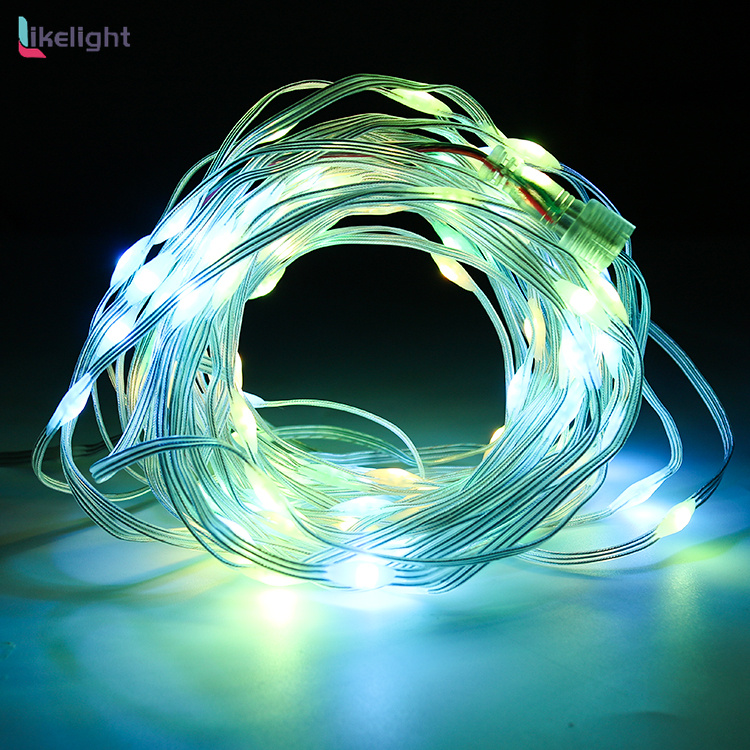

Where the LIKELIGHT mini pixel string fits

L-C-WS2811-MINII can be evaluated where a small 10 x 4.5mm RGB point and lightweight white or black wire are more important than a large bulb appearance. Suitable directions include protected retail displays, indoor festive features, props, small lettering and suspended pixel patterns with service access.

It is not the first choice for exposed outdoor strings, large viewing distances that need a bigger luminous face, or installations whose failed point cannot be reached. The 40-degree published beam also means orientation and background reflectance should be checked on a real sample.

Commission one short branch before scaling the installation

Build one representative branch with the approved point spacing, voltage, IC, color order and connector direction. Run the intended effects, inspect the far end under load, interrupt and restore data, and replace one point to verify the service method.

Record the released sample label, wiring direction, controller file and branch count. This turns an attractive sample into a repeatable project configuration and prevents mixed voltage or IC batches from reaching site.

Information to send for quotation

Send the total and zoned lengths, proposed centre spacing, closest viewing distance, target animation, installation background, indoor exposure, preferred wire color, controller model, available DC voltage, connector direction, access method, sample quantity and schedule.

These inputs allow LIKELIGHT to evaluate point count, cascade mapping, branch layout and the exact voltage/IC version together. They do not turn an IP20 string into an outdoor system; protection must be selected separately when the environment requires it.

• ✓Total length and length by zone
• ✓Centre spacing and viewing distance
• ✓Animation and controller reference
• ✓Required voltage and IC version
• ✓Wire color and connector direction
• ✓Environment, access, sample and schedule
