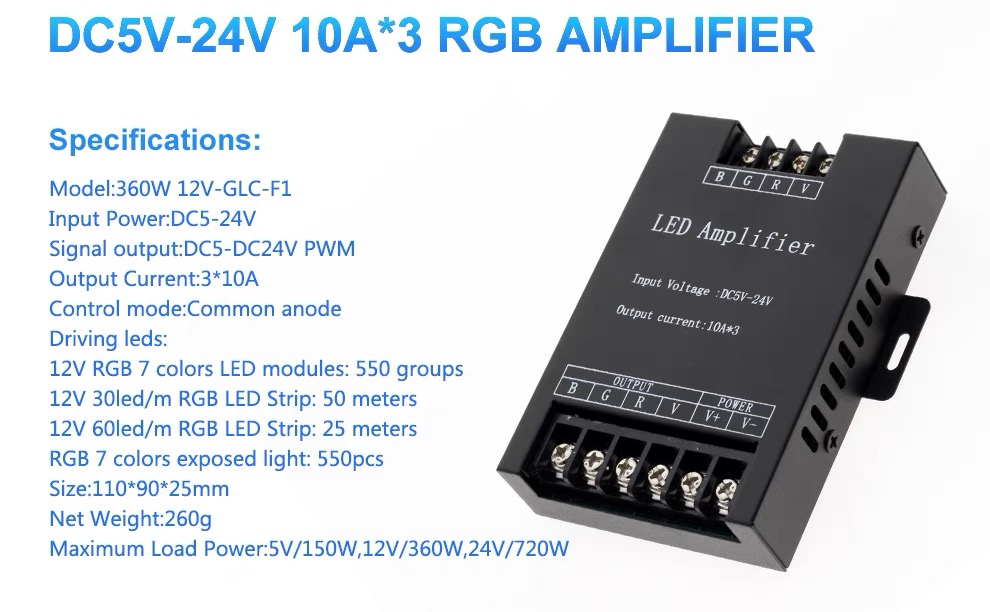

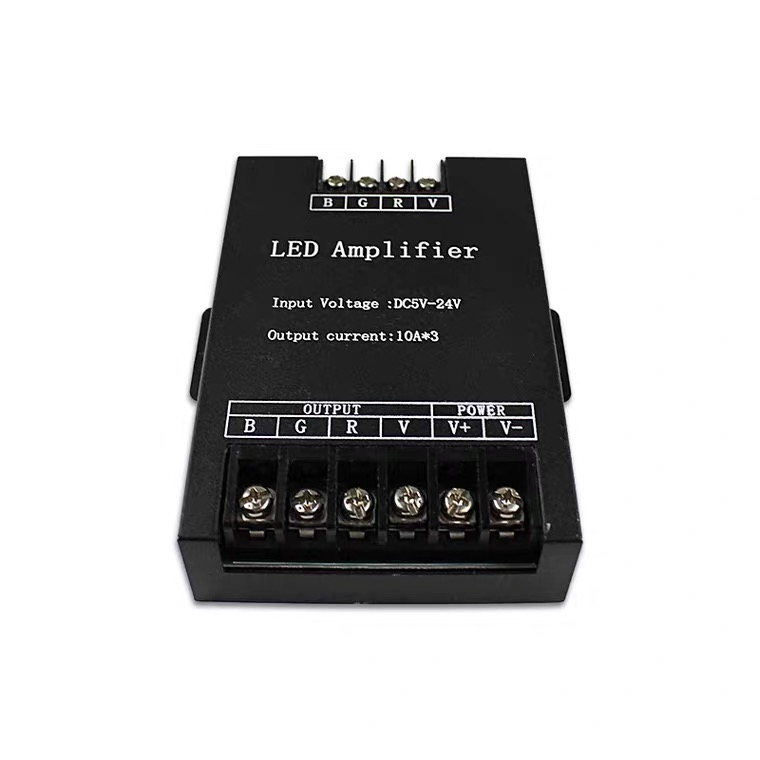

RGB controller Amplifier work with RGB-M remote controller

L-RGB-S receive the signal from L-RGB-M,  they advanced micro-control unit, it is used for controlling a variety of lamp whose source of light is LED.

For instance, point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on; It has power-fail memory, synchronized indicator light show and other functions.

At the same time, it has many advantages such as low price, easy to connect and simple to use.

According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

Connect the load wire at first,then the power wire;Never connect two wires directly in case of short circuit.

According to"mode"key to choose the different changing mode every time,when the key is pressed,the effect is changed,functional changes have been listed as follows.

Press"S/B"key can change every effect's speed or brightness,"S/B+"add one when you press the button every time,but"S/B-"will subtract one.

Control Effect:
