Magic light strip 2815 5050 LED chip running horse light belt indoor and outdoor decorative

Magic light strip 2815 5050 LED chip running horse light belt indoor and outdoor decorative

L-S-WS2815-10060-5050
Lighting Source :	60PCS SMD5050 RGB LED
IC Chip :	WS2815
Beam Angel :	140 Degree
Voltage Input :	DC 12V
Wattage :	12 Watt (max)/ meter
PCB width(mm) :	10 mm
Pixel Pitch :	16.67mm/section can be cut
PCB color:	White/ black
Warranty :	2years
Waterproof Grade :	IP20/65/67
Lifetime :	50000H
Working Temp :	-20℃-60℃

Product Feature

1-Digital DC12V operation RGB pixel led strip light.

2-Each le d / pixel individually addressable.

3-Density:30leds/M, 60leds/M, 100leds/M, 144leds/M optional.

4-IP grade: IP20 non-waterproof, IP65 with silicone tube coating, IP67 with silicone tube + glue full filling.

5-The connectors can be JST non waterproof plug or waterproof plug, Male with Pin is Input, Female without Pin is Output.

6-Dual signal circuit, with a back up circuit for signal transmission, if 1 chip broke, the rest chip are working fine still.

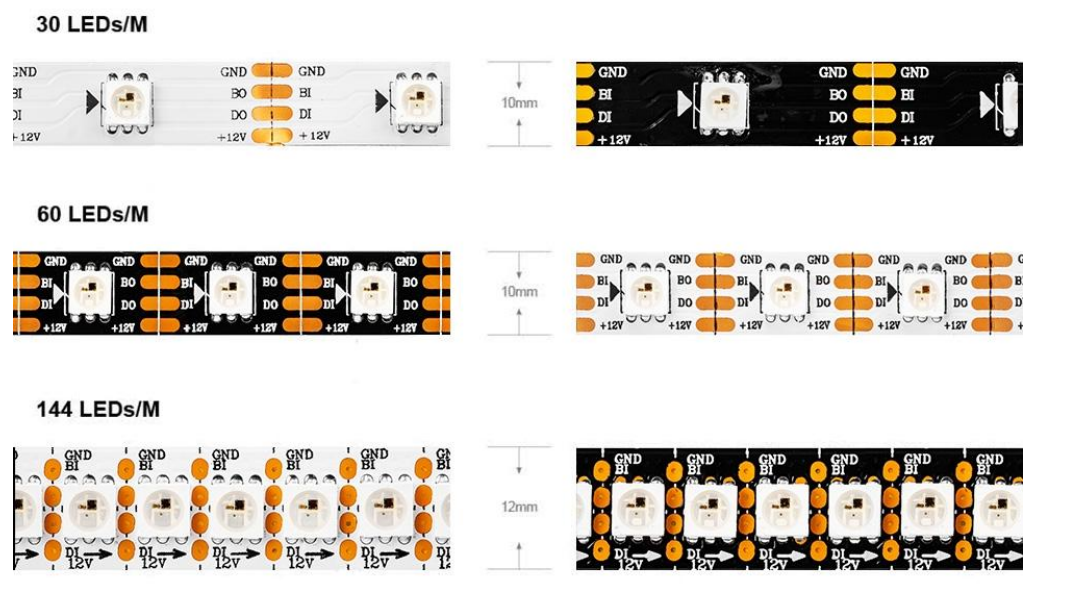

Dimensions：

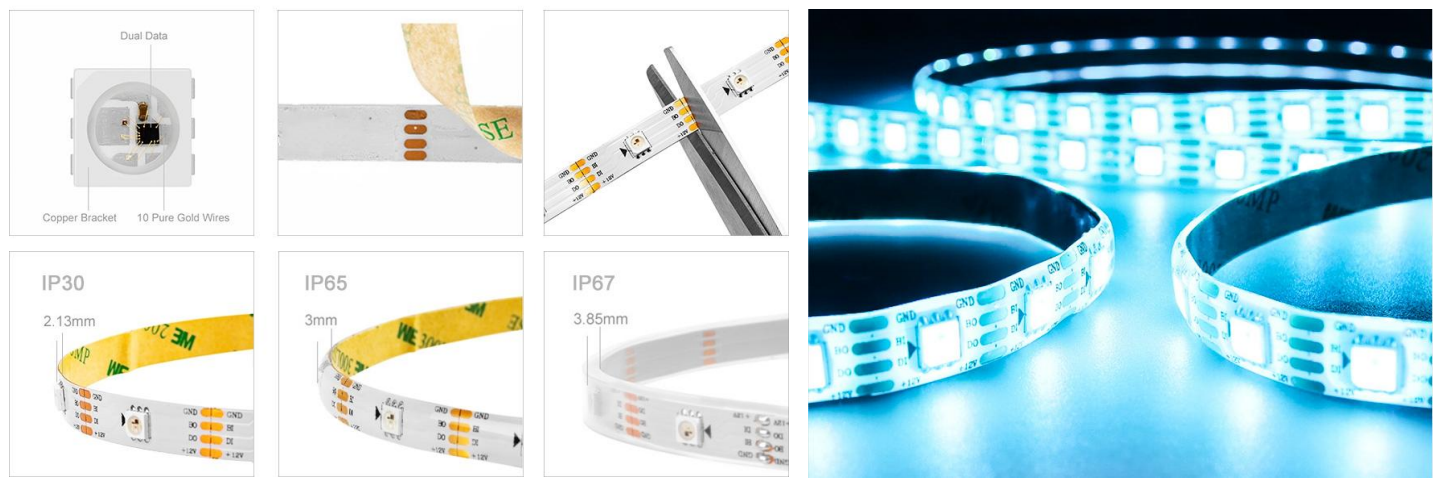

IP grade Structure & Feature:

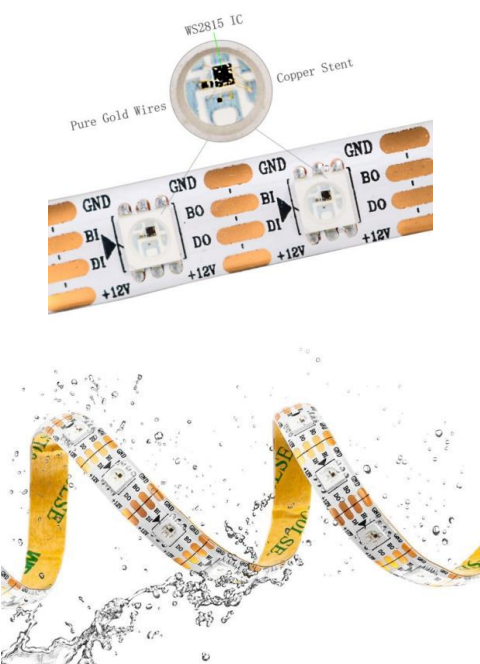

Features:

-Dual signal circuit, each led individually addressable

-12V operation voltage, 5M with power feed once without voltage drop

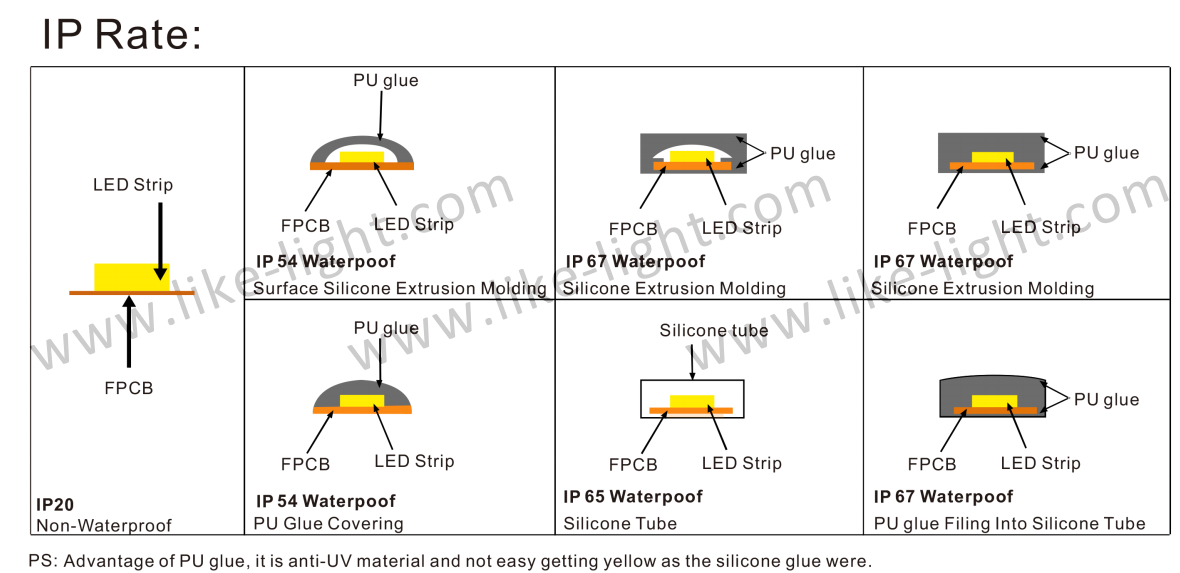

IP grade:

-IP20 without protection, non-waterproof

-IP65 Silicone tube coating/ epoxy

-IP67 Silicone tube coating plus glue full filling inside

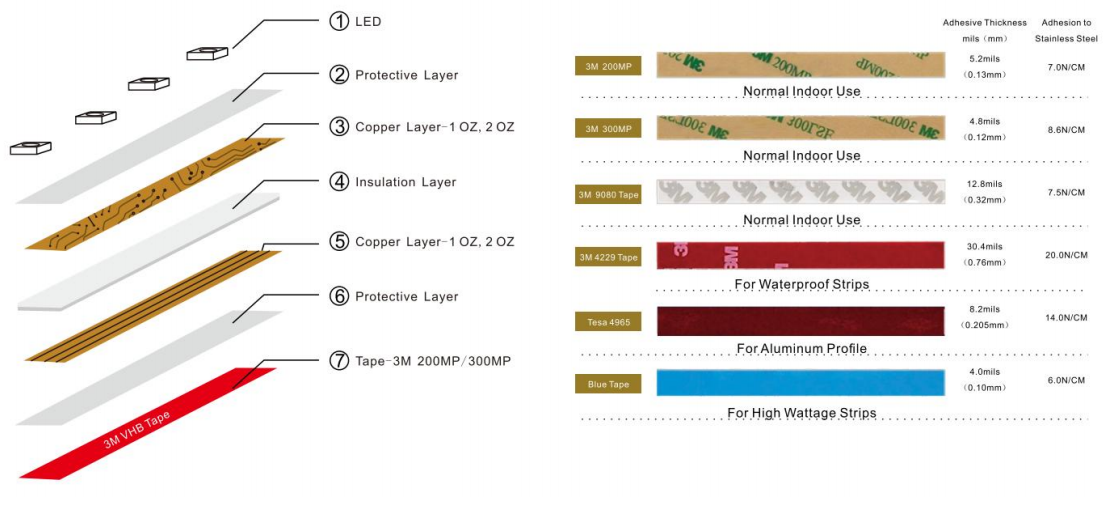

Structure & 3M back tape:

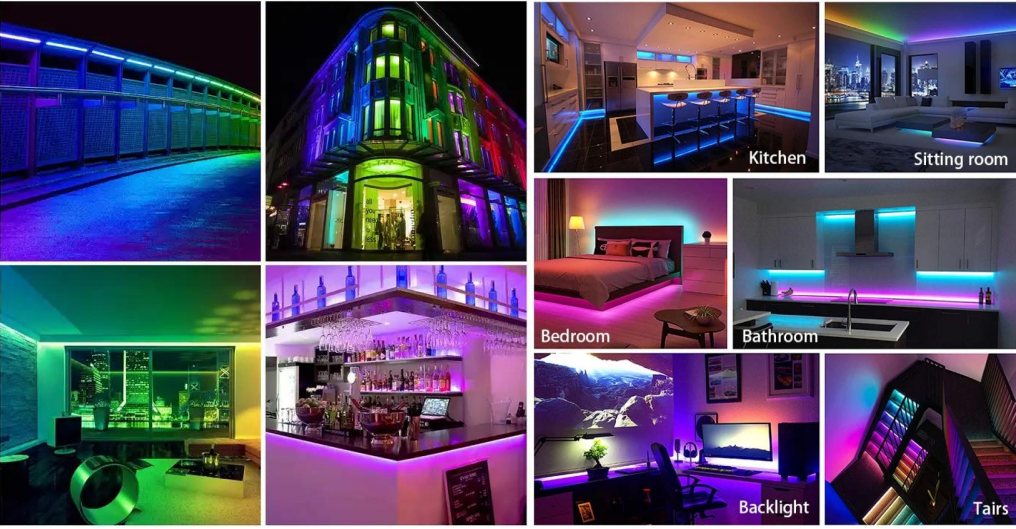

Application Case :

Lighting belt is used in a wide range of scenarios, ‌ including but not limited to home decoration, ‌ commercial space decoration, ‌ outdoor construction lighting, ‌ special effects production and so on. ‌

Accessories :

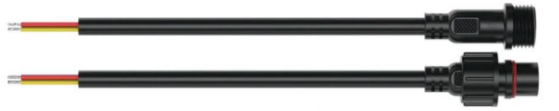

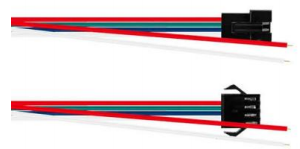

JST plugs -Waterproof &non- waterproof optional -4pin male in, 4pin female out -Extra power cables available	Extension cables -Can be 2pin-2pin power extensions -Can be 4pin-4pin signal extensions -Cable length custom available	Custom T - cables - 4-4-2pin for power injection,  - 4-4-4pin for signal parallel  -Cable length custom available

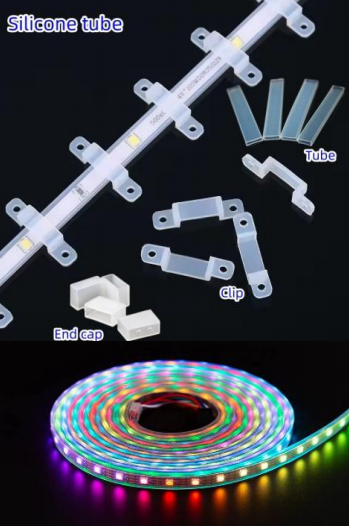

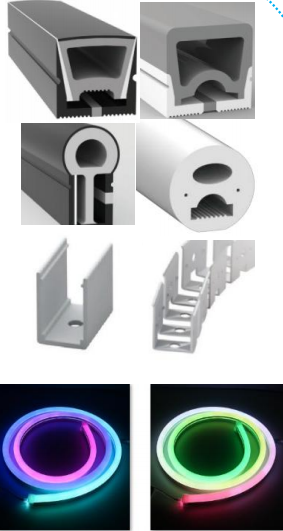

Silicone tube -Transparent silicone tube for waterproof protection -Accessories: silicone clip, Screws, silicone end caps	Neon flex tube -White/ black color neonflex tube with dozens of sizes -Accessories: Al clip, Flex/ rigid AL track

If you're not sure which light  is best for your project or need help with layout configuration, please call us at LIKELIGHT:+86-755-23328395, email :contact@like-light.com.We can provide you with complete design and manufacturing services to meet your specific needs and requirements.
