LED Strip Light

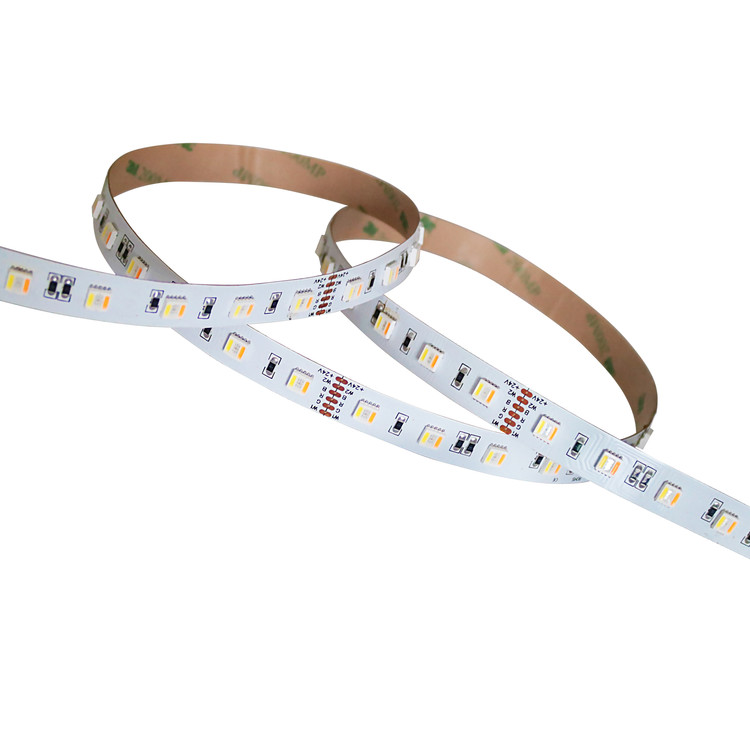

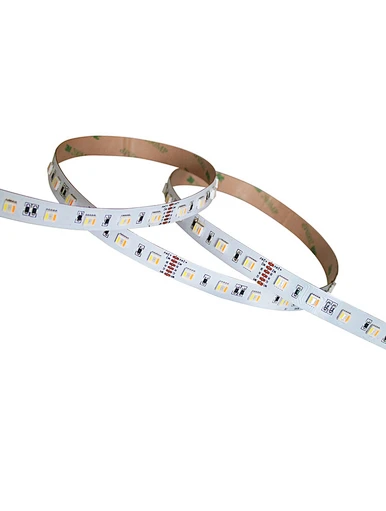

10mm RGB warm white cool white 5 in 1 analog signal DC12V 24V smd5050 LED strip
L-S-RGBWWW
Part No.: L-S-RGBWWW
PCB width (mm): 12mm
PCB color: black/white
IC chip: no IC, analog signal
Lighting Source: RGB+warm white+cool white SMD5050 LED CHIP
Operate Voltage: DC12V/24V
Wattage: 24W/m
Beam Angel: 120 degree
Standard length: 5m
Waterproof Grade: IP30/IP65/IP67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
PCB width (mm): 12mm
PCB color: black/white
IC chip: no IC, analog signal
Lighting Source: RGB+warm white+cool white SMD5050 LED CHIP
Operate Voltage: DC12V/24V
Wattage: 24W/m
Beam Angel: 120 degree
Standard length: 5m
Waterproof Grade: IP30/IP65/IP67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1. DC12V/24V analog signal RGB+warm whtie+cool white LED strip.
2. 60 LEDs/m, every 3 LEDs(DC12V)/6 LEDs(DC24V) can be cut.
3. Can be cut or joined at each copper tab.
4. 3M adhesive double side tape on the rear.

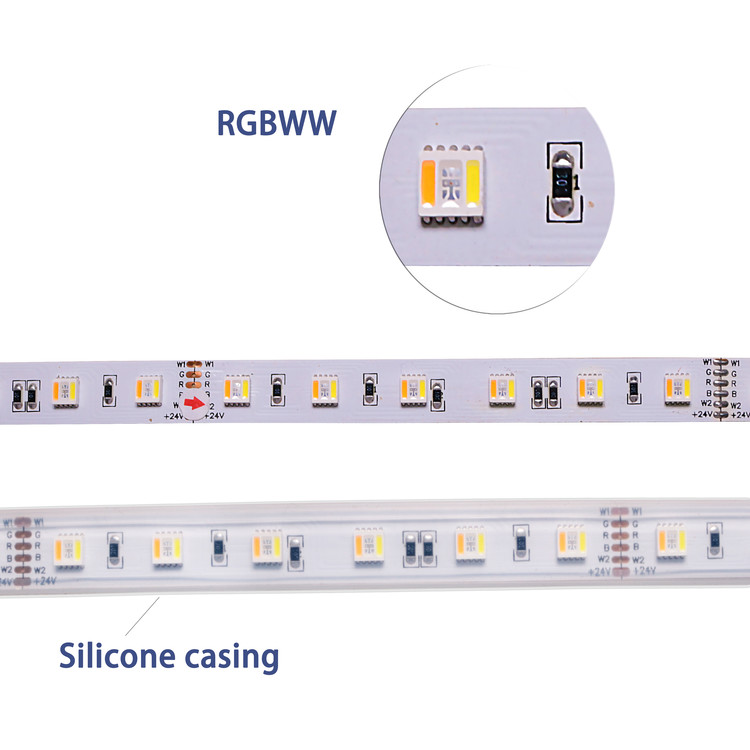

5. Non-waterproof, waterproof ip65 with silicone tube or silicone glues, waterproof ip67 with silicone tube and glues.
6. White PCB or black PCB, usually 2 Oz, can do 3 Oz, to offer more durability, better heat dissipation and reduced voltage drop.

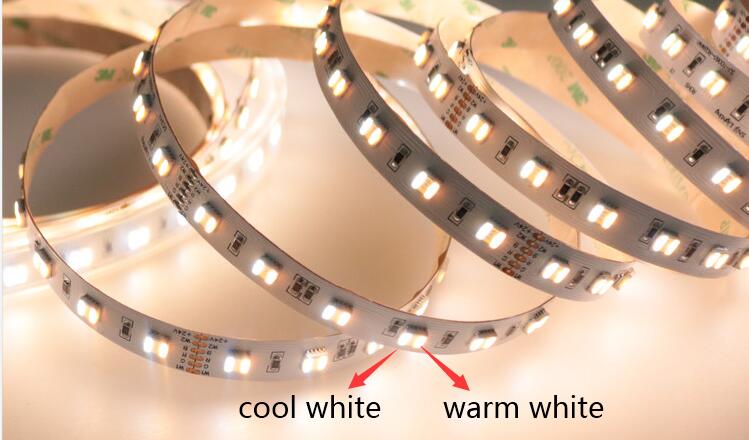

7. RGB+ warm white+cool white 5 in 1 LED strip, there is 2pcs white chip in the LEDs.
7. Suitable for Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display. etc.
Product details

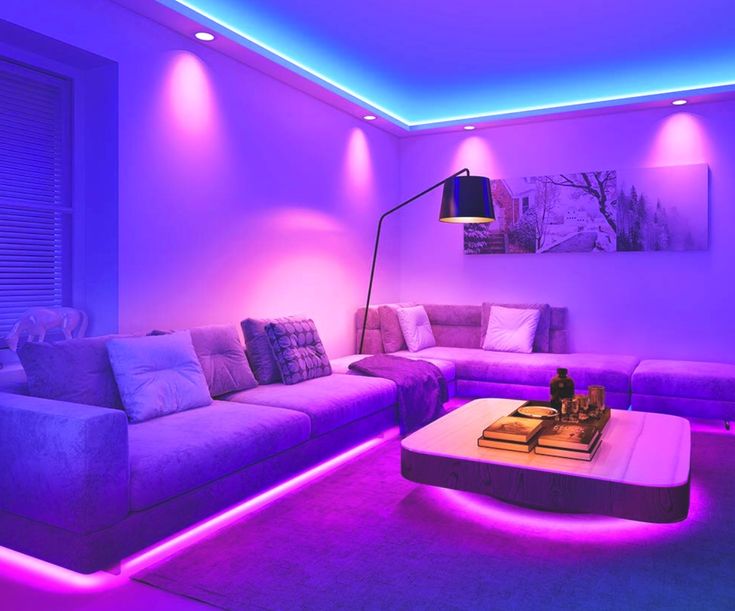

Applications
They are awesome for Home, Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display. etc.
