LED Chain Light
12v 20mm colorful rgb addressable magic IC control GS8208 led pixel string module light
L-C20-GS8208
Part NO： L-C20-GS8208
Diameter (mm) : 20 mm
IC chip: GS8208
Lighting Source: SMD 5050 RGB LED
Operate Voltage : DC12V
Wattage : 0.3W/pc
Beam Angel :180 degree
Length: standard 50pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Diameter (mm) : 20 mm
IC chip: GS8208
Lighting Source: SMD 5050 RGB LED
Operate Voltage : DC12V
Wattage : 0.3W/pc
Beam Angel :180 degree
Length: standard 50pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1.Control : Seperate control, 1 PCS SMD5050 LED and 1 IC ( GS8208 )
2. Waterproof : IP65 with JST non-waterptoof connector (indoor use), IP68 with PVC connector (outdoor use).
3. Normal length per string is 10m/ 50LEDs per string with 10cm distance ,customized is available.
4. Power supply: Low power and consume, DC12V 0.3W. Do not higher than DC12V or will burn the led.
5. There is male & female 4pin JST SM connector on both ends for signal transfer, the Male with Pin is Input. Also can be waterproof connector.
6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful
7. Different installation methods can constitute different dynamic effects of different color characteristics and designs.

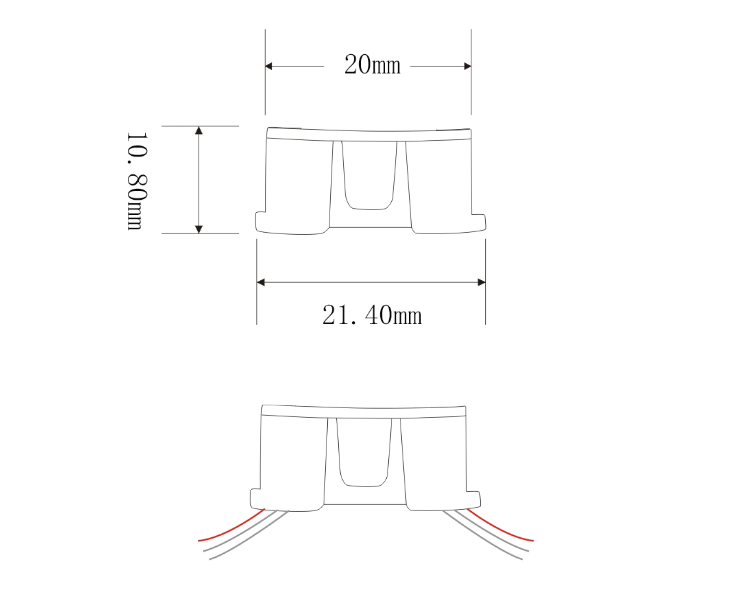

Dimensions

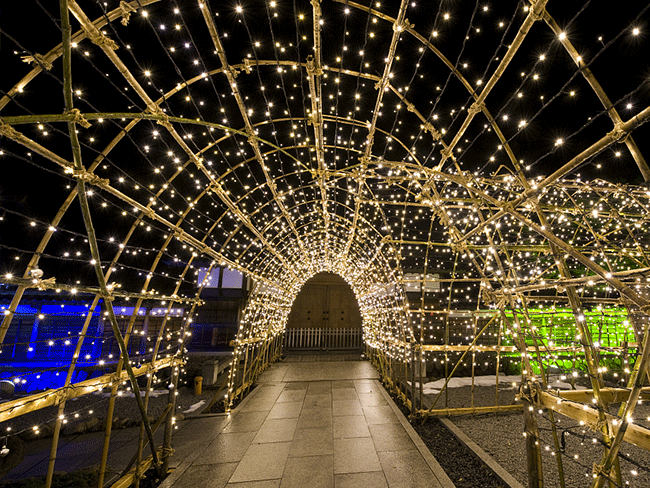

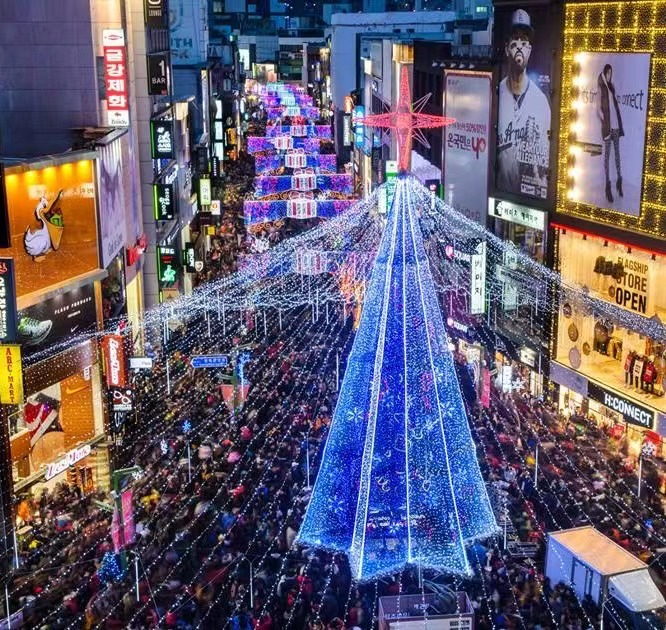

Applications
