LED Chain Light

Multicolor 10mm RGB led pixel string digital curtain light

Model NO. L-C10-SK6812

Part NO： L-C10-SK6812/GS8208
Diameter (mm) : 10 mm
IC chip: SK6812
Lighting Source: SMD 5050 RGB LED
Operate Voltage : DC5V
Wattage : 0.3W/pc
Beam Angel :180 degree
Length: standard 50pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃

Quantity

Product Description

1.Control : Seperate control, 1 PCS SMD5050 LED and 1 inserted-in IC ( SK6812 )

2. Waterproof : IP65 with JST non-waterptoof connector (indoor use), IP68 with PVC connector (outdoor use).

3. Normal length per string is 10m/ 50LEDs per string with 10cm distance ,customized is available.

4. Power supply: Low power and consume, DC5V 0.3W. Do not higher than DC5V or will burn the led.

5. Connectors :3PIN JST female/male connector, also can be waterproof connector, DAT, DC5+, GND-, each led pixel is separate, you can easily connect them one by one through the male female connector.

6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful

7. Different installation methods can constitute different dynamic effects of different color characteristics and designs.

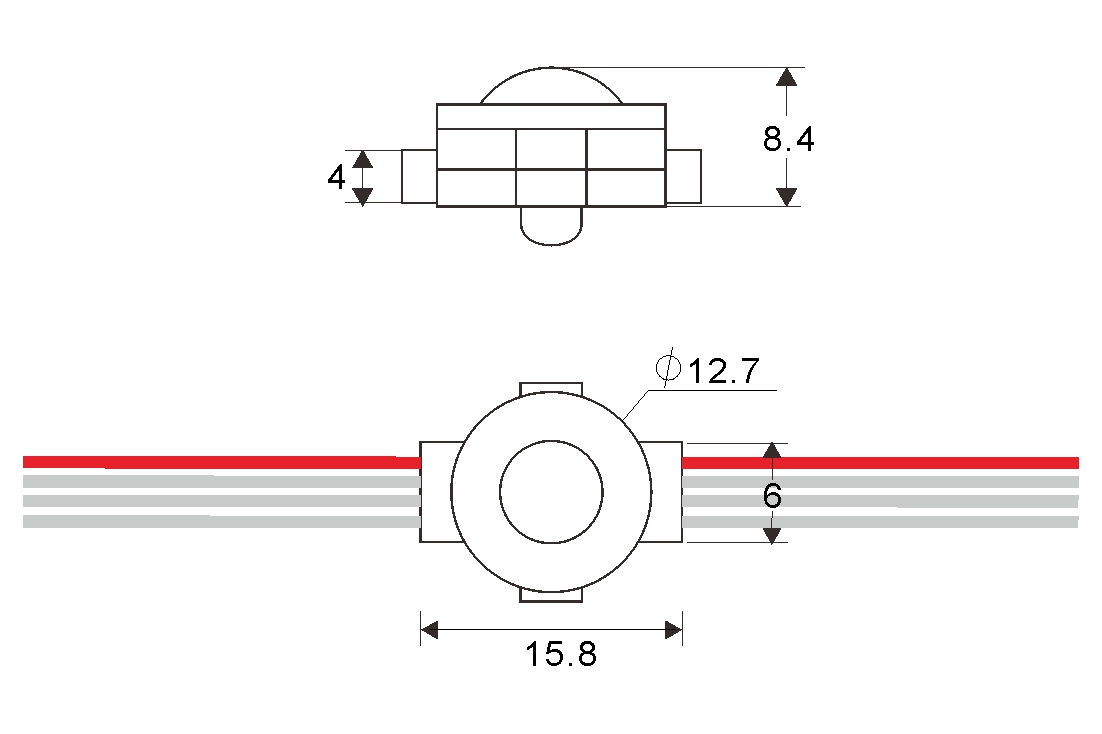

Dimensions
