LED Chain Light
26*18MM UCS1903 RGB LED 5V Square Permanent Pixel String Lights
L-C2618-UCS1903
Part NO： L-C2618-UCS1903
Diameter (mm) : 26*18 mm
IC chip: UCS1903
Lighting Source: F8 diodo LED
Operate Voltage : DC 5V
Wattage : 0.3W/pc
Beam Angel :180 degree
Length: standard 50pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Diameter (mm) : 26*18 mm
IC chip: UCS1903
Lighting Source: F8 diodo LED
Operate Voltage : DC 5V
Wattage : 0.3W/pc
Beam Angel :180 degree
Length: standard 50pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1. Control : Seperate control, 1 PCS F8 diodo and 1IC (UCS1903)
2.12mm rgb smart pixel light With special shape, suitable for all kinds of board
3. RGB Smart Led Pixel Light String With PU glue sealing, not easy to crack, high waterproof grade
4. Power supply: Low power and consume, DC5V 0.3W. Do not higher than DC5V or will burn the led.
5. Cables and case are using anti-cold, anti-UV, anti-flamere sistant material, can be used in outdoor for long time.
6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful
7. Different installation methods can constitute different dynamic effects of different color characteristics and designs.
Dimensions

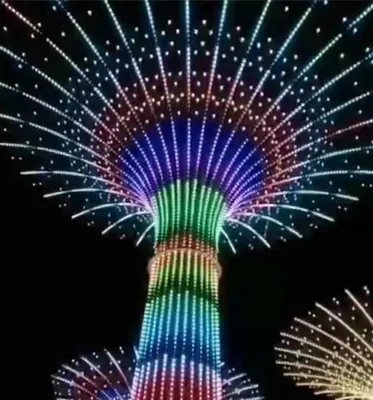

Applications
