LED Chain Light

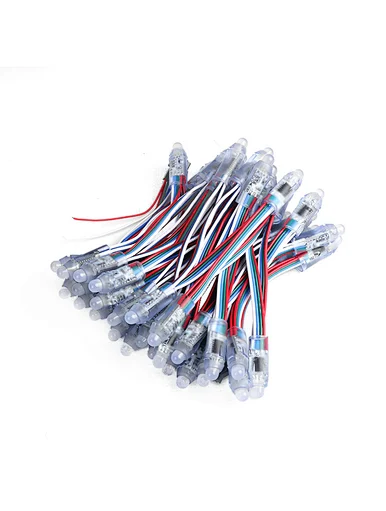

12mm WS2801 5V rgb pixel point programmable Led String light Exposure lamp

Model NO. L-C12-WS2801

Part NO： L-C12-WS2801
Diameter (mm) : 12 mm
IC chip: WS2801
Lighting Source: F8 diodo LED
Operate Voltage : DC 5V
Wattage : 0.3W/pc
Beam Angel :180 degree
Length: standard 50pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃

Quantity

Product Description

1.Control : Seperate control, 1 PCS F8 diodo and 1IC (WS2801)

2. Waterproof : IP65 with JST non-waterptoof connector (indoor use), IP68 with PVC connector (outdoor use).

3. Power supply: Low power and consume, DC5V 0.3W. Do not higher than DC5VDC12V or will burn the led.

4. Connectors :4PIN JST female/male connector, also can be waterproof connector, DAT A, CLK-，12V+, GND-, each led pixel is separate, you can easily connect them one by one through the male female connector.

5. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful

6. Different installation methods can constitute different dynamic effects of different color characteristics and designs.

Dimensions
