GS8208 12mm RGB Pixel Christmas Lights – Dual-Signal Backup, 5V/12V

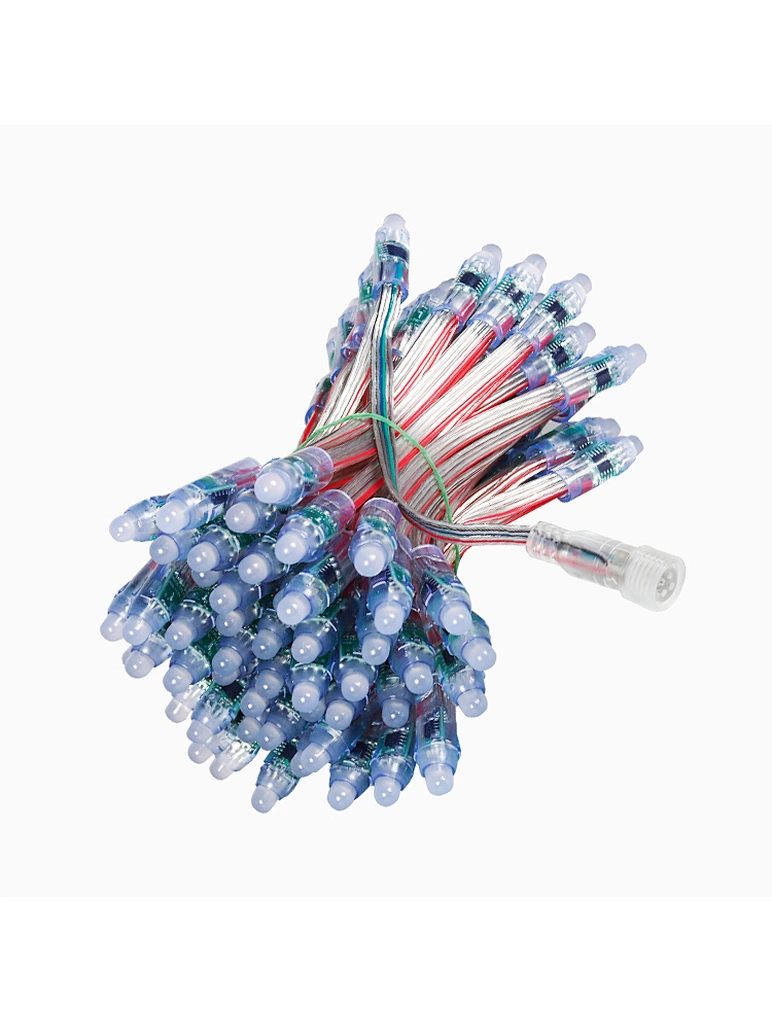

12mm GS8208 RGB Addressable Pixel String Lights (5V/12V)
Key Features
Dual-signal backup data: improves reliability if a single pixel fails (not consecutive failures).
Individually addressable RGB: 1 LED + 1 IC per pixel for smooth chasing / gradient effects.
Low power: approx. 0.3W per pixel.
Wide beam angle:180° for even visibility.
Waterproof options: choose indoor or outdoor connectors and sealing.
Standard & custom: common configuration 50pcs/chain, spacing and wire length customizable.
| Item | Specification |
|---|---|
| Product | 12mm GS8208 RGB Addressable Pixel String Lights |
| Model / SKU | L-C12-GS8208 |
| Pixel Type | 1 LED + 1 IC per pixel (individually addressable) |
| IC | GS8208 |
| Diameter | 12mm |
| Input Voltage | DC 5V / DC 12V (both available) |
| Power | ≈ 0.3W per pixel |
| Beam Angle | 180° |
| Waterproof Options | IP65 / IP67 / IP68 (by version) |
| Lifetime | 50,000 hours |
| Working Temperature | -20°C to 60°C |
| Standard Configuration | 50 pcs/string, 8 cm spacing (customizable) |
| Data / Wiring | V+ / GND / DATA A / DATA B (confirm per connector) |
| Typical Use | Permanent holiday lighting, outdoor signage, architectural outline lighting |
| Customization | Spacing, wire length, connector type, waterproof grade, pixel qty per chain, packaging |
Packaging & Customization
Standard: 50pcs per string (custom length available)
Custom options: spacing, wire length, connector type, waterproof grade, pixel quantity per chain, logo/label, packaging
Applications
Permanent Christmas / holiday roofline lighting
Outdoor signage & channel letters
Architectural facade & contour lighting
Theme park / stage / event pixel effects
FAQ
Q1: What does dual-signal backup mean?
A: Dual-signal (backup data) helps keep the rest of the string working if a single pixel fails (not consecutive failures), improving reliability for long runs.
Q2: Which voltage should I choose, 5V or 12V?
A: 5V is great for shorter runs and high uniformity, while 12V reduces voltage drop on longer runs. The best choice depends on total pixels, cable length and power injection plan.
Q3: Are these lights individually addressable?
A: Yes. Each pixel has its own IC, enabling independent control for chasing, gradients and animations.
Q4: What waterproof option should I use outdoors?
A: For outdoor permanent installs, choose higher waterproof versions (e.g., IP67/IP68) and use matching waterproof connectors and sealed joints.
Q5: What is the standard configuration? Can I customize spacing?
A: A common standard is 50pcs per chain with 8cm spacing. Spacing, string length, and connector types can be customized.
