35mm 50mm 3D Pixel Ball String Light
35mm 50mm 3D Pixel Ball String Light
Product parameter:
| L-C35/50B-UCS1903/DMX | ||
| Diameter(mm): | 35mm or 50mm |  |
| IC / Protocol : | UCS2903 / DMX512 | |
| Lighting Source : | 6PCS SMD3535 RGB LED | |
| Voltage Input : | DC24V | |
| Wattage : | 1.44 Watt (max) / Custom | |
| Beam Angel : | 140 Degree | |
| Length : | 20pcs/chain or Custom | |
| Spacing : | 10cm / Custom | |
| Cover : | Milky White / Transparent | |
| Waterproof Grade : | IP67 | |
| Cable: | Black / White / Custom | |
Product Feature:
1-Seperate control : 6pcs smd3535 high brightness LED with 1 IC (UCS2903/DMX512C).
2-Cover : 35mm/50mm with milky white cover or transparent cover options.
3-Power supply : 24V power must be used to power the pixel.Do not use a power supply higher than 24V.
4-cable length : standard 20 lights/chain with 10cm spacing, spacing can be customized.
5-Connectors : PVC or Aluminum M12 waterproof plug, 3pin/5pinMale with Pin is Input,3pin/5pin Female without Pin is Output.
2-Cover : 35mm/50mm with milky white cover or transparent cover options.
3-Power supply : 24V power must be used to power the pixel.Do not use a power supply higher than 24V.
4-cable length : standard 20 lights/chain with 10cm spacing, spacing can be customized.
5-Connectors : PVC or Aluminum M12 waterproof plug, 3pin/5pinMale with Pin is Input,3pin/5pin Female without Pin is Output.
Dimension Structure:
How to connect:
Accessories:
 |
 |
 |
 |
|

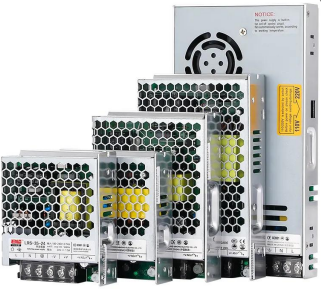

eanwell Power supply
-waterproof/non waterproof
-AC110/230V-DC5-48V
|
Cable Accessories
- Extension Jumper
- T-type power inject , Y cable - Male or female pigtails 2/3 pin Electrical Box - With air vent without fan
- Air vent with fan - No air vent and fan is installed |

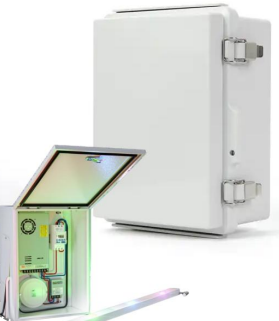

Electrical Box
- With air vent without fan
- Air vent with fan - No air vent and fan is installed |
SD Card Controller
- LEDedit Software making effect
-Effect -Multi color function
-A variety of controllers are available
|
Application Case :
- - Stage video elements for intimate or large concert productions；
- - Interior design for clubs, coffee / wine bars, shopping malls museums,themed enviroments；
- - Exhibitions stands, advertising,Led screen；
- - Garden square green trees；
- - Architectural lights for corridor, canopy, archway, lights；
- - Commercial lighting in public places such as square and amusement park；
If you're not sure which light is best for your project or need help with layout configuration, please call us at LIKELIGHT:+86-755-23328395, email :contact@like-light.com.We can provide you with complete design and manufacturing services to meet your specific needs and requirements.
