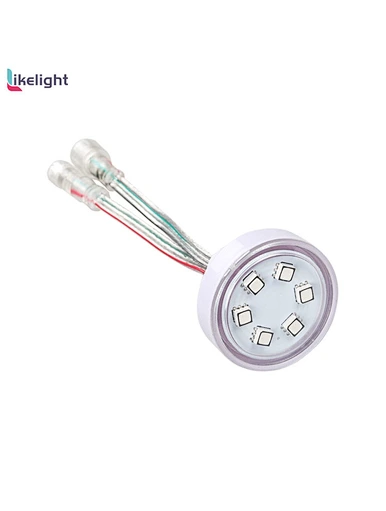

38mm Diameter ICUCS1903 DC24V 6 pcs RGB LEDs full color pixel light
L-D-386-24V
Diameter (mm) : 38 mm
drilling hole size: 18mm
IC chip: UCS1903
Lighting Source: RGB SMD 5050 LED CHIP
Operate Voltage : DC24V
Wattage : 1.44W/pcs
Beam Angel :120 degree
Length: standard 8cm ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
drilling hole size: 18mm
IC chip: UCS1903
Lighting Source: RGB SMD 5050 LED CHIP
Operate Voltage : DC24V
Wattage : 1.44W/pcs
Beam Angel :120 degree
Length: standard 8cm ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1.UCS1903 cabochon led rgb bulb light with UCS1903ic chip built in, 3PinJST SM connectors and power wire contained,
2.SPI signal, sd card led controller work together,support numerous color-changing effects.
3.5.5cm wire length ,7PCS SMD5050 RGB leds,long lifespan and lower power consumption,customized wire length is available.
4.Equipped with a plastic screw nut,easy to install.
5. Energy-saving, the same lighting efficiency than traditional bulb to save electricity 75-80%,CE & RoHS approval.
6.Lamps optical attenation: 1,000 hours attenuation less than 5%, Long-term use without the need for replacement

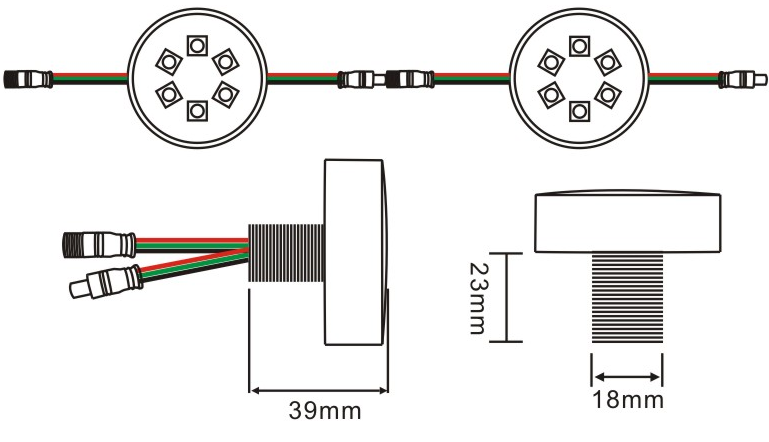

Dimension

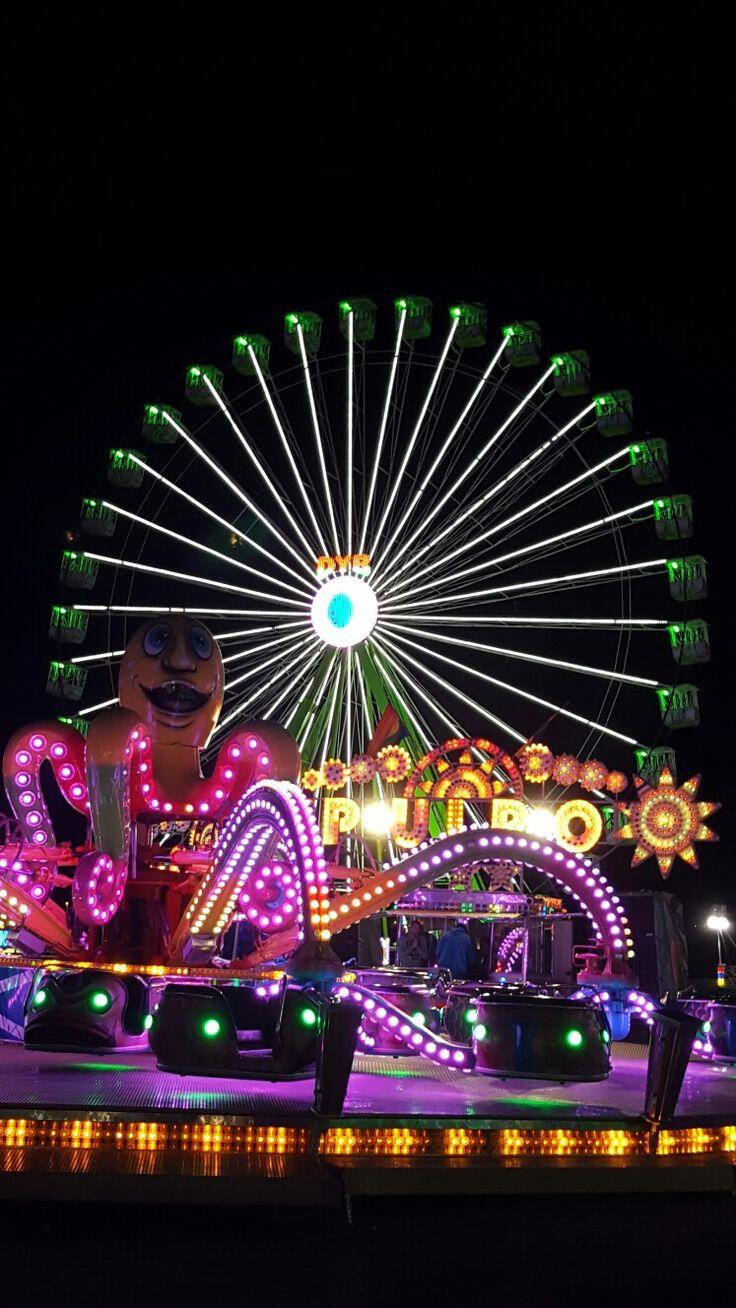

Application
outdoor amusement park lighting,
Ferris wheels,
Outdoor signboard
Casino Sign
Amusement park rides
Playground fair lighting
Game machine, traveling funfair
Funfair playground, waltzer land
