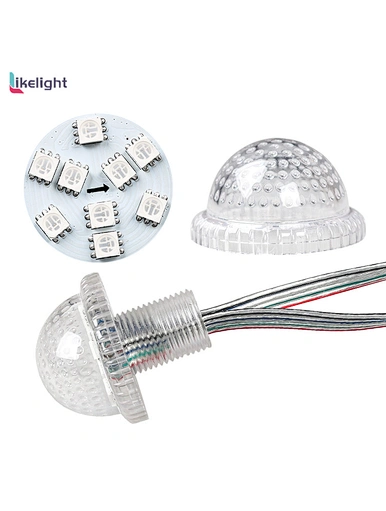

dream color amusement light 12v/24v 35mm Diameter LED pixel light for letter sign logo light
Power Consumption: 2.16W /1.44W
Work Voltage: DC24V/12v
LED Quantity :9 PCS SMD 5050 / 6 PCS SMD 5050
Color Full color :(ICRGB)
Dimension :35mm
Waterproof Grade :IP66
Work Temperature: -40-+60°C
Life-span: 50,000H
Certificate: CE&RoHS
Warranty: 2 years
1) 35mm 9leds/6leds pixels for amusement park rides and funfair ground, 19mm/14mm/35mm install hole.
2) Low power and consume, DC24V/12v 1.44W/2.16W. Do not higher than DC24V or will burn the led.
3) Individually control: 6PCS / 9PCS LED pixle UCS1903 IC.
4) Color: magic color, dream color, rgb pixel leds, color chasing, multiple color. smd5050 rgb led inside, can program to any color or patterns.
5) Each 35mm 9led/6led pixels amusement bulb UCS1903 IC have 3pin male and female JST connector. Male connector is signal input, Female connector is signal output. So the bulb can chain to use together as many as possible. Every 20pcs need a power bulb to offer enough voltage.
6) Cover, now available at Milky cover, fog cover, clear cover, transparent cover.
7) Waterproof, all the pixels are seal with glue, and we offer 3pin normal connector IP66 and waterproof connector IP68. IP68 can used for outdoor completely.
Dimension
The 35mm 9led/6led pixel LED designed for
outdoor amusement park lighting,
Ferris wheels,
Outdoor signboard
Casino Sign
Amusement park rides
Playground fair lighting
Game machine, traveling funfair
Funfair playground, waltzer land
