Amusement Light

45mm Diameter DC12V/DC24V 9 pcs RGB LEDs full color pixel light

Model NO. L-D459

Part NO： L-D459-UCS2903/WS2811
Diameter (mm) : 45 mm
drilling hole size: 19mm
IC chip: UCS2903/WS2811
Lighting Source: RGB SMD 5050 LED CHIP
Operate Voltage : DC12V/24V
Wattage : 2.16W/pcs
Beam Angel :120 degree
Length: standard 8cm ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃

Quantity

Product Description
1.Control : Seperate control, 1 PCS LED pixel light and 1IC (UCS1903,WS2811)
2. Waterproof : IP68, with silicone waterproof protection.
3. Installation: Aluminum profil or screw , the best drill holes of profil about 19mm.
4. Power supply: 12V/24V DC power must be used to power the pixel.
5. Connectors :3PIN no-waterproof female/male connector, also can be waterproof connector, DAT, DC12V/24V+, GND-, each led pixel is separate, you can easily connect them one by one through the male female connector.
6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful
7.SMD5050 rgbw led pixel module can achieve full color water, chasing, scanning and othereffects.

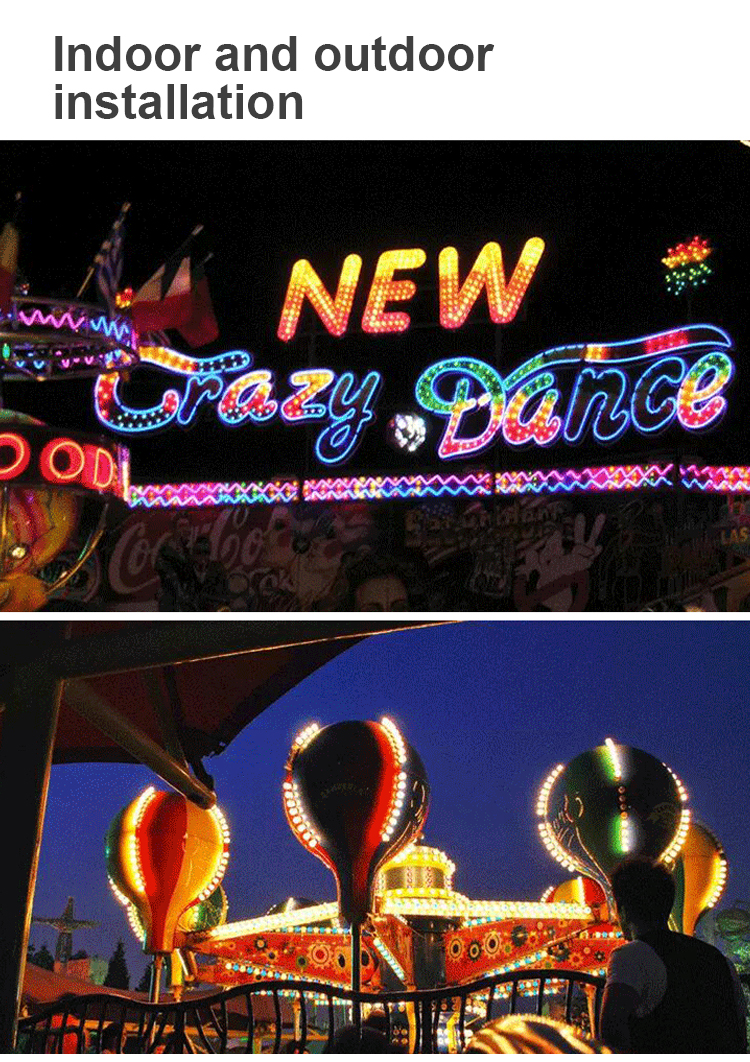

8. Different installation methods can constitute different dynamic effects of different color characteristics and designs.

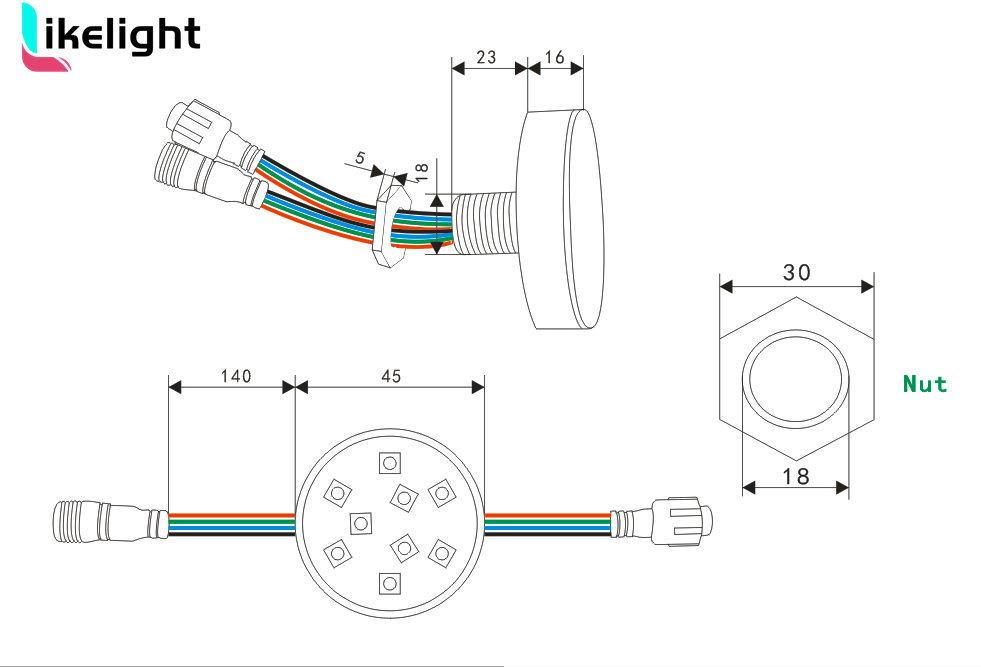

Dimension
