40mm Diameter 6 pcs SMD 5050 RGB LEDs outdoor amusement LED Pixel light
Beam Angel:140 degree
Operate Voltage:DC24V
Consumption Watt/M:1.44 Watt (max)
Diameter (mm):40mm
Wire length :8cm,Customizeable
IC chip:UCS1903/UCS2903 /2801/2811/DMX full color
Quantity:20 pcs /string
Waterproof Grade:IP67
Cover:Available at Lens, Round and flat cover
Working temperature:-20℃-60℃
Storage temperature:-30℃-80℃
1) 40mm 6led pcs smd for outdoor amusement park and funfair ground, 8cm length between each LED.
2) Low power and consume, DC24V 1.44W.
3) Individually control: 6PCS LED pixle ucs2903 IC
4) Color: magic color, dream color, rgb pixel leds, color chasing, multiple color. smd5050 rgb led inside, can program to any color or patterns.
5) Each 40mm 6led pixels amusement bulb 2903 IC have 3pin male and female JST connector. Male connector is signal input, Female connector is signal output. So the bulb can chain to use together as many as possible. Every 20pcs need a power bulb to offer enough voltage.
6) Cover, now available at Milky cover, fog cover, clear cover, transparent cover.
7) Waterproof, all the pixels are seal with glue, and we offer 3pin normal connector IP66 and waterproof connector IP68. IP68 can used for outdoor completely

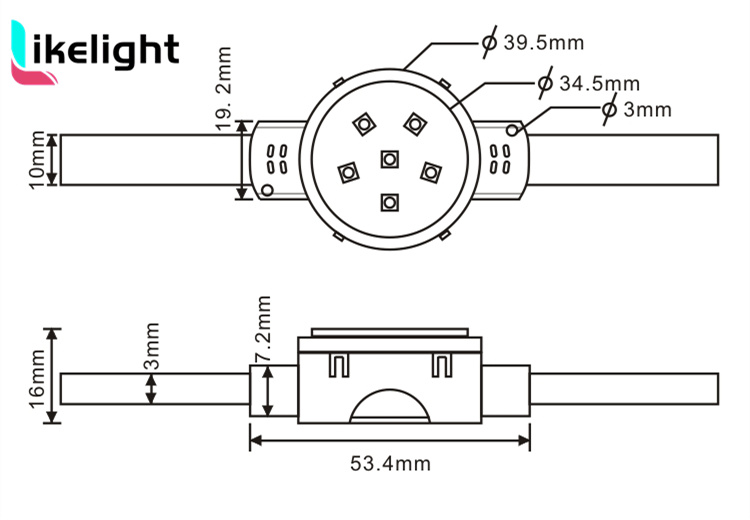

Dimension drawing

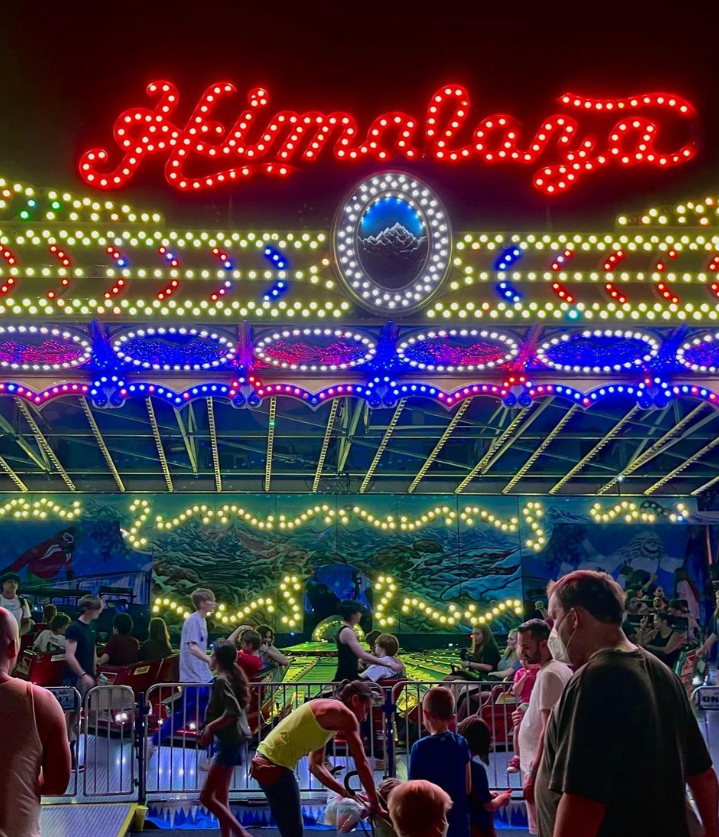

Scene application diagram
The 40mm 6led pixel LED designed for
outdoor amusement park lighting,
Ferris wheels,
Outdoor signboard
Casino Sign
Amusement park rides
Playground fair lighting
Game machine, traveling funfair
Funfair playground, waltzer land.
