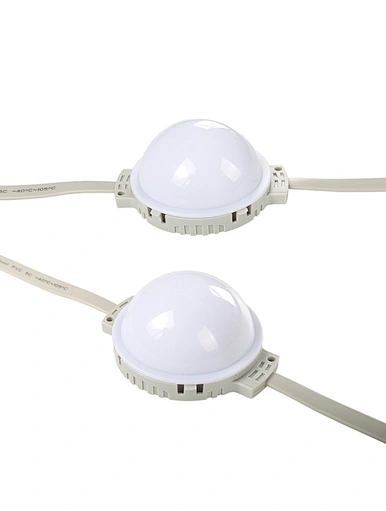

80mm 12LEDs RGB DMX Waterproof LED Pixel Module
| Item | Specification |
|---|---|
| Product Name | 80mm DMX Waterproof LED Pixel Module |

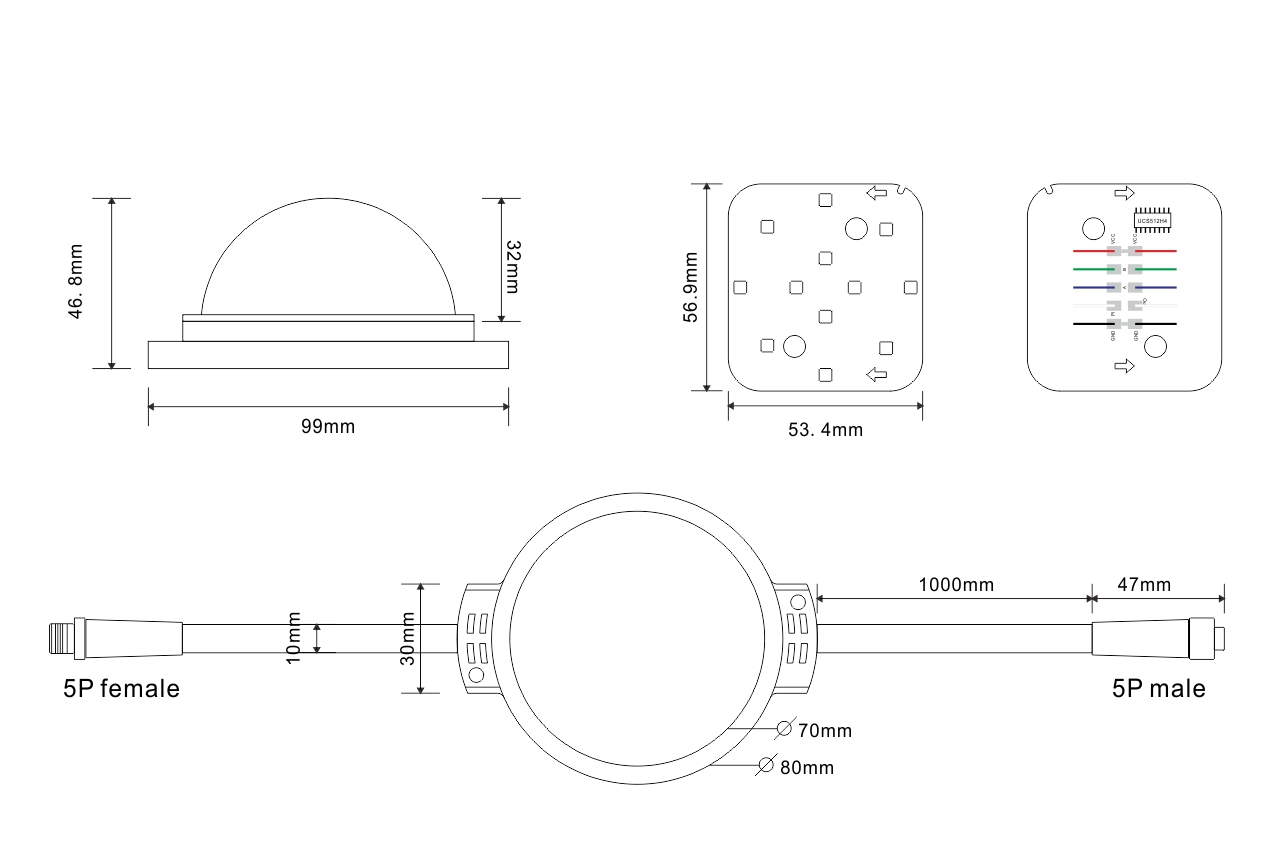

| Diameter | 80 mm |
| LED Quantity | 12 LEDs |
| LED Type | SMD3535 RGB |
| Control Type | Addressable (DMX512) |
| Operating Voltage | DC24V |
| Waterproof Rating | IP65 / IP67 (specify) |
| Power Consumption | (specify W/pc) |
| Beam Angle | 180° / wide angle |
| Housing Material | (specify PC/ABS if available) |
| Cable Type | 2-core/4-core waterproof cable |
| Installation | Screw mounting / bracket |
| Lifetime | ≥ 50,000 hours |
| Working Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +80℃ |
🔹 1️⃣ Product Overview
Product Overview
This 80mm DMX addressable LED pixel module features 12pcs SMD3535 RGB LEDs with high brightness and stable color output. Designed for professional outdoor decorative lighting projects, it supports DMX control for synchronized animation effects and dynamic color patterns. With DC24V operation and waterproof housing, it is suitable for long-term exterior installations.
🔹 2️⃣ Application Scenarios
Application Scenarios
This waterproof DMX pixel module is widely used for:

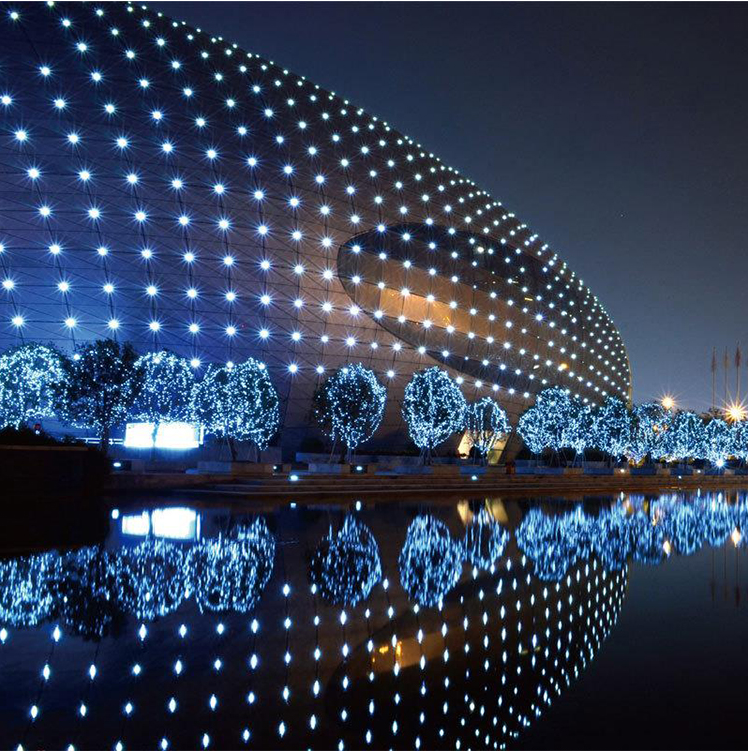

Building façade and outline lighting
Outdoor signage and advertising lighting
Amusement park decorative lighting
Stage and event background effects
Architectural accent and media façade projects
DMX control ensures stable performance and easy integration in large lighting systems.
🔹 3️⃣ DMX Addressable Control Advantage
DMX Addressable Control
Unlike standard SPI pixel modules, DMX control is commonly used in professional lighting projects because it provides:
Stable long-distance signal transmission
Better synchronization for large-scale installations
Compatibility with DMX512 lighting controllers
Easy programming for dynamic effects
DMX pixel modules are ideal for architectural and entertainment lighting systems.
🔹 4️⃣ DC24V Benefits
Why DC24V Pixel Modules
DC24V helps reduce voltage drop across long wiring distances, ensuring more consistent brightness and stable performance in large outdoor projects.
