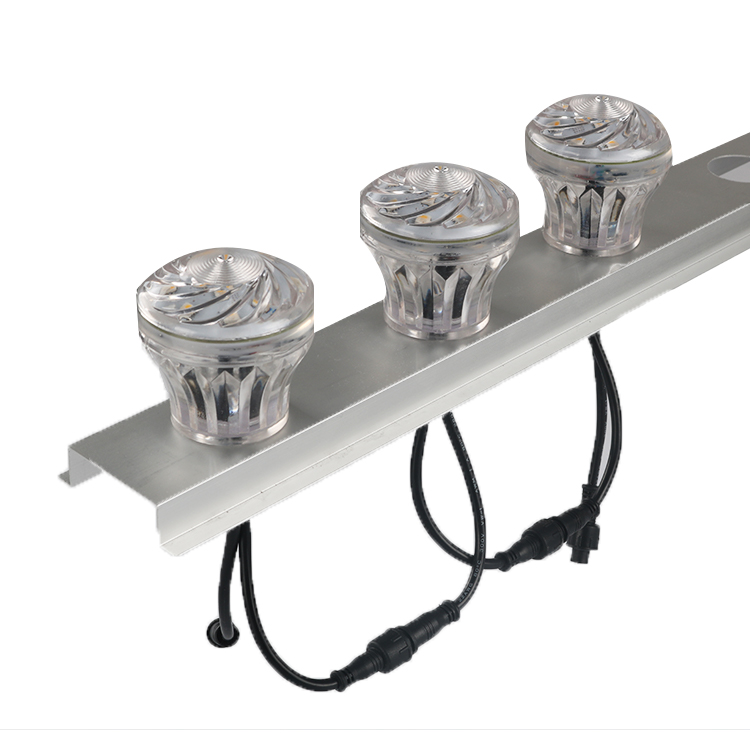

60mm Cabochon Amusement Light

L-D-6018
Lighting Source :	18PCS SMD5050 RGB LED
IC Chip :	UCS2903
Beam Angel :	360 Degree
Voltage Input :	DC 24V
Wattage :	4.32 Watt (max)
Diameter(mm) :	60 mm
Connector :	JST / PVC connector
Waterproof Grade :	IP67 / IP65
Lifetime :	50000H
Working Temp :	-20℃-60℃

Product Feature:

• 1-Separate control :18PCS LED pixel light (front side with 12pcs LEDs , back side with 6pcs LEDs)and 1IC (UCS1903).
• 2-Cover : 60mm spiral cover or line cover can be selected.
• 3-The connectors can be JST non waterproof plug or waterproof plug.Male with Pin input ,Female with Pin output
• 4-Different installation methods can constitute different dynamic effects of different color characteristics and designs.
• 5-It has the characteristics of high brightness, low power consumption, long life, low attenuation and rich color.

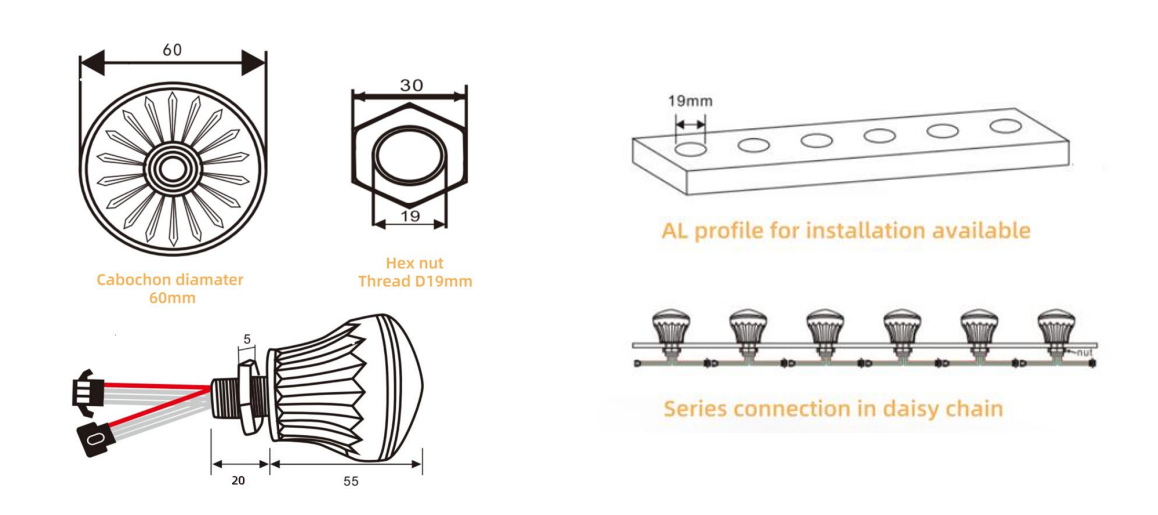

Dimension Structure：

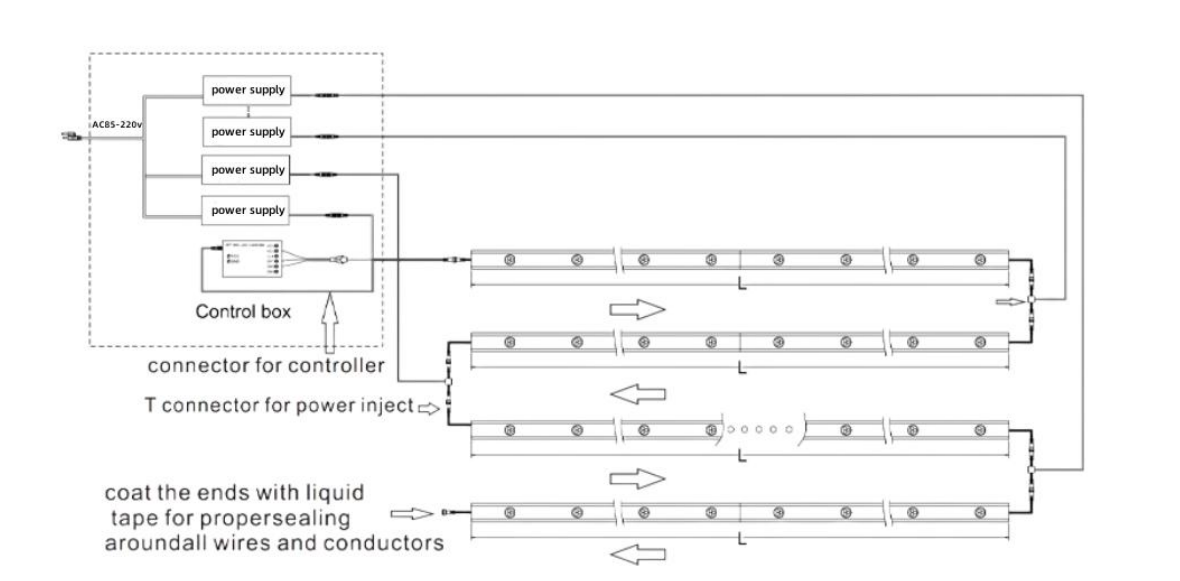

How to connect:

Accessories :

Meanwell Power supply -waterproof/non waterproof -AC110/230V-DC5-48V	Cable Accessories - Extension Jumper - T-type power inject , Y cable - Male or female pigtails 2/3 pin	Electrical Box - With air vent without fan - Air vent with fan - No air vent and fan is installed	SD Card Controller - LEDedit Software making effect -Effect -Multi color function -A variety of controllers are available

Application Case :

outdoor amusement park lighting,
Ferris wheels,
Outdoor signboard
Casino Sign
Amusement park rides
Playground fair lighting
Game machine, traveling funfair
Funfair playground, waltzer land

If you're not sure which light  is best for your project or need help with layout configuration, please call us at LIKELIGHT:+86-755-23328395, email :contact@like-light.com.We can provide you with complete design and manufacturing services to meet your specific needs and requirements.
