RGBW
84leds/m DC24v TM1814 RGBW programmable Flexible led strip light
L-S-10084-TM1814-10MM
IC CHIP :TM1814
LED QTY/m: 84LEDs/m
Package :5m per roll or customized
Certification: CE,RoHs
Beam Angel: 120 degree
Standard length: 1m
Waterproof Grade: IP20/65/68
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
Warranty: 2 years
LED QTY/m: 84LEDs/m
Package :5m per roll or customized
Certification: CE,RoHs
Beam Angel: 120 degree
Standard length: 1m
Waterproof Grade: IP20/65/68
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
Warranty: 2 years
Quantity
Product Description

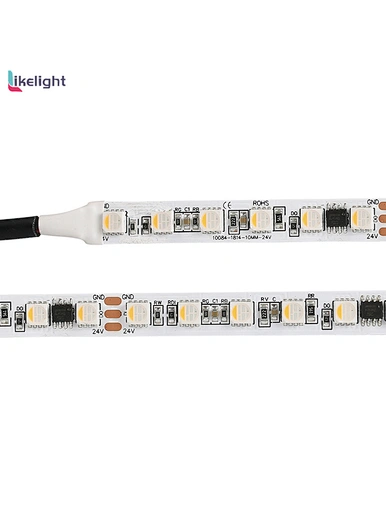

1This flexible LED Strip soldered with 84pcs SMD5050 RGBW LEDs per meter
2The external IC chip is TM1814
3The color temperature can be customized (WW/CW/pure white for optional)
4 10mm width FPC in white/black color, cut-able every 3LEDs for 12V/ 6LEDs for 24V
5. PCB thickness is 1+1 Ounce cooper
6. All soldering pads are very large, allowing you to cut easily and reconnect DC12V/24V constant voltage operation, both ends have bare wire for Powering
7.3M tape/ blue high temperature resistant tape on back side of FPC
8.5m per roll, 3 different waterproof types IP20, IP65, IP68

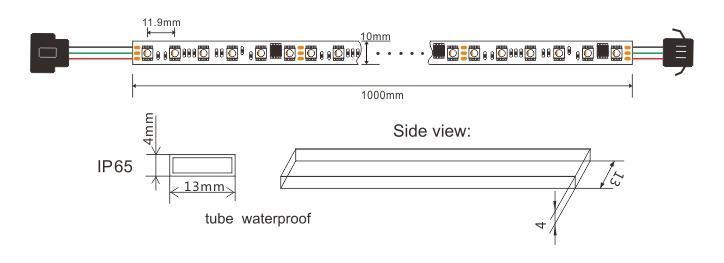

Dimension

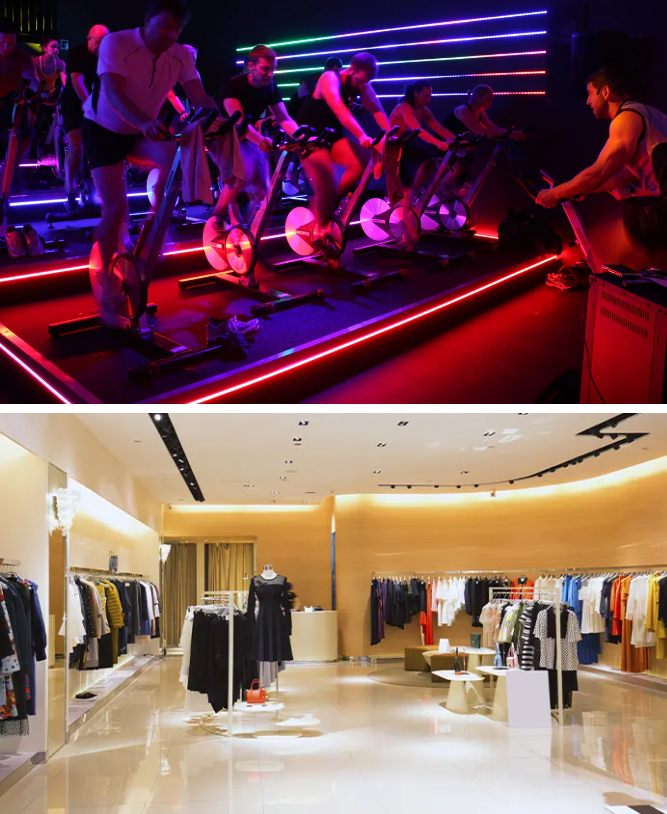

Application
/5
