LED Strip Light
12V 24V 60 LEDs UCS1903 Waterproof Addressable Smart Led Light Strip
L-S-UCS1903-10060
Part No.: L-S-UCS1903-10060
PCB width (mm): 10mm
PCB color: black/white
IC chip: UCS1903/WS2811
Lighting Source: RGB SMD5050 LED CHIP
Operate Voltage: DC12V/24V
Wattage: 14.4W/m
Beam Angel: 120 degree
Standard length: 5m
Waterproof Grade: IP30/IP65/IP67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
PCB width (mm): 10mm
PCB color: black/white
IC chip: UCS1903/WS2811
Lighting Source: RGB SMD5050 LED CHIP
Operate Voltage: DC12V/24V
Wattage: 14.4W/m
Beam Angel: 120 degree
Standard length: 5m
Waterproof Grade: IP30/IP65/IP67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1. DC12V/24V programmable UCS1903/WS2811 RGB pixel strip.
2. For DC12V, 60 LEDs/m, 20 pixels/m, 3 LEDs control per section; For DC24V, 60 LEDs/m, 10 pixels/m, 6 LEDs control per section.

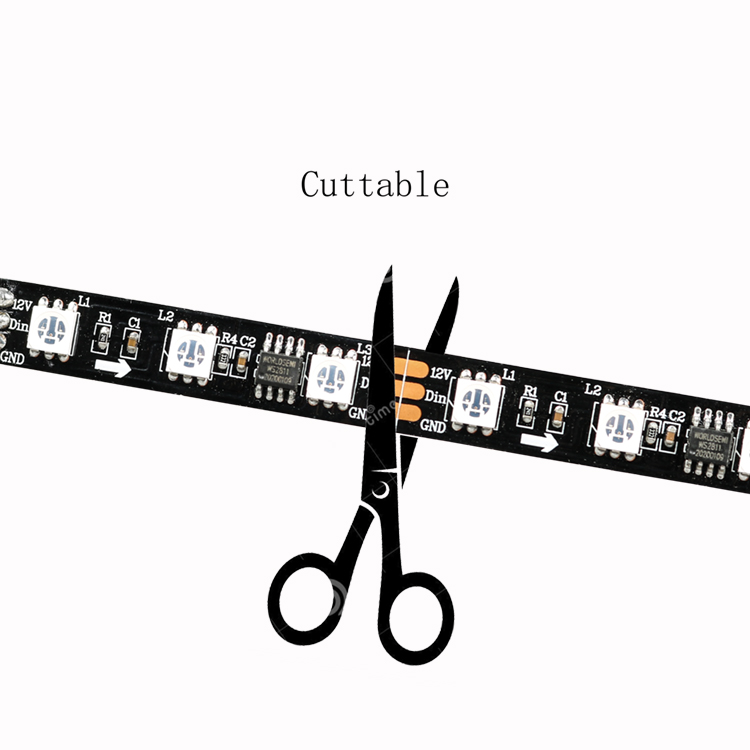

3. Can be cut or joined at each copper tab.
4. 3M adhesive double side tape on the rear.
5. Non-waterproof, waterproof ip65 with silicone tube or silicone glues, waterproof ip67 with silicone tube and glues.

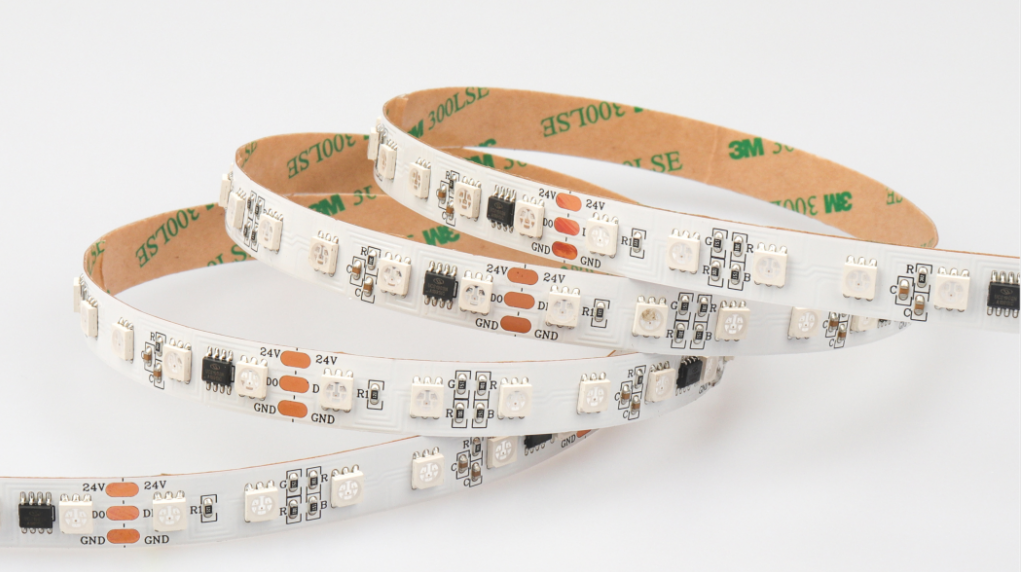

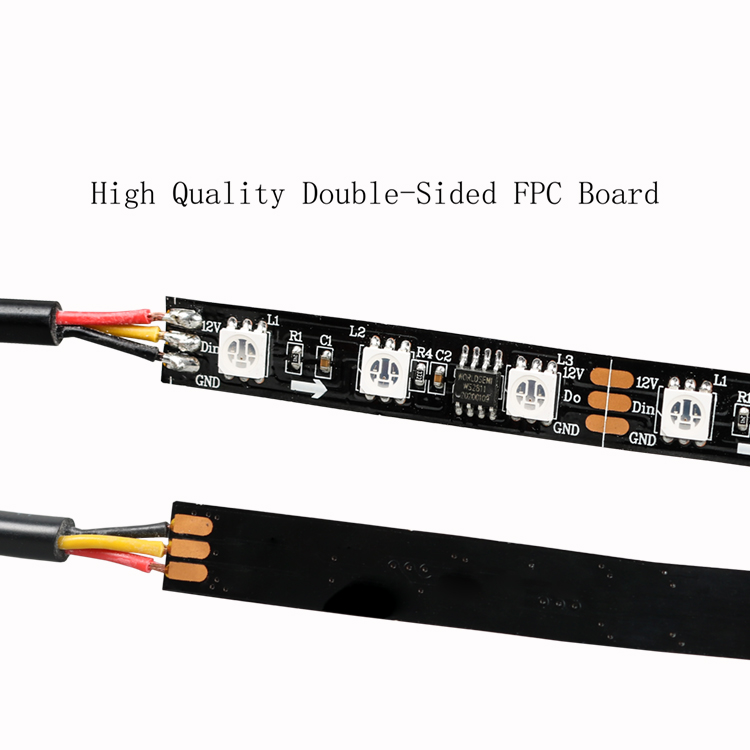

6. White PCB or black PCB, usually 2 Oz; can do 3 Oz, to offer more durability, better heat dissipation and reduced voltage drop.
7. 30 LEDs/m and 60 LEDs/m for option.
8. Suitable for Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display, etc!
Product details
Applications
They are awesome for Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display, etc.
