LED Strip Light

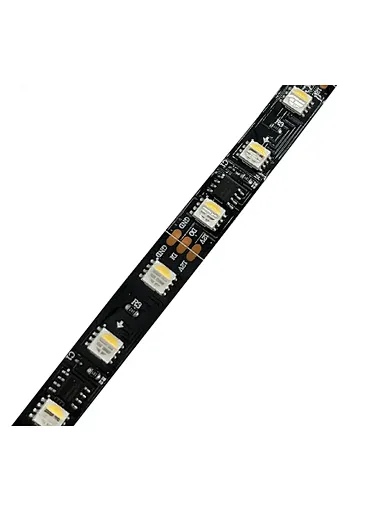

DC12V 24V UCS2904 RGBW smd5050 programmable pixel strip
L-S-UCS2904RGBW
Part No.: L-S-UCS2904RGBW
PCB width (mm): 10mm
PCB color: black/white
IC chip: UCS2904
Lighting Source: RGBW SMD5050 LED CHIP
Operate Voltage: DC12V/24V
Wattage: 19.2W(60 LEDs)
Beam Angel: 120 degree
Standard length: 5m
Waterproof Grade: IP30/IP65/IP67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
PCB width (mm): 10mm
PCB color: black/white
IC chip: UCS2904
Lighting Source: RGBW SMD5050 LED CHIP
Operate Voltage: DC12V/24V
Wattage: 19.2W(60 LEDs)
Beam Angel: 120 degree
Standard length: 5m
Waterproof Grade: IP30/IP65/IP67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1. DC12V/24V programmable UCS2904 RGBW pixel strip.
2. For DC12V, 60 LEDs/m, 20 pixels/m, 3 LEDs control per section; For DC24V, 60 LEDs/m, 10 pixels/m, 6 LEDs control per section;
3. Can be cut or joined at each copper tab.
4. 3M adhesive double side tape on the rear.
5. Non-waterproof, waterproof ip65 with silicone tube or silicone glues, waterproof ip67 with silicone tube and glues.
6. White PCB or black PCB, usually 2 Oz, can do 3 Oz, to offer more durability, better heat dissipation and reduced voltage drop.
7. Standard length is 5m/roll, custom length is available.
8. There is white chip in the RGBW LEDs, the white of RGBW can be warm white(2800-3200K), neutral white(4000-4500k) or cool white(6000-6500K).
9. Suitable for Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display, etc!
Product details
Applications
They are awesome for Home, Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display, etc.
