LED Strip Light
Side view SK6812 addressable mini 4020 RGB pixel LED strips
L-S-SK6812-RGB-4020-10090
Part No.: L-S-SK6812-RGB-4020-10090
PCB width (mm): 5mm
PCB color: black/white
IC chip: SK6812
Lighting Source: RGB SMD4020 LED CHIP
Operate Voltage: DC5V
Wattage: 27W
Beam Angel: 120 degree
Standard length: 2.5m
Waterproof Grade: IP30/IP65
Lifetime: 50000H
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
PCB width (mm): 5mm
PCB color: black/white
IC chip: SK6812
Lighting Source: RGB SMD4020 LED CHIP
Operate Voltage: DC5V
Wattage: 27W
Beam Angel: 120 degree
Standard length: 2.5m
Waterproof Grade: IP30/IP65
Lifetime: 50000H
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1. DC5V addressable SK6812 RGB pixel strip.
2. 60/90/120/144 LEDs/m, 60/90/120/144 pixels/m, 1 LEDs control per section.

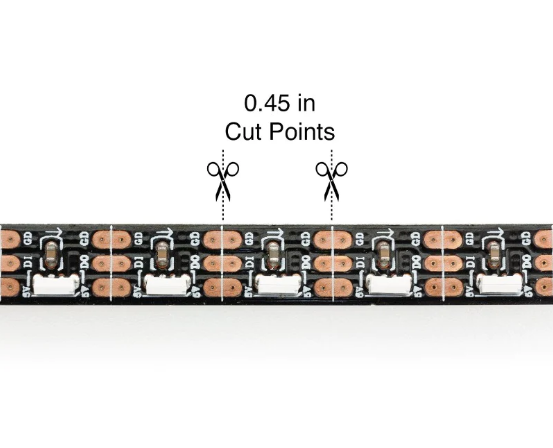

3. Can be cut or joined at each copper tab.
4. 3M adhesive double side tape on the rear.
5. Non-waterproof, waterproof ip65 with silicone tube or silicone glues.
6. White PCB or black PCB, usually 2 Oz, can do 3 Oz, to offer more durability, better heat dissipation and reduced voltage drop.
7. So thin, so slim, so skinny, the width of the PCB is only 5mm.
8. Side emitting, the light comes out the thinner edges of the strip, not comes out the “front”.
9. Suitable for accent lighting, back lighting, edge lighting, etc!
Product details
Applications

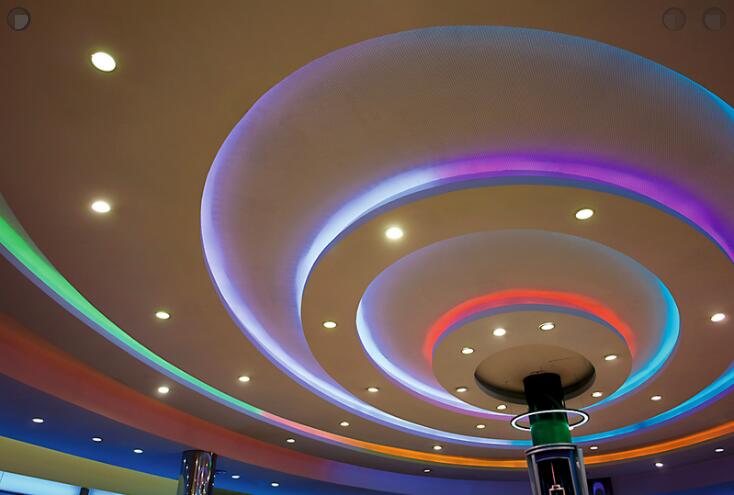

They are awesome for accent lighting, back lighting, edge lighting, etc!
