Side light SK6812 WS2811 144 LEDs addressable 4020 RGB pixel LED strips

Side Emitting SK6812 144 LEDs/m Addressable 4020 RGB Pixel LED Strip

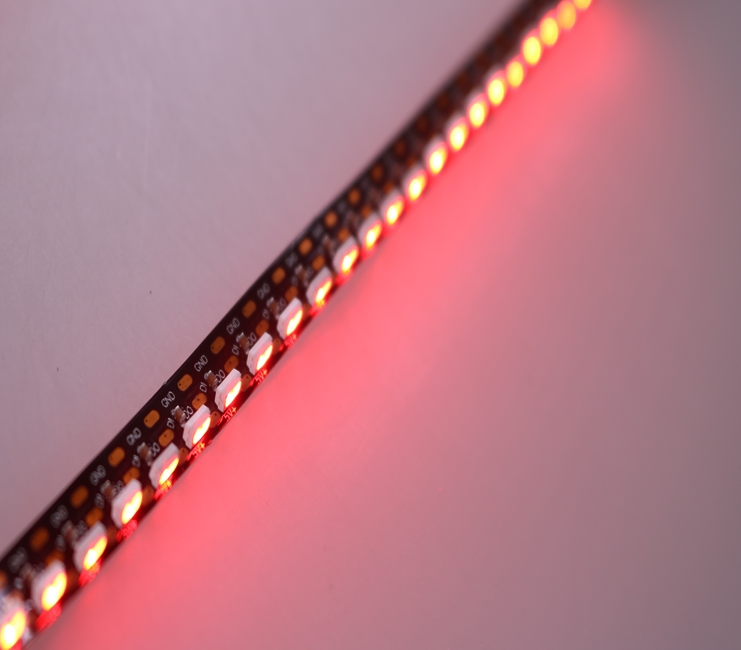

Likelight's side emitting SK6812 LED strip delivers vivid, addressable RGB lighting through the thin edge of the PCB, making it the ideal choice for edge lighting, backlighting, and accent lighting applications where traditional top-emitting strips cannot reach.

Key Features

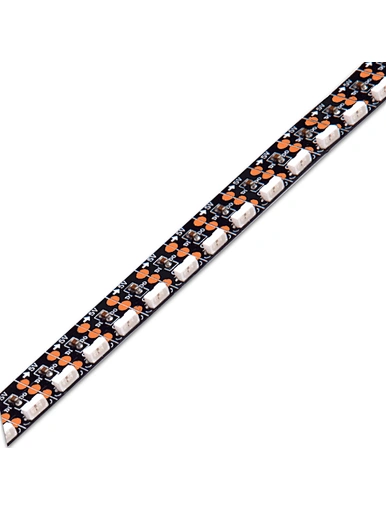

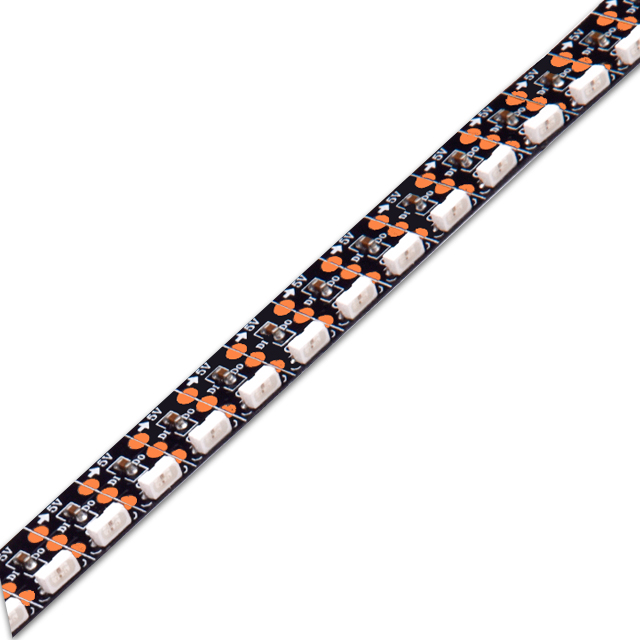

• Side Emitting Design — Light emits from the narrow edge of the 8mm PCB, not the front surface, enabling seamless integration into slim channels, signage, and backlit panels.
• SK6812 IC Chip — Each LED is individually addressable, supporting dynamic color animations and pixel-by-pixel control via standard PWM signal.
• SMD 4020 RGB Chip — High-efficiency 4020 package delivers uniform side lighting with a 120° beam angle.

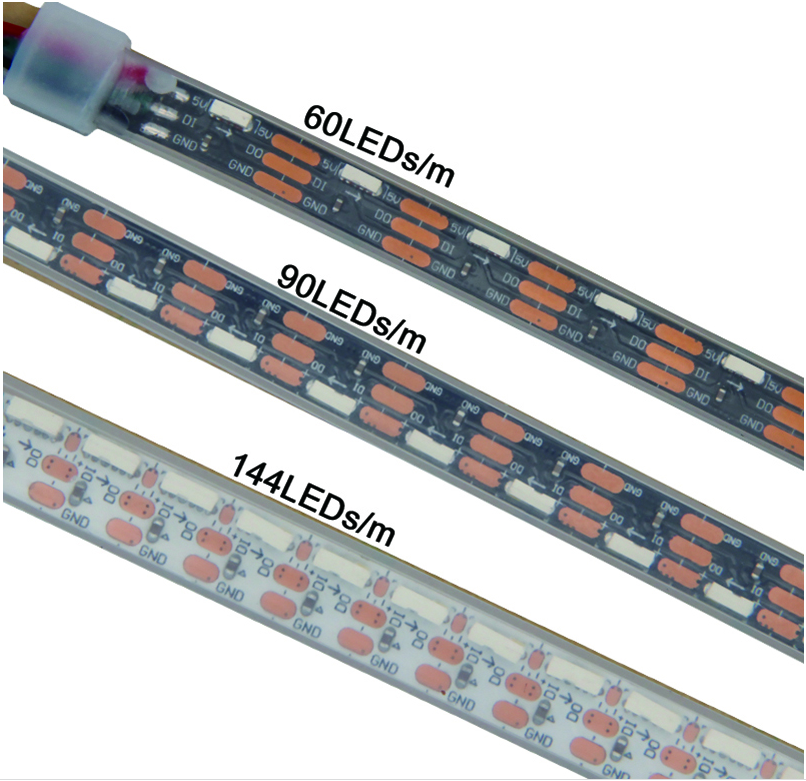

• Ultra-High Density — 144 LEDs/m for the smoothest, highest-resolution lighting effects available in this strip series.
• DC5V Low Voltage — Safe, energy-efficient, and compatible with most addressable LED controllers.
• Flexible PCB — 8mm wide, ultra-slim design; can be cut at every copper tab and rejoined as needed.
• 3M Adhesive Backing — Pre-applied double-sided tape for fast, clean installation.
• Waterproof Options — IP30 (non-waterproof), IP65 (silicone tube or silicone coating) available.
• High-Quality PCB — Standard 2 Oz copper; 3 Oz available for better heat dissipation and reduced voltage drop over long runs.
• Long Lifespan — Rated 50,000 hours for reliable, long-term performance.

Specifications

Applications

• Architectural edge lighting
• Display cabinet accent lighting
• Slim panel & lightbox edge illumination
• TV / monitor bias lighting
• Stair & shelf underlighting

OEM & Custom Orders Welcome

We support custom PCB color, LED density, reel length, connector type, and waterproof level. Contact us for samples or bulk pricing.
