LED Strip Light
DC12V addressable WS2815 30 60 144 data backup flex pixel LED strip
L-S-WS2815
Part No.: L-S-WS2815
PCB width (mm): 10mm(for 30/60 LEDs), 12mm(for 144 LEDs)
PCB color: black/white
IC chip: WS2815
Lighting Source: RGB SMD5050 LED CHIP
Operate Voltage: DC12V
Wattage: 9W(for 30 LEDs), 18W(for 60 LEDs), 43.2W(for 144 LEDs)
Beam Angel: 120 degree
Standard length: 5m(for 30/60 LEDs), 1m(for 144 LEDs)
Waterproof Grade: IP30/65/67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
PCB width (mm): 10mm(for 30/60 LEDs), 12mm(for 144 LEDs)
PCB color: black/white
IC chip: WS2815
Lighting Source: RGB SMD5050 LED CHIP
Operate Voltage: DC12V
Wattage: 9W(for 30 LEDs), 18W(for 60 LEDs), 43.2W(for 144 LEDs)
Beam Angel: 120 degree
Standard length: 5m(for 30/60 LEDs), 1m(for 144 LEDs)
Waterproof Grade: IP30/65/67
Lifetime: 50000 hours
Working temperature: -20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description

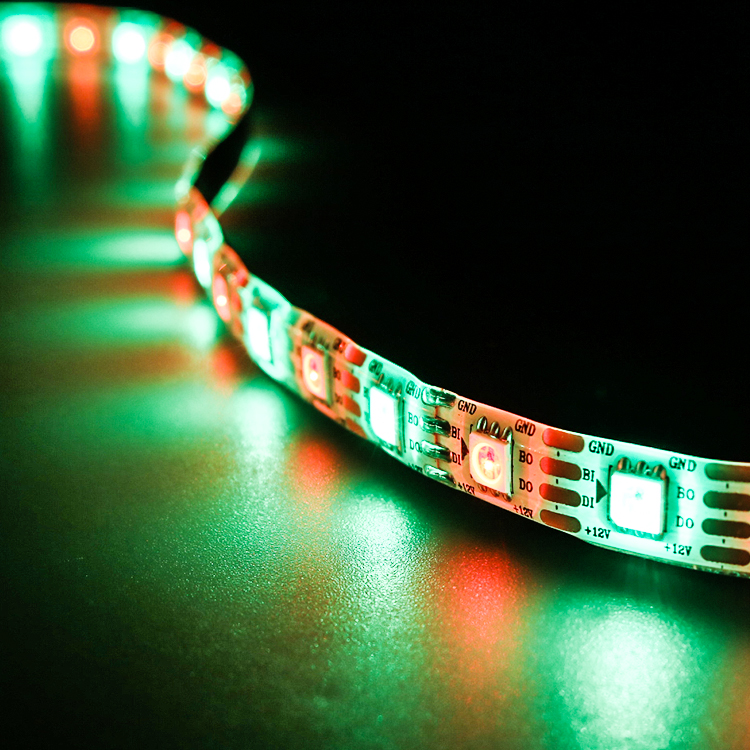

1. DC12V addressable WS2815 RGB pixel strip.
2. 30/60/144 LEDs/m, 30/60/144 pixels/m, 1 LEDs control per section.
3. Can be cut or joined at each copper tab.
4. 3M adhesive double side tape on the rear.

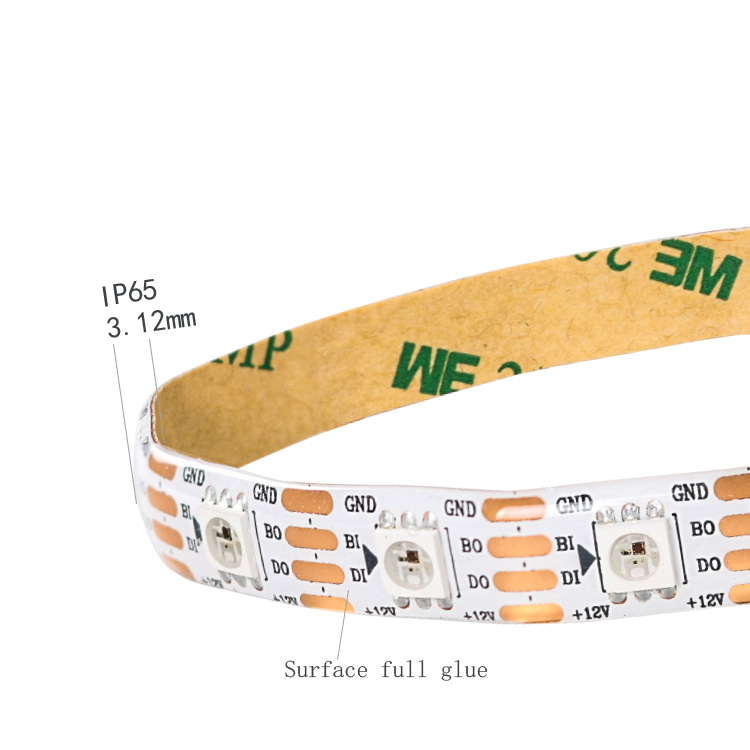

5. Non-waterproof, waterproof ip65 with silicone tube or silicone glues, waterproof ip67 with silicone tube and glues.
6. White PCB or black PCB, usually 2 Oz; can do 3 Oz, to offer more durability, better heat dissipation and reduced voltage drop.
7. 30 LEDs/m, 60 LEDs/m and 144 LEDs/m for option.

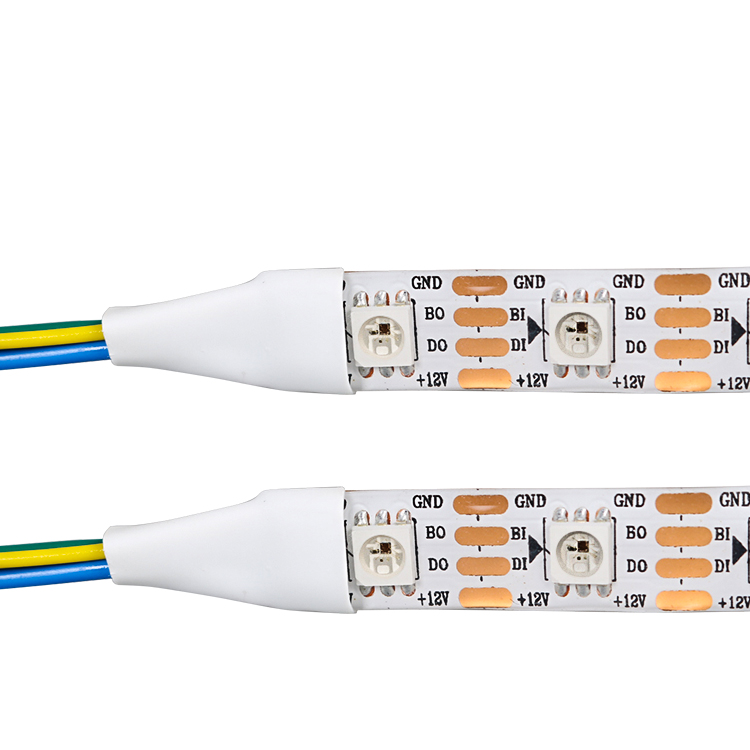

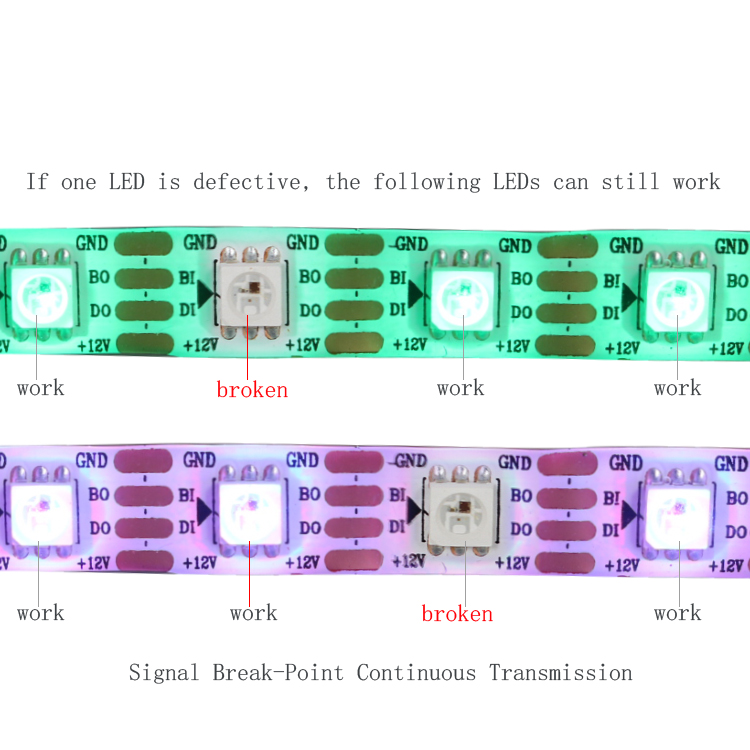

8. 2pcs data wires, with signal break-point continuous transmission.
9. Suitable for Home, Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display, etc.
Product details
Applications

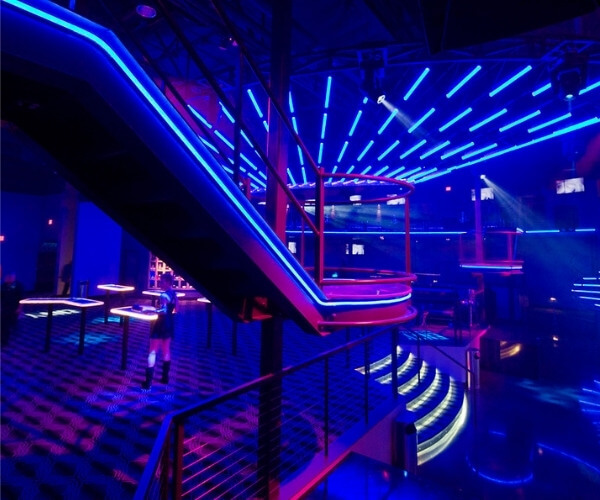

They are awesome for Home, Fitness Studios, Leisure, Residential,Hospitality, Events & Exhibitions, Retail Display, etc.
