DC24V UCS2903 RGB Waterproof Colorful LED pixel Light
L-D-6018-Bottle light
Product Name :DC24V Forest breathing lamp
Beam Angle:360 Degree
IC Chip:UCS2903/UCS1903
Diameter:158mm*250mm*80mm
Lighting Source:18pcs SMD5050 RGB LED
Consumption Watt/PCS:4.32 W (max)
Shell material:PVC
Applicable scene: outdoor engineering lighting, hotel, festival decoration
Lifetime:≥50000H
Waterproof Grade:IP20/IP67
Working Temperature:-40°C - 80°C
Storage Temperature:-10°C - 50°C
Beam Angle:360 Degree
IC Chip:UCS2903/UCS1903
Diameter:158mm*250mm*80mm
Lighting Source:18pcs SMD5050 RGB LED
Consumption Watt/PCS:4.32 W (max)
Shell material:PVC
Applicable scene: outdoor engineering lighting, hotel, festival decoration
Lifetime:≥50000H
Waterproof Grade:IP20/IP67
Working Temperature:-40°C - 80°C
Storage Temperature:-10°C - 50°C
Quantity
Product Description
1. Individually control: 1PCS LED pixel & 1IC (UCS2903).
2. Color and effect: addressable lights you can set to any color, or animate, like running water, chasing and scanning etc.
3. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables.
4. Waterproof IP66, with silicon glue waterproof protection.
5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6. Power supply should use a 24V DC power supply to power this pixel, do not use higher than 25V or it will burn the pixel.
7. Connectors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC24V+, GND.

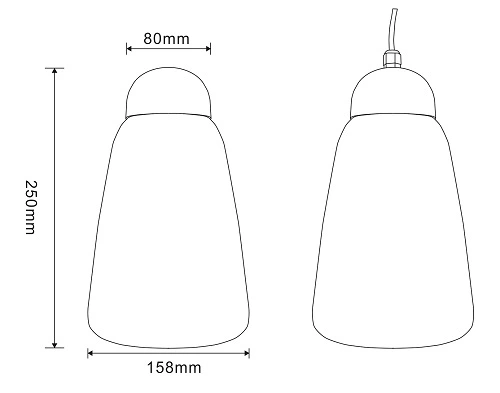

Dimensions

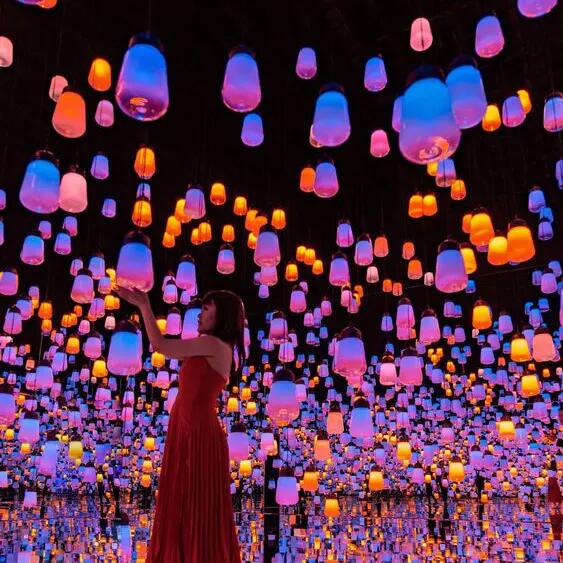

Applications
Outdoor signboard Casino Sign Amusement park lighting Playground fair lighting Game machine
