LED Rigid Lights
DC24V waterproof RGBW led bar aluminum profile led pixel tube light
L-R-10060-RGBW-24V
LED Type:SMD5050 RGBW LED
PCB width:12mm
LED Qty:60LEDs/m
Length:0.5M, 1M or customized
Voltage:DC12V/24V
Beam Angel:120 degree
Consumption Watt/M:19.2Watt (max)
Pixel Pitch (mm):P16.67cm
PCB Color:White
Waterproof Grade:IP20/ IP67
Working temperature:-20℃-60℃
Storage temperature:-30℃-80℃
PCB width:12mm
LED Qty:60LEDs/m
Length:0.5M, 1M or customized
Voltage:DC12V/24V
Beam Angel:120 degree
Consumption Watt/M:19.2Watt (max)
Pixel Pitch (mm):P16.67cm
PCB Color:White
Waterproof Grade:IP20/ IP67
Working temperature:-20℃-60℃
Storage temperature:-30℃-80℃
Quantity
Product Description
1. This is one flexible led strip inside of the aluminum profile, the PCB width is 12mm;
2. The standard length is 0.5m/1m, or customized less than 2meters, it's too difficult for transportation to ship;
3. It is RGBW type without IC inside, the color temperature for W can be customized, 3000k/4500k/6000K...etc.;
4. It can be 12V or 24V for optional, 12V= every 3LEDs as one group can be cut, while 24V= every 6LEDs can be cut;
5. The waterproof rate is IP67, with injection glue and cover for aluminum profile

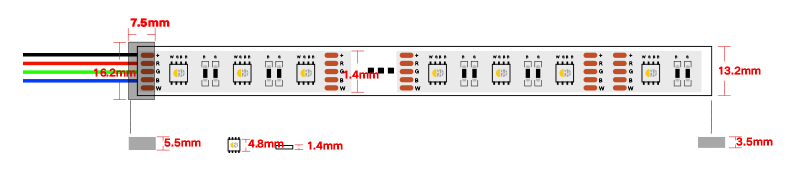

Dimensions

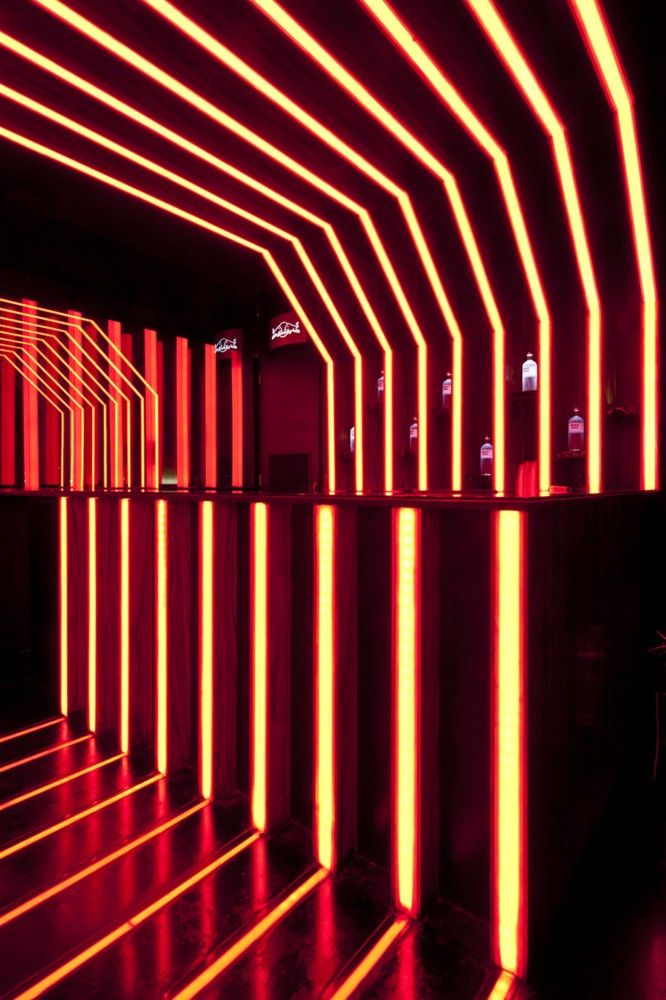

Applications
Stage, KTV, DJ, Bar, home, hotel, Indoor outdoor decorateion
