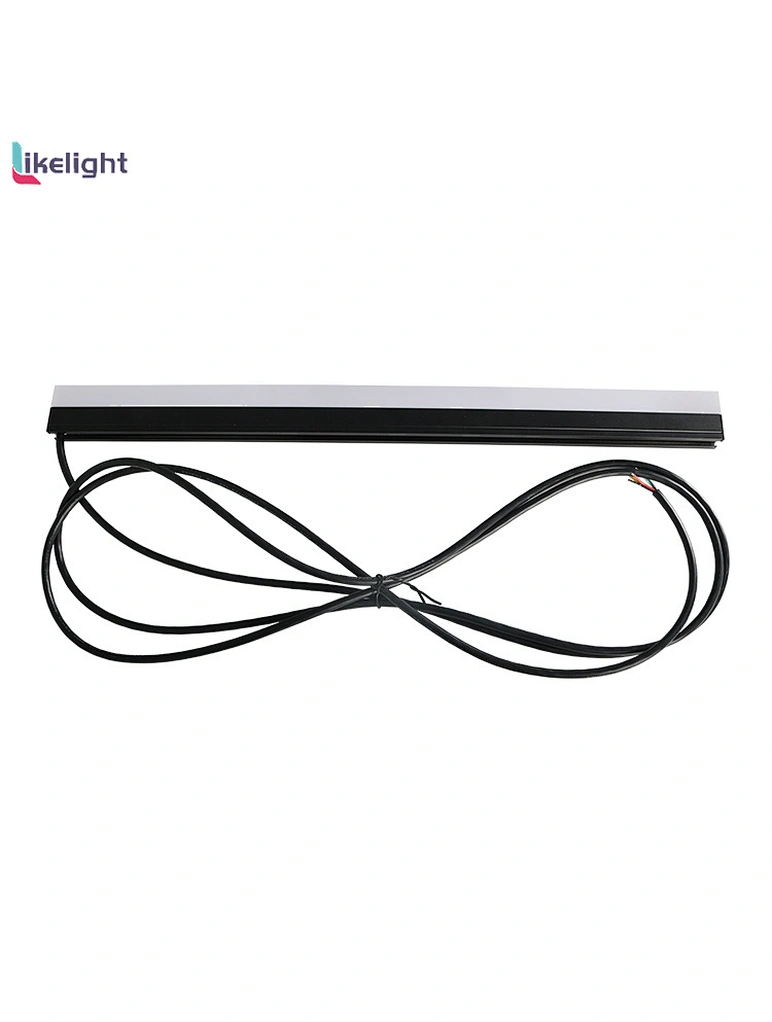

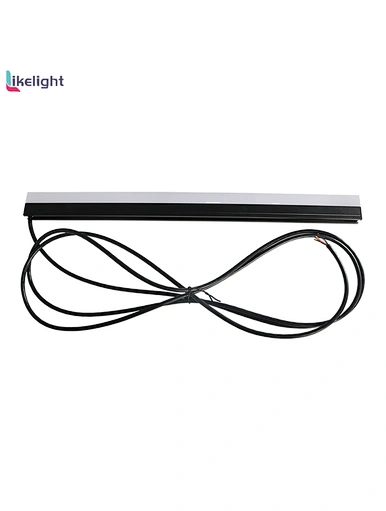

DMX512 24V 96 Leds 3535 RGB Led Digital Addressable Linear Light IP68 36W mercial facades landscape lighting

1. The led bar is standard DMX512 protocol, ucs512 IC chip included, directly work with Artnet DMX controller and Madrix.

2.The whole bar is waterproof IP67, good for outdoor& indoor application.Designed with good quality aluminum case. Injected with good PU A/B glue.Assembled with a pair of waterproof female/male connector.

3. 96leds/m, 16pixels/m, 1IC control 6leds as a segment, 6leds change color together.RGB 3 channel, 1meter led bar has 48 channel address.

4. Low voltage  DC24V input, no polarity protection, don’t over 25V or short circuit,otherwise you can destroy the led light.

5. Each bar included 2pcs moveable aluminum holder for installation.

6. The bar is not auto-addressable, need DMX code writer to write the address.

7. The led bar didn't attach any T cable connectors for power feeding, it request to purchase seperately. And we recommend every 5M bar supply power.

8. There are two options: one is Aluminum housing without PVC cover, the other is Aluminum housing with PVC cover.

9. 0.5m, 1m, 1.5m, 2m is workable.
