LED Chain Light
30mm RGBW UCS2904 LED Pixel Light 12V Permanent Christmas Track Lights
L-C303-UCS2904
Part NO： L-C30-UCS2904-RGBW
Diameter (mm) : 30 mm
IC chip: UCS2904
Lighting Source: RGBW SMD 5050 LED CHIP
Operate Voltage : DC12/ 24V/48V optional
Wattage : 0.96W/pc
Beam Angel :180 degree
Length: standard 20pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Diameter (mm) : 30 mm
IC chip: UCS2904
Lighting Source: RGBW SMD 5050 LED CHIP
Operate Voltage : DC12/ 24V/48V optional
Wattage : 0.96W/pc
Beam Angel :180 degree
Length: standard 20pcs/chain with 8cm spacing ,or customizable
Waterproof Grade: IP67
Lifetime :50000H
Working temperature :-20℃-60℃
Storage temperature: -30℃-80℃
Quantity
Product Description
1.Control : Seperate control, 1 PCS LED pixel light and 1IC (UCS2904)
2. Waterproof : IP68, with silicone waterproof protection.
3. Installation: Aluminum profil or screw , the best drill holes of profil about 30-31mm.
4. Power supply: 12v/24v/48v DC power must be used to power the pixel.
5. Connectors :3PIN JST female/male connector, also can be waterproof connector, DAT, DC12V+, GND-, each led pixel is separate, you can easily connect them one by one through the male female connector.
6. It has the characteristics of high brightness, low power consumption, long life, low voltage, low attenuation and colorful
7.SMD5050 rgbw led pixel module can achieve full color water, chasing, scanning and othereffects.
8. Different installation methods can constitute different dynamic effects of different color characteristics and designs.

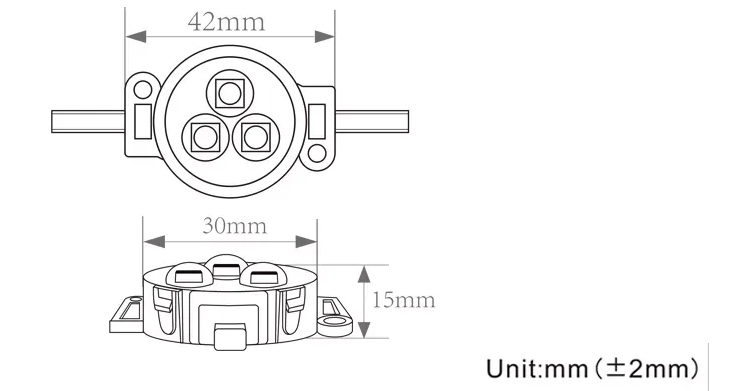

Dimensions
Applications
