Mechanical structure characteristic
mechanical structure characteristics
First, mechanical structure characteristics

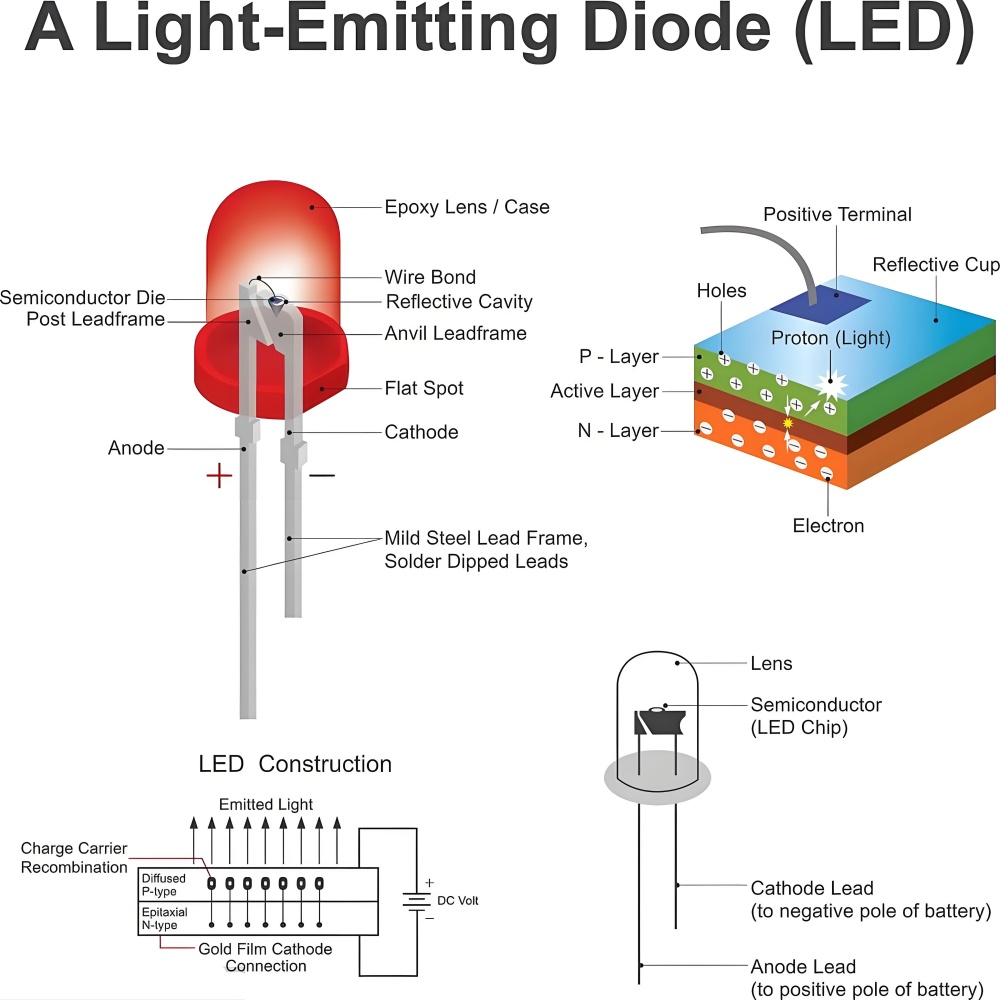

1.1 Encapsulation architecture type
| Encapsulation form | Structural feature | Mechanical strength index | Typical application scenario |
| Lamp type | Epoxy coated + metal leads | Bending strength <5N | Pilot light, decorative lighting |
| SMD type | Ceramic/metal substrate + silicone package | Shear strength >10N/mm² | Backlight, general lighting |
| COB type | The multiple chips are directly bound to the aluminum substrate | Strong thermal mechanical stress tolerance | High power lighting |
| CSP type | Bracket less chip-level package | Excellent impact resistance | Miniature display, car lights |
1.2 Key mechanical parameters
- Wire bonding strength: Gold wire bonding force >5g (MIL-STD-883 standard)
- Package hardness: silica gel package Shore hardness is usually A50-70
- Coefficient of thermal expansion (CTE) matching:
The CTE difference between the chip (7ppm/℃) and the substrate (6-20ppm/℃) should be less than 5ppm/℃
Two.Mechanical properties of materials
2.1. Packaging material performance comparison
| Material type | Elastic modulus (GPa) | Fracture toughness (MPa·m¹/²) | Maximum operating temperature |
| Epoxy resin | 2.5-3.5 | 0.6-1.0 | 120 ℃ |
| Organic silica gel | 0.01-0.1 | 0.3-0.5 | 200 ℃ |
| Glass package | 70-90. | 0.7-1.2 | 500 ℃ |
2.2 Mechanical properties of substrate materials
- Alumina ceramics: bending strength 300-400MPa, thermal conductivity 25W/mK
- Aluminum nitride ceramics: bending strength 350-450MPa, thermal conductivity 180W/mK
- Aluminum substrate: tensile strength 150-200MPa, CTE 23ppm/℃
Third, environmental mechanical reliability
3.1 Vibration and shock test standards
| Test type | Condition parameter | Acceptance standard |
| Random vibration | 20-2000Hz, 10Grms | No structural damage |
| Mechanical impact | 1500G, 0.5ms half sine wave | Electrical properties change <5% |
| Drop test | 1.5m height free fall | Appearance intact |
3.2 Thermal mechanical reliability
Temperature cycle test:
- After 1000 cycles at -40℃~125℃, the light decay is less than 10%
- Main cause of failure: welding joint cracking caused by CTE mismatch
Thermal shock test:
- Liquid Nitrogen (77K)←→ Boiling water (373K) Fast switching
- Passed 500 test requirements
Four.Failure mode and mechanism
4.1 Typical mechanical failure
- Lead breakage: Metal fatigue due to vibration (following the Coffin-Manson model)
- Package cracking: Thermal stress induced interface delamination (JEDEC JESD22-A104 standard)
- Solder joint failure: Creep fatigue interaction (Darveaux model prediction)
4.2 Accelerated life model
Among them:
- Nf:Number of failure cycles
- Δεp:Plastic strain range
- Q:Activation energy (Gold wire bond contract 0.5eV)
five.Advanced mechanical technology
5.1 Stress resistance design
- Flexible interconnection: Copper column convex points instead of gold wire bonding (spacing <50μm)
- Stress buffer layer: Add silicone rubber transition layer (reduce interface stress by 40%)
5.2 Miniaturization technology
- 3D package: Chip stack thickness <0.5mm
- Embedded LED: directly packaged inside the PCB (60% thickness reduction)
Six. Test and standard system
6.1 Key test methods
- X-ray inspection: Observe the internal bond line topography (resolution <1μm)
- Acoustic microscope: Detection of package delamination defects (accuracy 50μm)
- Micro force tester: Measuring solder joint shear force (accuracy 0.1g)
6.2 International standards
- IEC 62031: General safety requirements for LED modules
- MIL-PRF-19500: High Reliability LED military standard
- JESD22-B104: Mechanical impact test specification
seven.Engineering application guide
Selection suggestion:
- High vibration environment: CSP or COB package is preferred
- High temperature environment: Choose aluminum nitride substrate + silicone package
Design criteria:
- Keep the CTE matching difference <3ppm/℃
- Avoid 90° sharp Angle structure (50% reduction in stress concentration factor)
Failure analysis:
- Thermal mechanical stress is simulated using finite element analysis (FEA)
- Implementation of Weibull distributed reliability prediction
Mechanical parameter curves for specific package types (such as SMD device vibration fatigue curves) or more in-depth failure case studies are available!
