Published Product Parameters

Control IC and System Compatibility

The listed control IC or option is DMX. It determines how the controller addresses lighting effects. Confirm the final IC, protocol, controller output, data direction, connector pinout and address plan together; fixtures with similar appearance can still be incompatible at system level.

Electrical and Power Planning

The published electrical load is 2.88 W per fixture at DC24V, equivalent to about 0.12 A per fixture. This is a planning value. Size the power supply, injection points and cable section from final quantity, route length, simultaneous white or full-colour loading and allowable voltage drop.

Protection and Installation

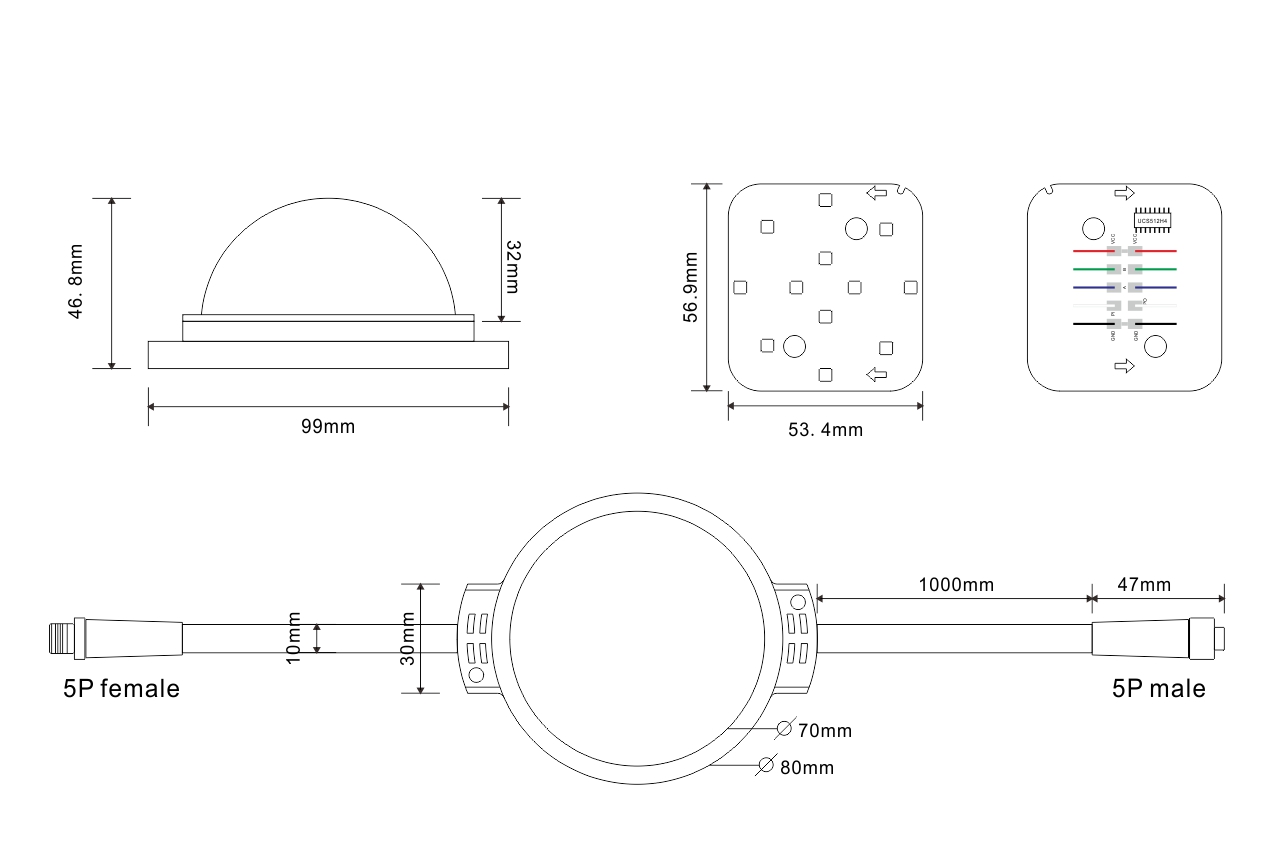

The published protection option is IP20 / IP65 options. Confirm the complete production build, including cable exit, connector, end treatment, mounting surface and any field joint. The published light structure is 12 pcs SMD3535 RGB LEDs; mechanical clearances, heat path and mounting layout must be released with the project drawing.

Commissioning and Acceptance

Before acceptance, test channel order, address map, programmed effects, full-load current, temperature and all connectors. Compare the delivered batch against the approved wiring drawing and sample effect before installation.

Application Fit

The product page identifies applications including KTV, disco, stage, channel letters, advertising signs, amusement rides, display screens, logos and exposed luminous characters. Select the final configuration from the actual site environment, not from the product name alone.

FAQ

Can it be customized? Confirm the final electrical configuration, dimensions or spacing, cable direction, connector, IP target, controller compatibility and order quantity before production.
