AC220V LED Wall Washer Light Guide: 24W/48W/96W Options for Outdoor Building Facades
AC220V LED Wall Washer Light for Outdoor Building Facade Projects
This guide explains how to evaluate an AC220V LED wall washer light for architectural lighting, building facade washing, bridge side lighting, canopy lighting and commercial outdoor projects. The product supports 24W/m, 48W/m and 96W/m power options, 48 LEDs/m, 60 degree lens and selectable 3000K, 4000K, 6000K or custom color temperature.
What Type of Project Is This Wall Washer Designed For?
An LED wall washer is normally used when a project needs a long and even beam of light across a wall, facade, bridge, column, canopy or architectural surface. Compared with small decorative pixel lights, a wall washer is chosen for higher output, wider wall coverage and more visible architectural illumination.
Building Facades
Suitable for exterior wall lighting, commercial building outlines, hotel facades and public architectural projects.
Bridges & Canopies
Linear fixture structure makes it suitable for bridge side lighting, archways, canopy edges and long structural surfaces.
Commercial Atmosphere
Can be used in amusement parks, theaters, corridors, stair accents and other projects requiring strong decorative light.
Core Product Parameters
For B2B buyers, the key is not only brightness. Voltage, power per meter, beam angle, housing structure, color temperature, connection method and installation layout should all be confirmed before sample or bulk order.
| Item | Product Information | Project Note |
|---|---|---|
| Product Type | Outdoor LED wall washer light | Used for facade washing, architectural decoration and long-distance linear lighting. |
| Model Reference | L-W-10048-220V-45W-4000K | Confirm final model according to voltage, power, color temperature and control requirement. |
| Voltage | AC220V high voltage | Useful for long building runs, but installation should follow local electrical safety rules. |
| Power Options | 24W/m, 48W/m, 96W/m | Higher power gives stronger output but requires better heat dissipation and power planning. |
| LED Quantity | 48 LEDs/m, one-row or two-row structure | Two-row versions can provide stronger light output for larger facade surfaces. |
| LED Power | 1W / 2W / 4W LED options | Choose based on required projection distance and brightness level. |
| Beam Angle | 60 degree lens | A practical angle for wall washing where balanced spread and intensity are required. |
| Color Temperature | 3000K / 4000K / 6000K / custom | Warm white, neutral white and cool white can create different architectural moods. |
| Housing | 6603 aluminum alloy | Aluminum housing supports heat dissipation and outdoor fixture durability. |
| Product Size | L1000 x W68 x H66 mm | Confirm mounting space, bracket position and installation clearance before ordering. |
| Connector | 2-pin male input and female output | Confirm cable direction, connector type and end cap treatment according to project layout. |
| Certification | CE, RoHS | Useful for export projects and professional procurement documentation. |
| Working Temperature | -20℃ to 60℃ | Check project climate, mounting environment and ventilation condition. |
Product Structure and Optical Details
These images are useful for engineers, contractors and distributors because they show the real fixture body, optical lens, internal LED board, cable connection and aluminum profile structure.
Full-length product view for checking fixture body, cable direction and installation planning.

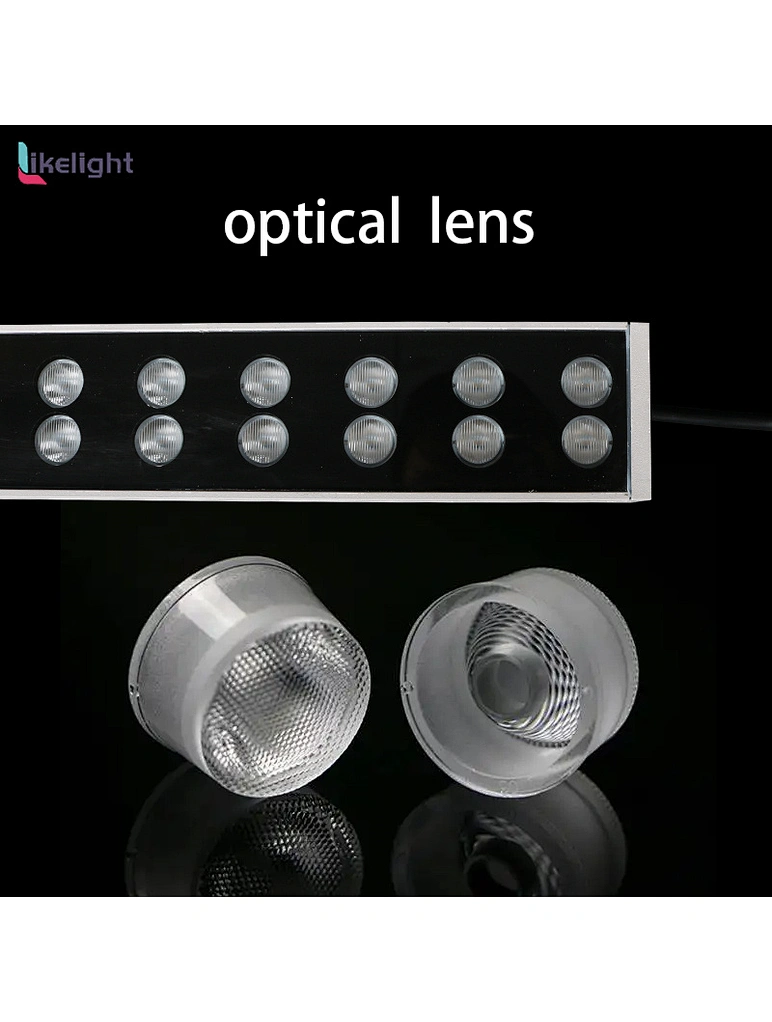

Optical lens reference for understanding beam control and wall washing effect.
Internal board and connector detail for checking structure before sample approval.
Beam Effect and Lighting Output Reference
For facade projects, a wall washer must create usable light on the actual surface, not only look good as a product photo. These effect images help buyers evaluate beam spread and real white light output.

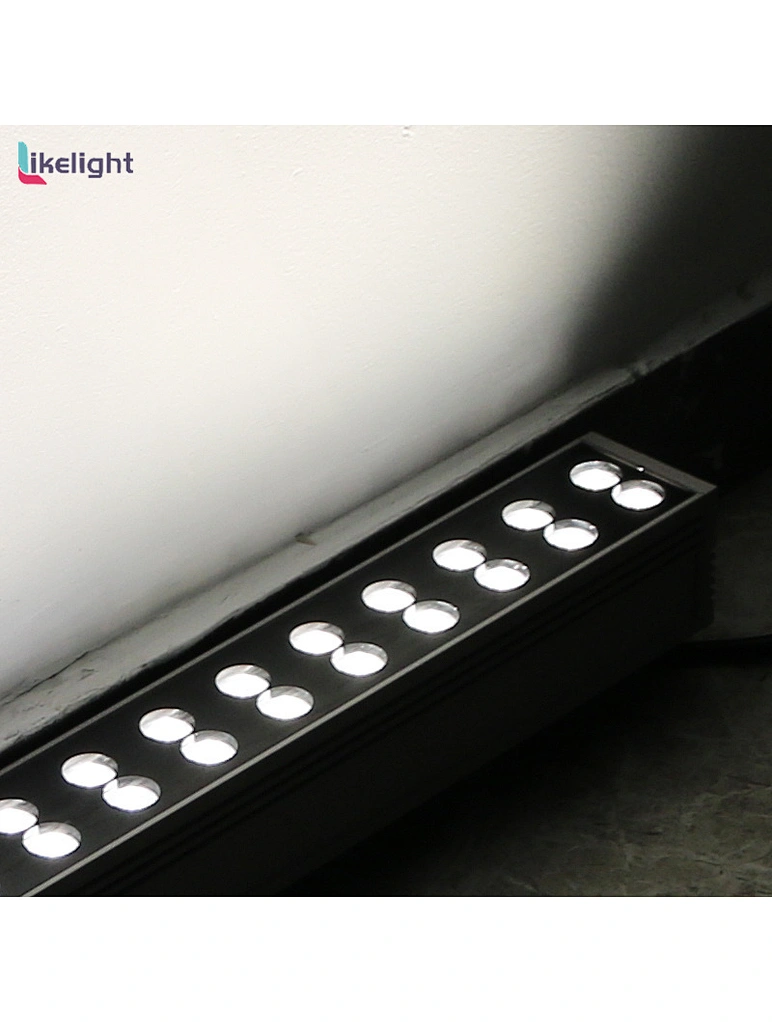

White light output test for checking brightness and fixture beam direction.
Wall beam reference for evaluating spread, distance and surface coverage.
Real Outdoor Application Scene
Building Facade Lighting
In real projects, LED wall washer lights are often installed at the bottom, edge or structural line of a building to project light onto the facade surface. This creates a stronger architectural presence at night and helps commercial buildings, hotels, bridges and public spaces stand out from the surrounding environment.
Before ordering, buyers should provide wall height, installation distance from the wall, required brightness level, color temperature, fixture length, wiring plan and power input position.
How to Choose the Right Power Level
24W/m
Suitable for softer architectural lighting, closer wall distance, decorative outlines and projects where lower power consumption is preferred.
48W/m
A balanced choice for many commercial facade projects. It provides stronger output while keeping power and heat under practical control.
96W/m
Used when stronger brightness is required, especially for larger walls or more visible outdoor lighting. Confirm heat dissipation, mounting method and power supply plan carefully.
Color Temperature Selection
The same building can look very different under different color temperatures. For B2B projects, color temperature should match the building material, brand image and surrounding environment.
3000K Warm White
Creates a warm, premium and comfortable atmosphere. Common for hotels, resorts, restaurants and commercial buildings.
4000K Neutral White
Provides a clean and balanced appearance. Suitable for office buildings, public projects and modern architecture.
6000K Cool White
Creates a brighter and sharper visual effect. Suitable for projects that require strong visibility and a modern look.
Aluminum Housing and Installation Reference
Outdoor wall washer lights should not be selected only by wattage. Housing size, heat dissipation, cable entry and mounting structure directly affect long-term reliability.
Aluminum profile and cable entry reference for installation and heat dissipation review.
Installation Planning Notes
For facade lighting projects, confirm the mounting distance from the wall, bracket angle, cable outlet direction, available power input position and whether the fixture will be exposed to rain, dust or high humidity. Waterproof grade should be confirmed according to the final product configuration and project environment.
Information to Confirm Before Ordering
Need a Wall Washer Solution for Your Building Project?
Send your project drawings, wall height, installation distance, required color temperature, voltage, power level and order quantity. Like Light can help confirm the suitable LED wall washer configuration before production.
FAQ
Is this LED wall washer suitable for outdoor building lighting?
Yes. It is designed for outdoor architectural lighting applications such as building facades, bridges, canopies and commercial decoration projects. The final waterproof grade should be confirmed according to the exact order configuration.
Which power should I choose: 24W/m, 48W/m or 96W/m?
24W/m is suitable for softer lighting and closer distance. 48W/m is a balanced option for many facade projects. 96W/m is suitable when stronger output is required, but heat dissipation and installation conditions should be checked.
Can I choose different color temperatures?
Yes. The product page lists 3000K, 4000K, 6000K and custom color temperature options. Warm white, neutral white and cool white can be selected according to the building material and project style.
Does this product support RGB, RGBW or DMX512?
The product title mentions RGB, RGBW and DMX options, but the listed parameter table mainly shows white color temperature options. If the project needs RGB/RGBW or DMX512 control, confirm the exact version before ordering.
What project information should I send for quotation?
Please send wall height, installation distance, required brightness, color temperature, voltage, total length, quantity, wiring layout, cable direction and whether dynamic control is required.
