Does GS8208 Data Backup Reduce Pixel-Strip Maintenance?
For a hard-to-reach animated sign, one failed LED should not automatically take the rest of the effect down. A GS8208 strip with a backup data path is worth evaluating when pixel animation and service access matter. For a simple one-colour run, compare the installed cost of a simpler system first.
30-second selection answer
- Shortlist it for: RGB pixel animation on a high or difficult-to-service run where a downstream blackout would be costly.
- Know its boundary: Backup data is not backup power. A lost feed, open connector, water ingress or adjacent failures need separate protection and testing.
- Pause the order if: The exact W/m, controller and wiring, ordered protection option and connector construction are absent from the quote.
Send the mounting location, approximate lengths and intended animation first; ask LIKELIGHT whether a representative sample is sensible.
What does the backup path actually protect?
LIKELIGHT describes GS8208 dual-data routing so downstream LEDs can keep receiving data after one pixel fails. The failed LED does not repair itself; the feature addresses one break in the data chain.
For a hypothetical high sign that needs a lift to repair, keeping downstream animation may justify system expense. For a removable one-metre display, compare a simpler control system first. These are buying examples, not completed projects.
Which faults still stop the show?
Loss of power, an unplugged connector, a broken cable, water ingress or neighbouring failures are not the same as a single pixel-chip fault. The product page does not publish a full fault-test matrix.
Test a representative sample with one pixel fault, then a disconnected feed and connector. Record how much of the run actually goes dark; a normal animation demo is not a resilience test.
What does 60 LEDs/m mean for control?
The page lists 60 LEDs per metre and individual RGB control. A pixel is a separately programmable point, not a power circuit or necessarily a cutting unit.
If the content only changes colour as one zone, programming every point may add no buyer value. For close-up chases, view a sample at the real distance and include pixel mapping in the controller quote.
Compare installed cost, not reel price
This page leaves W/m and PCB width as placeholders, so it cannot size the selected supply or prove a five-metre single-end feed. Twelve volts identifies supply voltage, not an allowable run length.
Compare strip, controller, driver, circuits, cable, connectors, protection, installation, commissioning and spare sections together. A lift visit or trading interruption can exceed the price difference between reels.
Make the sample prove the buying reason
The listing names IP20, IP65 and IP67 as options, not one protection level for every reel and field joint. The sample should match the order's coating, controller and connectors.
Approve the choice only after checking viewing effect and downstream behaviour after one failed point, power loss and connector loss in the intended installation arrangement.
A five-metre control check, not a power claim
Plan content and controller mapping around 300 points; obtain the exact SKU data before specifying power feeds or cut positions.
Hypothetical five metres of this published 60-LED/m version, with each LED independently controlled. This is not a customer case or a proven power-feed length.
Worked buyer check
-
Control points
Result
5 m × 60 LEDs/m = 300 controllable points.Next action
Ask how the controller maps 300 points; if the whole run only changes together, compare simpler control. -
Nominal LED pitch
Result
1,000 mm ÷ 60 ≈ 16.7 mm between LEDs.Next action
Judge animation at the actual viewing distance. This figure is not a published cutting interval.
Conditional selection
| Project condition | Buying decision |
|---|---|
| High location; pixel animation; costly access | Evaluate the backup-data option and test a representative failure. |
| Easy to replace; whole-run colour only | Compare a simpler system on complete installed cost. |
| Wet or outdoor location | Specify the ordered coating, connectors and field joints; an optional IP label is not a system rating. |
| Existing controller is unknown | Confirm GS8208 protocol, data direction and pinout before assuming RGB compatibility. |
Product fit

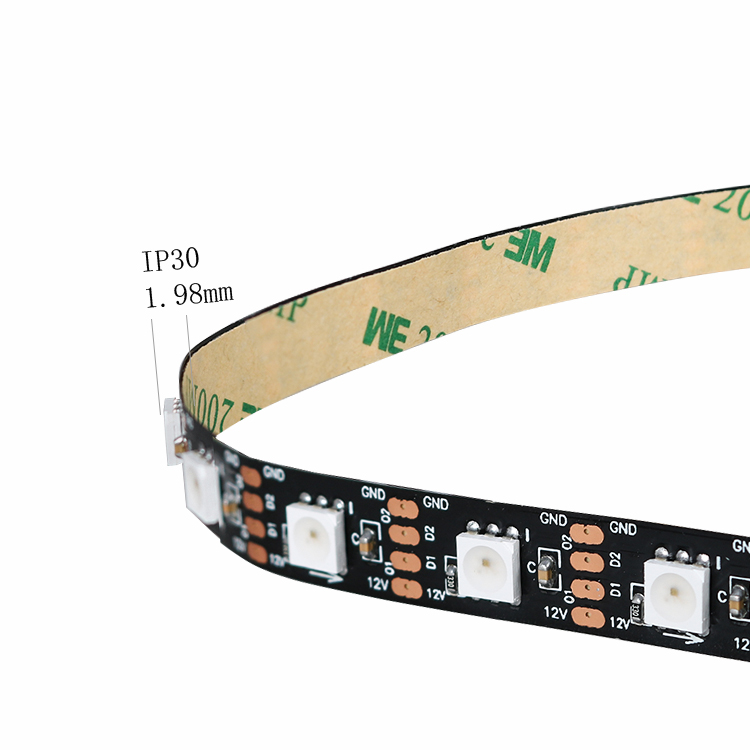

LIKELIGHT lists L-S-GS8208-RGB-10060 as a 12V, 60-LED/m RGB strip with individual control and backup data. It is a candidate when downstream animation after a single-point fault matters, not a maintenance-free promise.
The page does not settle W/m or PCB width for this SKU; protection is optional. Keep the exact strip, controller, feed and enclosure versions aligned in the written quote and sample.
| Parameter | Published value |
|---|---|
| Model | L-S-GS8208-RGB-10060 |
| Supply and colour | DC12V; RGB |
| Density and control | 60 LEDs/m; individual control |
| Signal | GS8208 dual-data path |
| Protection | IP20/IP65/IP67 listed as options |
| Quote-stage items | Exact W/m, PCB width, wiring and coating version |
Prepare a comparable RFQ
- SiteDescribe height, access, exposure and service window.
- Run and effectGive total and section lengths, viewing distance and animation reference.
- Electrical/controlAsk for exact SKU and valid options, W/m, feed layout, controller mapping and wiring drawings.
- Complete costRequest a BOM for strip, supplies, controller, connectors, mounting, spare sections and lead time.
- Sample acceptanceRequest normal-play, single-pixel, power-loss and connector-loss checks.
A useful quote returns the exact SKU, orderable option matrix, dimensions and wiring, BOM, sample plan, acceptance points, full-system price, spares and lead time.
Buyer questions
Will one dead LED always leave the rest running?
The page describes backup data after a single-point failure. Verify the actual fault mode with the chosen controller and sample; power loss is different.
Does 60 LEDs/m mean a 16.7 mm cut interval?
No. That is nominal LED spacing from density. Use the actual PCB pads and drawing for cut positions.
Is an IP67 option enough for outdoors?
Confirm the ordered coating and the protection of connectors, ends and field joints in the installed system.
Prepare a comparable RFQ
Location and service access: [ ]; total and section lengths: [ ]; intended RGB effect: [ ]; existing controller, if any: [ ]; destination country: [ ]. Please return the exact SKU, wiring and feed plan, a complete-system quote, and a sample test for one pixel fault versus power loss.
