Introduction to IC UCS8904
Introduction to IC UCS8904

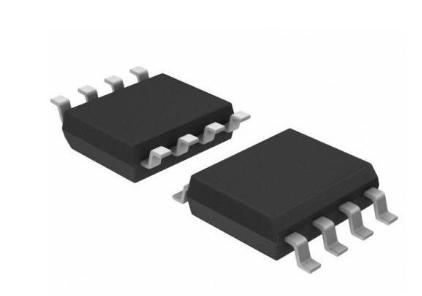

The UCS8904 is a high grayscale (65536 class) /4 channel LED constant current driver IC.
The UCS8904 IC is designed for LED strips and supports RGBW four-color control, namely red, green, blue and white, enabling rich color changes and brightness adjustment. This IC ensures the stability and consistency of the LED strip through the constant current drive technology, so that each LED pixel can present a uniform and delicate color effect.
In addition, the UCS8904 IC has a high grayscale level (65536), which means that it is able to provide smoother color transitions and more delicate color performance, thus meeting the needs of users for high-quality lighting effects. At the same time, its 4-channel design also supports the cascade control of multiple LED strips, so that users can easily build a variety of complex lighting scenes and effects .
UCS8904 IC also has good compatibility and scalability, can be compatible with a variety of controllers and remote controls, convenient for users to set and adjust the lighting effect. At the same time, it also supports a variety of dynamic change modes, such as horse racing, chasing, running water, meteor shower and gradual drift, etc., to provide users with a wealth of lighting effects to choose .
In general, UCS8904 is a powerful and stable LED constant current driver IC, suitable for a variety of occasions requiring high-quality lighting effects, such as landscape lighting, home decoration, commercial display, etc.
In addition, the UCS8904 IC has a high grayscale level (65536), which means that it is able to provide smoother color transitions and more delicate color performance, thus meeting the needs of users for high-quality lighting effects. At the same time, its 4-channel design also supports the cascade control of multiple LED strips, so that users can easily build a variety of complex lighting scenes and effects .
UCS8904 IC also has good compatibility and scalability, can be compatible with a variety of controllers and remote controls, convenient for users to set and adjust the lighting effect. At the same time, it also supports a variety of dynamic change modes, such as horse racing, chasing, running water, meteor shower and gradual drift, etc., to provide users with a wealth of lighting effects to choose .
In general, UCS8904 is a powerful and stable LED constant current driver IC, suitable for a variety of occasions requiring high-quality lighting effects, such as landscape lighting, home decoration, commercial display, etc.
The difference between UCS8904 and WS2818
1.Chip functions and features
- UCS8904: is a 4 channel LED high level gray cascade drive control special circuit, support RGBW four-color control. It uses a variety of patented technologies to strengthen performance indicators and strengthen the protection against high voltage shock and static electricity. The UCS8904 also has 65536 true gray levels to achieve higher-order gray effects, which is ideal for engineering applications with high stability requirements .
- WS2818 (take WS2818B as an example) : is a 3-channel drive control circuit, which contains intelligent digital port data storage and signal shaping amplifier driver circuit. It supports RGB three-color control, each pixel gray level of 256 levels, refresh frequency up to 2KHz. WS2818B has a strong feature in the continuous transmission of signal breakpoints, using dual signal transmission, these signals can work without interacting .
2.working voltage and power management
- UCS8904: chip VDD built-in 5V voltage regulator, output port withstand voltage 28V, with high power adaptability .
- WS2818B: Support 12V power input, built-in voltage regulator, no need for external voltage regulator, simplified power management .
3. Data transmission and cascading capability
- UCS8904: single line data transmission, unlimited cascade, suitable for long distance transmission and large-scale LED strip control .
- WS2818B: Also adopts serial cascade interface, data reception and decoding are completed through a data signal line. However, it should be noted that although the WS2818B performs well in the continuous transmission of signal breakpoints, the number of cascades is still limited by the signal transmission speed .
4.Application scenario
- UCS8904: Due to its high order gray level and strong stability characteristics, it is very suitable for outdoor large screen high order gray level full color effect realization, as well as high stability requirements of engineering applications .
- WS2818B: It is more suitable for occasions requiring high refresh rate and good color effects, such as interior decoration lighting, dynamic lighting effects, etc .
