The difference between 2835 led chip and 5730 led chip
The difference between 2835 led chip and 5730 led chip

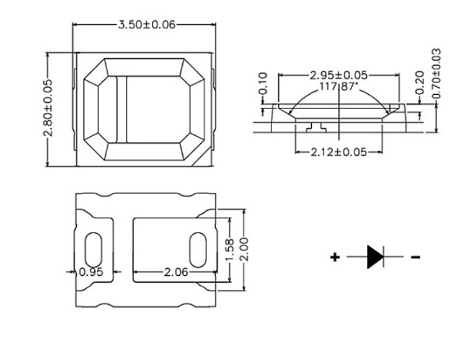

2835 led chip parameters:
- Dimensions : 2.8mm (L) ×3.5mm (W) ×0.8mm (D);
- power : 0.1W, 0.2W, 0.5W, even can be customized as a single 3W;
- voltage : white/blue/green light 2.8-3.6V, red and yellow light 1.8-2.3V;
- current : depending on the power, respectively 30mA, 60mA, 150mA;
- luminous flux : It varies according to power and color, for example, 0.2W white light luminous flux is 20-25LM;
- luminous Angle : generally 120 degrees;
- color : can be used for white light, yellow light, red light, blue light, green and other colors;
2835 lamp bead has an important position in the LED industry because of its high brightness, good heat dissipation performance and a wide range of applications.

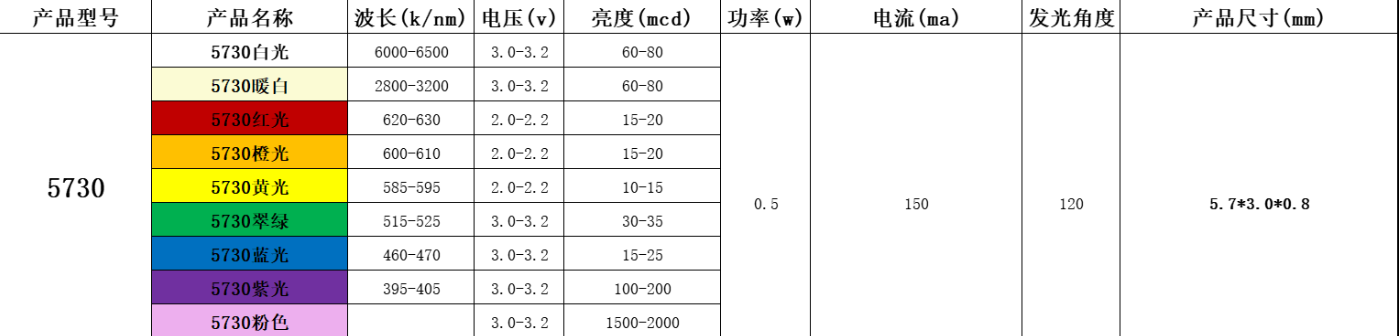

5730 led chip parameters:
- Size : 5.7×3.0×0.8mm;
- single power : 0.5W;
- white color temperature range : warm white 2700-3300K, neutral white 4000-4500K, positive white 6000-6500K, cold white 7000-100000K or above;
- white light brightness : luminous flux 50-75LM;
- color light series : including red light, yellow green light, yellow light, blue light, orange light, green light and so on;
- luminous Angle : 120 degrees;
- Current and voltage : forward current 150mA, forward pulse current 500mA; Forward voltage 3.0-3.4V, reverse voltage 5V;
- Use and storage temperature : -30℃ ~ +80℃;
- Application scenario : indoor and outdoor lighting, landscape lighting, lighting engineering, et
The difference between 2835 led chip and 5730 led chip:
- The smaller size of the 2835 led chip makes it suitable for applications where higher lamp density and more uniform light distribution are required. It has high brightness and low power consumption, suitable for commercial lighting, outdoor lighting and other places that need high brightness. In addition, 2835 led chip usually have a long service life and stable performance .
- 5730 led chip is relatively large, luminous efficiency and heat dissipation performance is better. It is suitable for applications that require a wider irradiation range and stronger beam penetration, such as indoor lighting, street lighting, etc. The 5730 led chip has a higher luminous flux and can provide a brighter and more realistic lighting effect.
- Compared with 2835 lamp beads and 5730 lamp beads, the packaging production of the former bracket is small, the overall cost of the amount of glue 2835 is more cost-effective than 5730 lamp beads, and the price is affordable.
In essence, both 2835 lamp beads and 5730 lamp beads, if the same 0.5W power is selected, the difference is not large, and the two names have advantages customers can choose according to the actual application needs.
