Which connectors are suitable for LED and other products

author: Shally

Which connectors are suitable for LED and other products

There are many types of connectors commonly used in LED products, and the following are some common connector types and their application scenarios:

1. M12 connector

Features: Circular connector, high protection level (usually IP67/IP68), suitable for industrial environment.

Applications: Industrial LED lighting, outdoor LED lamps, sensor connection.

2. M8 connector

Features: Smaller than the M12, suitable for space-constrained applications.

Application: Small LED lamps, compact lighting equipment.

3. M16/M23 connector

Features: Larger than the M12, supports higher currents and more pins.

Applications: High power LED lamps, large LED display.

4. T-type connector

Features: Designed for LED lamp belt, easy to connect and expand the lamp belt.

Application: LED light strip, decorative lighting, indoor and outdoor landscape lighting.

5. JST connector

Features: Compact, suitable for low current applications, easy to plug and unplug.

Applications: Small LED lamps, electronic equipment, LED modules.

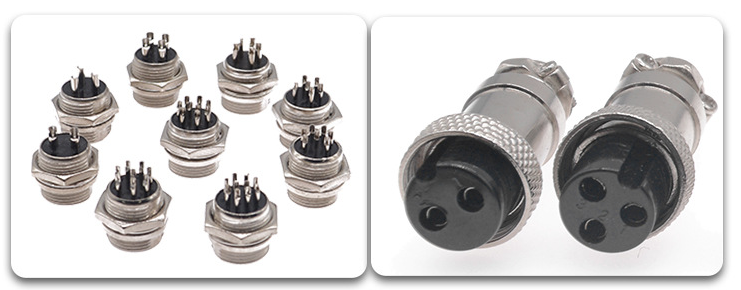

6. GX16/GX20/GX12 aviation plug

Features: Circular connector, good protection performance, suitable for high vibration environment.

Applications: Stage lighting, car LED lighting, high reliability LED equipment.

7. RJ45 connector

Features: Often used in network communication, support data transmission.

Applications: LED display, intelligent lighting system, DMX control system.

8. XLR connector

Features: Often used in audio equipment, but also used in LED lamps for power and data transmission.

Application: stage lighting, film lighting, professional LED equipment.

9. LEMO connector

Features: High reliability, suitable for harsh environments.

Applications: High-end LED lamps, medical lighting, precision equipment.

10. Phoenix Contact connector

Features: Modular design, suitable for industrial applications.

Application: Industrial LED lighting, control system.

11. Anderson Powerpole connector

Features: High current capacity, easy to plug and unplug.

Applications: High power LED lamps, emergency lighting, vehicle LED system.

12. USB connector

Features: strong versatility, suitable for low power equipment.

Applications: LED table lamp, portable lighting, small LED equipment.

13. DC plug/socket

Features: Easy to use, suitable for low power LED equipment.

Applications: LED strip, small lamps, low voltage LED system.

14. SMA connector

Features: High frequency connector, suitable for LED communication system.

Application: LED display, communication equipment.

15. DIN connectors

Features: Standardized design, suitable for industrial applications.

Application: Industrial LED lighting, control system.

16. Push-in connector

Features: Quick installation without tools, suitable for LED strips.

Application: LED strip, decorative lighting.

17. Wire-to-Board connector

Features: Used for circuit board and cable connection.

Application: LED module, PCB board connection.

18. Waterproof connectors

Features: Waterproof design, suitable for outdoor LED applications.

Application: Outdoor LED lighting, landscape lighting.

Considerations for selecting connectors:
Current and voltage: Select the right connector according to the power requirements of the LED product.

Environmental conditions: Outdoor or industrial environments need to choose waterproof, dustproof, corrosion resistant connectors.

Installation method: Consider the installation convenience and space limitation of the connector.

Reliability: High-reliability connectors are suitable for critical application scenarios.
